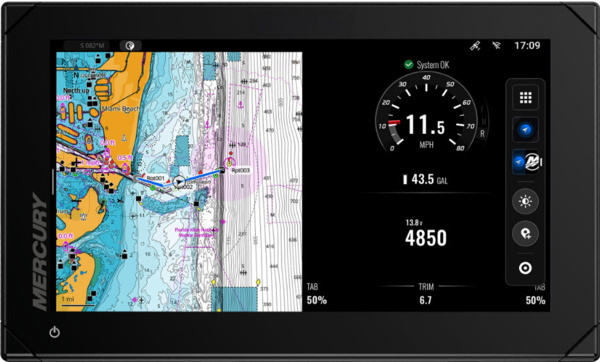

The Mercury VesselView 905 is a next-generation 9-inch marine display designed for faster, smoother access to Mercury SmartCraft engine information, navigation and compatible onboard systems. Its high-definition glass multi-touch screen supports intuitive gesture-based control while providing clear visibility and responsive operation at the helm.
SmartCraft Connect Required: A compatible SmartCraft Connect
Level 2 or Level 3 gateway is required to access Mercury SmartCraft
engine data and propulsion controls. The gateway is sold separately and must be selected
according to the number of engines and installation location.
Next-Generation VesselView Performance
VesselView 905 combines a new customizable operating system with quicker response times
and a more intuitive interface. It retains the essential VesselView functions while making
information easier to arrange and access.
- Faster, smoother user interface
- Customizable screens with easy drag-and-drop functions
- Displays information for up to four engines simultaneously
- Nearly three times faster routing compared with previous-generation displays
- Supports more than 30 engine and vessel parameters
- Built-in Wi-Fi provides notification of available software updates
- Supports 16 languages and multiple unit conversions
Clear, Responsive 9-Inch Display
The bright 16:9 display features a high-definition glass multi-touch screen with a glare-reducing coating. Its multi-touch interface supports intuitive gesture-based control for responsive operation at the helm.
| Display size |
9 inches |
| Resolution |
1280 × 720 pixels |
| Interface |
Multi-touch screen |
| Dimensions |
9.40" W × 5.85" H × 3.17" D
239.0 mm W × 148.5 mm H × 80.6 mm D
|
| Supply voltage |
10–17 VDC |
| Power consumption |
18.8 W |
What’s Included
| Qty. |
Description |
| 1 |
VesselView display |
| 1 |
Sun cover |
| 1 |
Power cable |
| 4 |
Corner clips |
| 1 |
Documentation package and cutout template |
| 1 |
Panel mounting kit |
| 1 |
NMEA 2000 T-connector |
| 1 |
NMEA 2000 harness extension |
Note: SmartCraft Connect, charts, sonar transducers and other network accessories are not included and must be purchased separately.
Engine and Vessel Information
VesselView 905 can display current information for more than 30 available engine and
vessel parameters. Available information depends on the engine, installed sensors and
vessel configuration.
- Engine RPM and operating data
- Fuel level, fuel use and estimated range
- Oil temperature and pressure
- Battery voltage
- Water depth
- Generator information
- Engine faults and alerts
Charting and Navigation
An internal 10 Hz GPS supports charting and navigation without requiring a separate GPS
receiver. VesselView 905 supports the latest C-MAP DISCOVER X charts,
along with compatible third-party charting options such as CMOR Mapping, Florida Marine
Tracks and StrikeLines.
Sonar and System Integration
VesselView 905 integrates with compatible accessories from the Simrad® NSX and NSS 4 product lines, allowing navigation, engine information and supported onboard equipment to be managed from one display.
- One 9-pin XSONIC sonar port
- Single-channel CHIRP sonar
- 50/200 kHz sonar support
- SideScan and DownScan support up to 800 kHz
- One 5-pin Ethernet connection
- Compatible with supported Halo dome and Halo open-array radar systems
- Compatible with supported sonar and fishfinder equipment
- AIS and VHF integration
- SonicHub and Fusion-Link audio integration
- One microSD card slot
- One USB-A port
SmartCraft Connect Compatibility
Level 2: Designed for systems that retain a compatible Simrad® or VesselView display.
Level 3: Provides broader compatibility with supported Garmin®, Raymarine®, Simrad® and Mercury displays without requiring a particular display for activation.
Important compatibility note: VesselView 905 uses SmartCraft Connect rather
than VesselView Link. Compatibility and available functions depend on the engine, gateway,
installed equipment and system configuration. Contact us before ordering if you need help
identifying the correct SmartCraft Connect gateway.
Electronic components are not returnable once opened. Please verify compatibility before
opening the package. Product specifications and part numbers are subject to factory change
or supersession.
