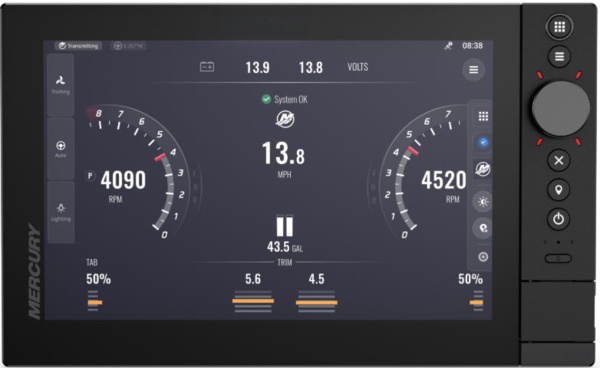

The Mercury VesselView 1005 is a next-generation 10-inch marine display
designed for faster, smoother access to Mercury SmartCraft engine information, navigation
and compatible onboard systems. Its high-definition glass touchscreen and dedicated side
controls provide clear visibility and dependable operation at the helm.
SmartCraft Connect Required: A compatible SmartCraft Connect
Level 2 or Level 3 gateway is required to access Mercury SmartCraft
engine data and propulsion controls. The gateway is sold separately and must be selected
according to the number of engines and installation location.
Next-Generation VesselView Performance
VesselView 1005 combines a new customizable operating system with quicker response times
and a more intuitive interface. It retains the essential VesselView functions while making
information easier to arrange and access.
- Faster, smoother user interface
- Customizable screens with easy drag-and-drop functions
- Displays information for up to 4 engines simultaneously
- Nearly three times faster routing compared with previous-generation displays
- Supports more than 30 engine and vessel parameters
- Built-in Wi-Fi provides notification of available software updates
- Supports 16 languages and multiple unit conversions
Clear, Responsive 10-Inch Display
The bright high-definition display features a glass touchscreen with a glare-reducing
coating. Dedicated side controls provide another convenient way to operate the display in
changing conditions.
| Display size |
10 inches |
| Resolution |
1280 × 800 pixels |
| Interface |
Full touchscreen with side controls |
| Dimensions |
11.33" W × 6.93" H × 3.13" D
287.87 mm W × 176.11 mm H × 79.55 mm D |
| Supply voltage |
10–31.2 VDC |
| Power consumption |
28 W |
What’s Included
|
Qty.
|
Description
|
| 1 |
VesselView display |
| 1 |
Dash gasket |
| 1 |
Sun cover |
| 1 |
Power cable |
| 1 |
Fuse and fuse holder |
| 4 |
Documentation package and cutout template |
| 1 |
Rear mount kit |
Engine and Vessel Information
VesselView 1005 can display current information for more than 30 available engine and
vessel parameters. Available information depends on the engine, installed sensors and
vessel configuration.
- Engine RPM and operating data
- Fuel level, fuel use and estimated range
- Oil temperature and pressure
- Battery voltage
- Water depth
- Generator information
- Engine faults and alerts
Charting and Navigation
An internal 10 Hz GPS supports charting and navigation without requiring a separate GPS
receiver. VesselView 1005 supports the latest C-MAP DISCOVER X charts,
along with compatible third-party charting options such as CMOR Mapping, Florida Marine
Tracks and StrikeLines.
Sonar and System Integration
VesselView 1005 integrates with compatible accessories from the Simrad NSX and NSS 4
product lines, allowing navigation, engine information and supported onboard equipment
to be managed from one display.
- Two 9-pin XSONIC 1 kW sonar ports
- Low-, medium- and high-frequency CHIRP support
- 455/800 kHz DownScan and SideScan support
- Two Ethernet connections: X-coded M12 GbE and 5-pin
- Compatible radar, sonar and fishfinder equipment
- AIS and VHF integration
- SonicHub and Fusion-Link audio integration
- One HDMI video input
- Two microSD card slots
SmartCraft Connect Compatibility
Level 2: Designed for systems that retain a compatible Simrad or
next-generation VesselView display. Level 3: Provides broader compatibility (more flexibility) with supported Garmin, RayMarine, Simrad and Mercury displays without requiring a particular
display for activation.
Important compatibility note: VesselView 1005 uses SmartCraft Connect rather
than VesselView Link. Compatibility and available functions depend on the engine, gateway,
installed equipment and system configuration. Contact us before ordering if you need help
identifying the correct SmartCraft Connect gateway.
Electronic components are not returnable once opened. Please verify compatibility before
opening the package. Product specifications and part numbers are subject to factory change
or supersession.
