8M0124497 VesselView 703 Base Kit Display Display Only for use with existing VesselView Link on multi-display installations.
This is a genuine Mercury Marine factory OEM part. See specifications below and add to cart. Use contact us form at bottom of page for any questions.
Availability: Not in stock - will be transferred from factory
Manufacturer part number: 8M0124497
GTIN: 745061011762
Normally Ships: Warehouse transfer - on 4th business day
Shipping specs, pounds and inches | | | |
MSRP: $1,616.37
$1,472.25
Display only with harness, NMEA2000 T and extension, bezels, sun cover, mounting hardware and gasket.
The VesselView 703 Display Only is for use with an exisitng VesselView Link on multi-display installations. It can also be used for multi-engine or single engine applications. Works with all SmartCraft capable engines 40 HP and up.
Complete VesselView 703 overview video can be found on our YouTube channel here

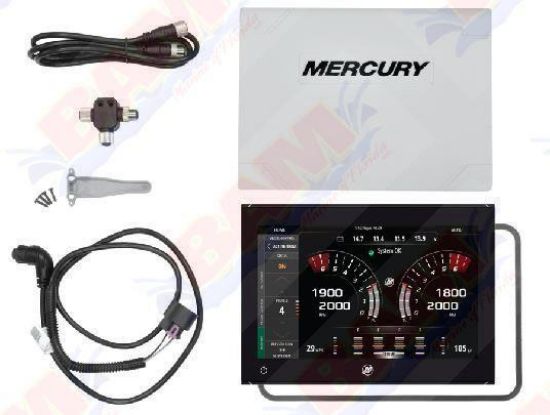

Included in the 8M0124497 VesselView 703 Base Kit:
8M6005011 Sun Cover (Mercury)
8M6005025 Bezel Kit (upper and lower)
NSS 703 Monitor (not sold separately)
8M6005012 Gasket
8M6005013 Door
8M6003966 Fastener Kit (bag of 4 screws)
8M6005102 Rotary Dial
8M0111668 Power Harness
879171T02 Harness Assembly Extension (1000 mm)
8M6004829 Tee NMEA 2000
To order the complete 703 kit, please see related items below.

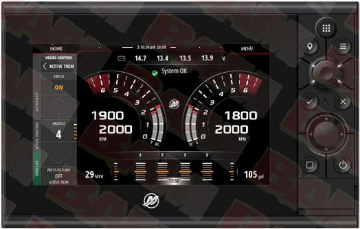

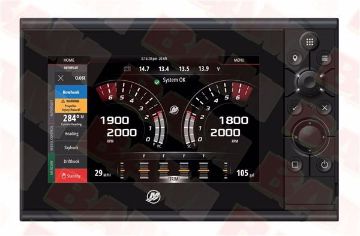

Monitor your engine with new VesselView 703. Precise, reliable control combined with increased clarity, high-definition resolution, wide viewing angles, and enhanced controls for easier operation in all conditions, VesselView 703 incorporates the new Simrad® SolarMAX® HD display. The bright, high-definition glass touchscreen display has a 16 x 9 aspect ratio for higher visibility, glare-reducing coating, and dimmable lighting. The hybrid touchscreen and button interface allows users to choose the display interaction they prefer to use depending on sea state and weather conditions.
The display provides up-to-date information for more than 30 engine parameters, including: Fuel Level & Range, Oil Temperature & Pressure, Battery Voltage, Water Depth, Genset and more. Built-in features include a 10Hz GPS and chart plotter capability (regional electronic chart cards purchased separately).
