Mercury-Mercruiser 8M0110641 VesselView Link Base Kit Multi Engine

Engine data linked to your vessel display. Welcome to the VesselView Link!

Looking for a display that fully integrates with your propulsion system? Mercury’s VesselView Link is the answer. Offered in single engine or multi-engine (2-4 engines) versions, this is your link to all the features SmartCraft has to offer. Available on compatible Lowrance and Simrad displays, you now have all the VesselView information and control capability at your fingertips. With a user interface that’s easy to navigate, you’re able to integrate the following systems into one display.

•     Chart plotter
•     Sonar/fish finder
•     Radar
•     VHF
•     AIS (Automatic Identification System)
•     Sonic Hub/Fusion Link
•     C-Zone Digital Switching

And many more

• Info & Control features - ECO mode, Troll Control in 10 RPM increments, Cruise Control (RPM or Speed based), SmartTow (tow sport launch control system, RPM or Speed based), with customizable user launch profiles and new intuitive interface utilizing the Launch Target curso
• User selectable 16 languages that cover the interface, Descriptive Fault Text, Universal Fault Codes (UFCs) and Maintenance Items (for those engines equipped with this feature)
• Offered as a single engine or multi engine (2-4 engine) interface, a “black box” VesselView that installs under the dash
• Can also Link a Simrad or Lowrance compatible display to the Mercury SmartCraft data and control system which provides the fully integrated and functional Mercury VesselView user interface on those displays
• Simrad NSS evo2 and NSO evo2; Lowrance HDS Gen 2 Touch and HDS Gen 3
• Excellent opportunity for those fisherman with Lowrance displays and Mercury power to get the full VesselView experience where they normally would only rely on analog gauges

Requires SmartCraft capable engines and a compatible display (VesselView502, VesselView702, VesselView 703, VesselView 903, Simrad NSS evo2, NSO evo2, GO Series, Lowrance HDS Gen 2 Touch or HDS Gen 3)

Kit includes:

8M6003865 Fastener Kit (4 Screws)

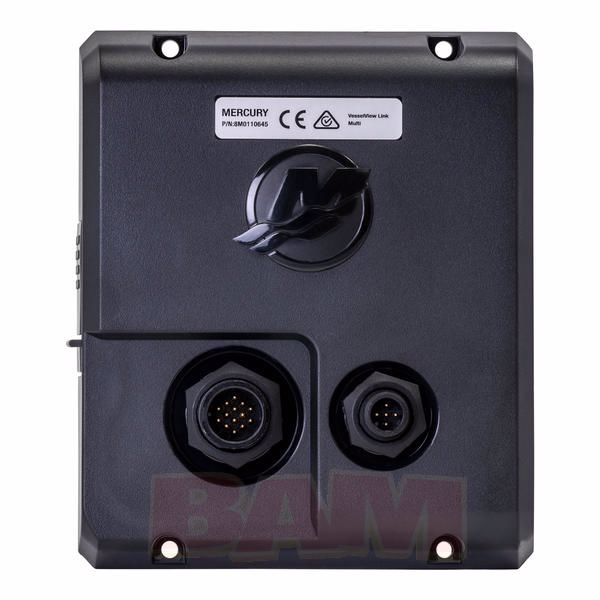

8M0110645 (8M0215002) VesselView Link Module Multi Engine
8M6002266 Tee NMEA 2000
879171T02  Harness Assembly Extension (1000 mm)
8M0111670 Harness VesselView Link

Part numbers subject to change due to factory supersessions.
