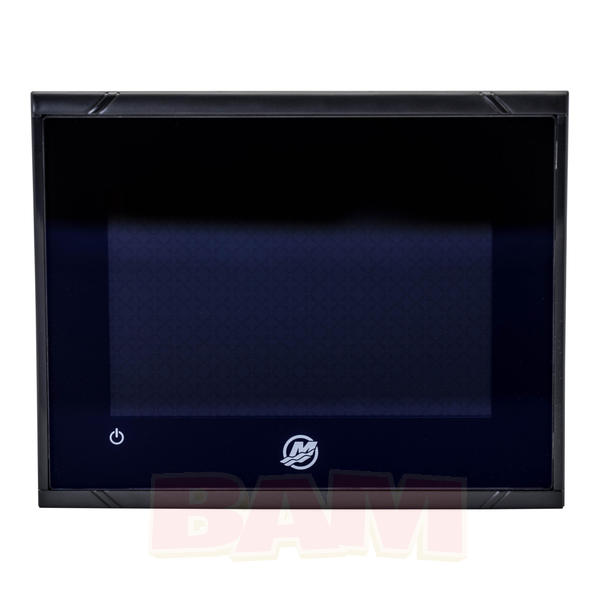

Mercury-Mercruiser 8M0110646 VesselView 502 Multi Engine Kit with VesselView Link

Name: Mercury-Mercruiser 8M0110646 VesselView 502 Multi Engine Kit with VesselView Link
SKU: 8M0110646
Price: 1933.47 USD
Availability: InStock

8M0110646 VesselView 502 Multi Engine Kit w VesselView Link
This is a genuine Mercury Marine factory OEM part, not aftermarket
Please check our current stock level and order below. Use the Contact Us form at the bottom of the page for any questions

Stock status: 1 PIECES ARE IN STOCK

Manufacturer part number: 8M0110646

GTIN: 745061960183

Pickup or normally ships: In stock - Today (except for Holidays)

MSRP: $2,109.11

Web Price: $1,933.47

Product Shipping specifications = pounds and inches
Weight: 7.25	Length: 17.75	Width: 12.00	Height: 11.00

Qty:

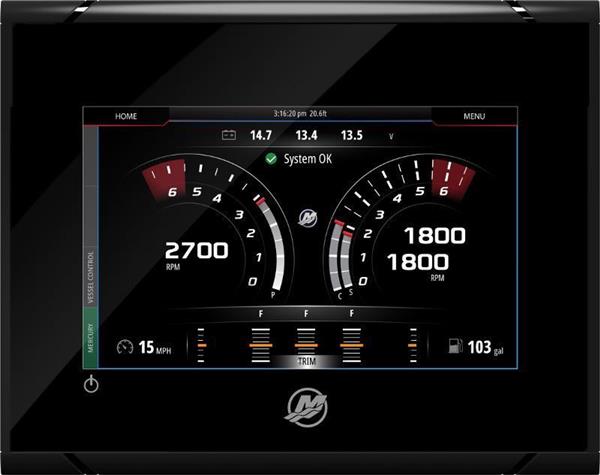

From engine information to vessel systems, the Mercury VesselView502’s 5” screen is your information portal for your boat. Mercury VesselView allows boaters to display engine information, genset, sounder info and much more...

• Features a bright 16x9 aspect ratio, high definition glass touchscreen with glare reducing coating and dimmable lighting

• Features a built in 10Hz GPS and chart platter capability (regional electronic chart cards purchased separately)

• Unique touch only screen interface that delivers intuitive display interaction (optional remote control button interface is available)

• Auto Notification of software updates through the embedded WiFi and Bluetooth capability

• Can be integrated with all the Simrad accessories for the Go5 product line: Radar, Sonar transducers, Fish Finder transducers, AIS, VHF, Sonic Hub/Fusion Link, C-Zone digital switching and more

• Adaptive screen automatically presents information when it is most important

• Descriptive fault text display provides up-to-date information for 30+ engine parameters Including: Fuel Level & Range, Oil Temperature & Pressure, Battery Voltage, Water Depth, Genset and more

• Simultaneous displays information for up to 4 engines in an easy-to-read interface

• Gateway functionality to allow SmartCraft data to be displayed on NMEA 2000 devices

• Supports 16 languages and multiple unit conversions

• Requires Mercury’s VesselView Link to fully integrate the propulsion system and make your multi-function display truly multi-functional (included in the kit)

Works with all SmartCraft capable engines 40 HP and up, dual through quad engine applications. A NMEA2000 backbone is required. Starter kit (backbone) available separately. (see related items)

8M0110644 VesselView 502 Display Kit

NSS 502 Monitor

8M6003707 Sun Cover (Mercury)

8M6003706 Bezel Kit

8M6003818 Gasket - Dash

8M6003915 Door

8M6003966 Fastener Kit (bag of 4 screws)

8M0111669 Power Harness

8M6002266 Tee NMEA 2000

879171T02 Extension Harness Assembly 1000 mm

8M0110641 VesselView Link Base Kit Multi Engine
