Next Generation Gen 2 DTS Controls
Mercury Next Gen (Gen 2) DTS Controls
In 2021 Mercury Marine released new DTS digital controls (ERC's) called "Gen 2" or "Next Gen". Instead of an additional command module (CCM), the CCM is now built into the control saving space under the dash. Rigging has been simplified with color coded and keyed harnesses. This eliminates unused connections and has simplified installation.
The Gen 2 (Next Gen) DTS Controls have integrated features that are now standard such as:
- Start/Stop
- Active Trim -Intuitive hands-free system that continually adjusts engine or drive trim right on your control
- Throttle Only - Enables captain to operate engine throttle without shifting into gear
- Neutral light in the handle
- Quick Steer (for single engine outboard electric steering applications) - Provides rapid steering and more precise throttle control when operating in tight quarters such as when docking.
- Supplemental display (Premier dual-handle version only)
- These new controls will work with engines 2007 and newer only.
GEN 2 DTS CONTROL RIGGING PARTS CAN BE FOUND HERE.
| Control | Description | Part number |
|---|---|---|
| Side / Panel Mount | ||
| Standard | Single-engine panel-mount control with trim | 8M0133237 |
| Quick Steer | With trim; for boats equipped with electric steering | 8M0144227 |
| Bravo Four S | For Bravo Four S surf applications | 8M0189676 |
| Console Mount — Single Engine | ||
| Standard with trim | Single-engine console-mount control with trim | 8M0163917 |
| Quick Steer | With trim; for boats equipped with electric steering | 8M0166584 |
| Without trim | Single-engine console-mount control without trim | 8M0166583 |
| Console Mount — Multiple Engines | ||

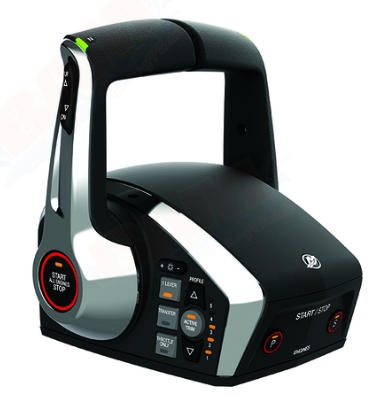

| Dual engine with trim | Standard dual-engine control | 8M0133240 |
| Dual engine without trim | Standard dual-engine control without trim | 8M0133242 |
| Triple engine | Standard triple-engine control with trim | 8M0133244 |
| Quad engine | Standard quad-engine control with trim | 8M0133246 |
| Five or six engines | Control for five- and six-engine applications | 8M0153980 |
| Premier Console Mount | ||
| Dual engine Premier | With trim and an integrated supplemental display | 8M0133243 |
| Triple engine Premier | With trim and an integrated supplemental display | 8M0133245 |
| Quad engine Premier | With trim and an integrated supplemental display | 8M0133247 |
Multiple engine applications will require dealer/technician calibration with a G3 tool to setup the new control.
