8M0165589 Multi Engine SmartCraft Gateway NMEA2000
The Mercury NMEA2000 SmartCraft Gateway converts Mercury engine and system data to NMEA 2000 for use on non‑Mercury gauges and displays for 1 to 4 engines. This is a genuine Mercury Marine factory OEM part, not aftermarket.
Please check our current stock level and order below. Use the Contact Us form at the bottom of the page for any questions!
Availability: 22 in stock
Manufacturer part number: 8M0165589
GTIN: 745061261099
Normally Ships: In stock - Today (except for Holidays)
Shipping specs, pounds and inches | | | |
MSRP: $686.30
$650.45

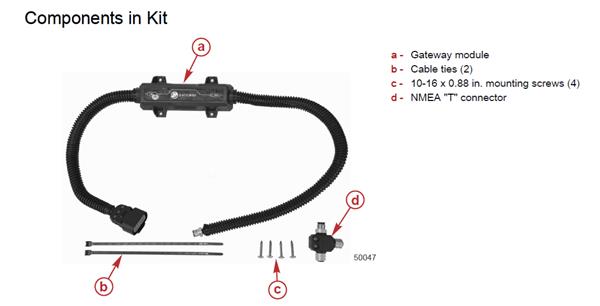

The Mercury NMEA2000 SmartCraft Gateway converts Mercury engine and system data to NMEA 2000 for use on non‑Mercury gauges and displays for 1 to 4 engines. It also converts applicable NMEA2000 data to SmartCraft data for display by applicable SmartCraft gauges and displays. Includes a NMEA 2000 "T" connector for quick installation.
NMEA 2000 Gateway as a Connection:
The Gateway allows SC1000 Tachometer and Speedometer data to be displayed on NMEA 2000 Devices.
This device is used in instances where SmartCraft data is desired on the NMEA 2000 bus. Applies to single through quad engine applications. For multi‑engine installations all engines must be networked on the CAN‑P bus. To ensure proper gateway operation it must be connected to a 10‑pin connection that receives a wake signal from any key switch.
Not required when a MercMonitor, VesselView Link or VesselView 403, 502, 703 or 903 are being used.
IMPORTANT: The Gateway module does not provide power for any device on the NMEA 2000 network. The NMEA 2000 network will require its own power source. The NMEA power input must have appropriate circuit protection for the devices on the NMEA 2000 network.
Superseded from part numbers 98-8M0151748, 8M0141101, 84-8M0105243, 84-8M0065208, 84-8M0065207
If you're looking for the new SmartCraft Connect device, please visit this page.
