Active Trim

Active Trim is Mercury Marine's Patented GPS-based Automatic Trim System.

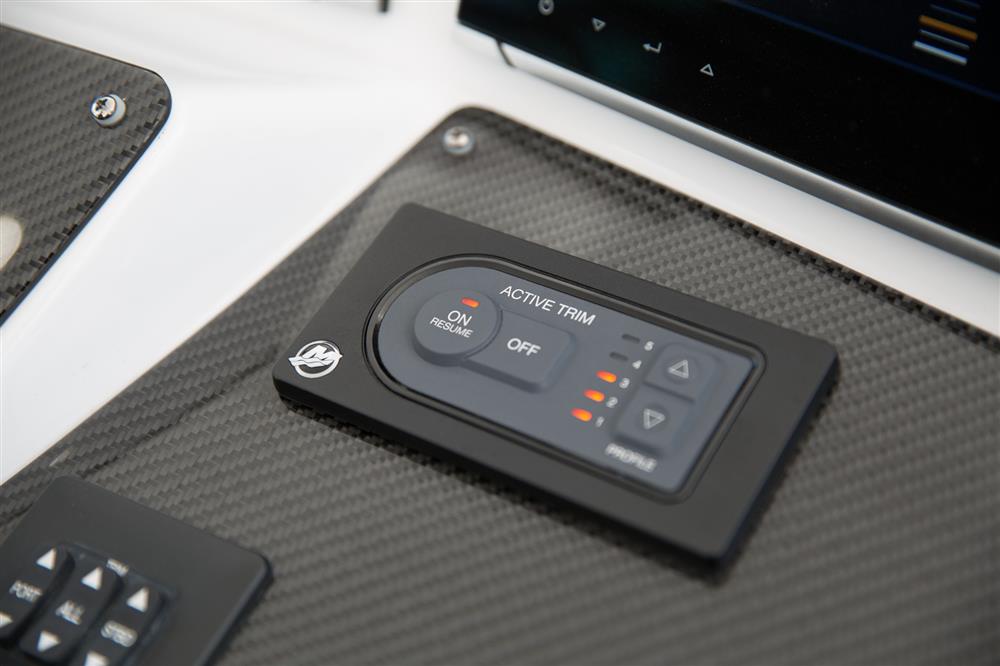

Active Trim dash pad

Active Trim is a speed-based, automatic engine trim system from Mercury Marine. Active Trim provides instant automatic trim for compatible outboards and sterndrives. This intuitive, hands-free system continually adjusts engine trim for changes in operating conditions to improve performance, increase fuel economy and optimize cruising speed at the touch of a button. Active Trim responds to boat maneuvers with precision and delivers a better overall driving experience. No knowledge of trimming an engine is required to utilize Active Trim.

Benefits/How it works:

As the boat accelerates, the engine trims out.
As the boat decelerates, makes a turn, etc., the engine will trim in.
Override the feature at any time by using the manual trim buttons
Active Trim allows the operator to compensate for changes in driver preferences, weather, boat load while maintaining full automatic control.
Controlled by either a dash mounted key pad or a current Vesselview multifunction display

Active Trim is compatible with:

Mercury 4-stroke Outboards from 40 - 400 HP
Mercury SmartCraft Capable 2 stroke outboards
Mercury SmartCraft capable gas and diesel sterndrive engines with digital trim senders

Outboard Engine Compatibility

Model	Serial Range
30-40 hp (3 cyl) EFI FourStroke	1C456300 and above
40-60 hp (4 cyl) EFI FourStroke	1C453840 and above
75-115 hp EFI FourStroke	1B366823 and above
75-125 hp Optimax	All
150 hp FourStroke	All
V6 Optimax	0T178500 and above
V6 EFI TwoStroke	0T409000 and above
Verado	1B381712 and above (must have command module version 80 or higher)
Joystick Piloting models	Must have CCM13 software or newer

NOTE: Not all engine models come from the factory with a digital trim sensor. In some cases, a trim sensor or conversion kit may need to be installed.

MerCruiser Engine Compatibility

Model	Serial Range
Mechanical models	All models with digital trim sensor
DTS models	Must have command module version 80 or higher
Joystick Piloting models	Must have CCM13 software or newer

Additional parts may be required with kits depending on your boats rigging. Kits may include the Active Trim pad, ECU, harness and if necessary, digital trim sender. Part numbers are specifc to engine families, so please check with us by using the Contact Us tab below with your engine serial number to make sure you're ordering the correct part.

Lookup your Active Trim part numbers below then click the part number for more details.

Mercury Part #	Part Description
DTS ENGINES
8M0111544	Active Trim DTS - Outboard & MerCruiser - 1-4 Engines
8M0129437	Active Trim DTS - Outboard & MerCruiser - No Dash Pad - 1-4 Engines

8M0113442	Active Trim RACE DTS - Outboard and MerCruiser - 1-4 Engines
8M0129438	Active Trim RACE DTS - Outboard and MerCruiser - No Dash Pad - 1-4 Engines

MECHANICAL ENGINES
8M0111545	Active Trim 3.4L V6, 4.6L V8, 150 HP 4 Stroke, Optimax 150-250 HP (tiller excluded)
8M0129439	Active Trim 3.4L V6, 4.6L V8, 150 HP 4 Stroke, Optimax 150-250 HP (tiller excluded) - No Dash Pad
8M0111552	Active Trim 150 HP FourStroke / 150 - 250HP OptiMax - Dual Engine
8M0129440	Active Trim 150 HP FourStroke / 150 - 250HP OptiMax - Dual Engine - No Dash Pad
8M0111546	Active Trim 75 - 115 HP FourStroke (tiller excluded)
8M0129442	Active Trim 75 - 115 HP FourStroke (tiller excluded) - No Dash Pad
8M0111553	Active Trim 75 - 115 HP FourStroke - Dual engine
8M0129456	Active Trim 75 - 115 HP FourStroke - Dual engine - No Dash Pad
8M0111547	Active Trim 40 - 60 HP FourStroke (tiller excluded)

8M0111550	Active Trim 4.5 & 6.2L 300/350 HP MerCruiser with digital trim sender - single engine
8M0129457	Active Trim 4.5 & 6.2L 300/350 HP MerCruiser with digital trim sender - single engine - No Dash Pad
8M0111554	Active Trim 4.5 & 6.2L 300/350 HP MerCruiser with digital trim sender - dual engine
8M0129458	Active Trim 4.5 & 6.2L 300/350 HP MerCruiser with digital trim sender - dual engine - No Dash Pad
8M0112041	ACTIVE TRIM DASH PAD ONLY
