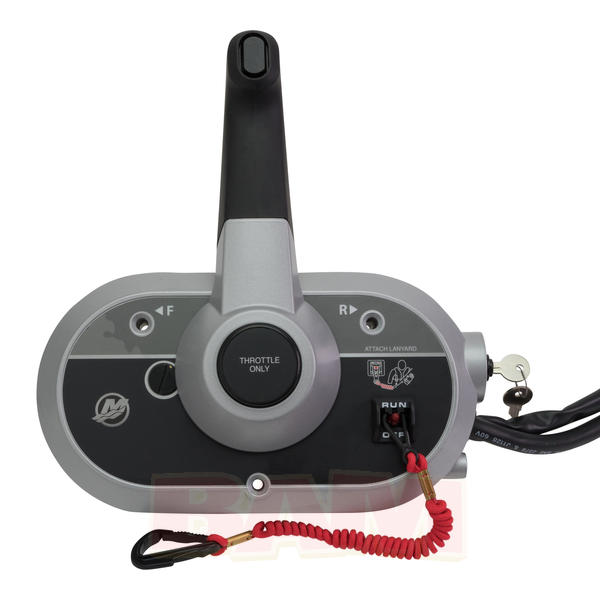

Mercury-Mercruiser 8M0103451 Side Mount Control No Trim 14 Pin

Genuine OEM Mercury Marine part number 8M0103451 Genuine OEM Mercury Marine part number 8M0103451 Mercury Marine 8M0103451 Side Mount Remote Control Bar codes for Mercury Marine part number 8M0103451
8M0103451 Remote Control Non Trim 14 Pin Side Mount
This is a genuine Mercury Marine factory OEM part, not aftermarket
Please check our current stock level and order below or use the Contact Us form at the bottom of the page for any questions
Availability: Not in stock - will be transferred from factory
Manufacturer part number: 8M0103451
GTIN: 678633191404
Normally Ships: Warehouse transfer - on 4th business day
Shipping specs, pounds and inches
MSRP: $502.18
$465.04

MSC 4000 Side Mount Electric, Non-Power Trim 14 Pin Side Mount Remote Control

This control features a non-trim handle and a 15 ft. (4.58 M) harness with Amp connector and will direct connect to the engine models below without the use of an Adapter harness.
Fits: Model year 2005 and newer, 8/9.9, 15/20 HP FourStroke Outboards with electric start and non‑trim.

Model year 2005 and newer 8/9.9 FourStroke Outboards SAE throttle/shift cables must be used.

8/9.9 FourStroke engines generation change above serial # OR192772 and 15/20 FourStroke engines will use GEN I cables.

GEN II cables must be used on other engines. See our Throttle and Shift Cable page for new cables

Can be mounted starboard or port side and are stackable. Offers "push to choke" ignition switch, 8 pin connector wiring harness, lanyard stop switch, separate neutral warm‑up lever and requires Gen I throttle and shift cables. All controls have a 5 pin accessory plug for tachometer and an adjustable throttle friction. Not for use with engines that have counter rotating lower units.

Older engines may require an adapter harness.

MSC 4000 Side Mount Electric, Non-Power Trim 14 Pin Side Mount Remote Control

This control features a non-trim handle and a 15 ft. (4.58 M) harness with Amp connector and will direct connect to the engine models below without the use of an Adapter harness.
Fits: Model year 2005 and newer, 8/9.9, 15/20 HP FourStroke Outboards with electric start and non‑trim.

Model year 2005 and newer 8/9.9 FourStroke Outboards SAE throttle/shift cables must be used.

8/9.9 FourStroke engines generation change above serial # OR192772 and 15/20 FourStroke engines will use GEN I cables.

GEN II cables must be used on other engines. See our Throttle and Shift Cable page for new cables

Can be mounted starboard or port side and are stackable. Offers "push to choke" ignition switch, 8 pin connector wiring harness, lanyard stop switch, separate neutral warm‑up lever and requires Gen I throttle and shift cables. All controls have a 5 pin accessory plug for tachometer and an adjustable throttle friction. Not for use with engines that have counter rotating lower units.

Older engines may require an adapter harness.

*
*
*
*
