Mercury VesselView Comparison Chart & Buying Guide
Compare Mercury VesselView marine displays, screen sizes, specifications and system requirements to determine which model is best for your Mercury outboard, MerCruiser or Mercury Diesel application. Mercury’s Next Generation VesselView lineup includes the 7-inch VesselView 705, 9-inch VesselView 905 and 10-inch VesselView 1005. The new VesselView 1005 expands the lineup beyond the previous 9-inch maximum, providing a larger 10-inch touchscreen for viewing engine data, charts, sonar and supported onboard systems.
VesselView is a comprehensive boat information center that displays available engine and vessel information such as RPM, fuel use, operating temperatures, battery voltage, trim, faults, water depth, tank levels and other supported parameters. Available information and controls depend on the engine, installed sensors, rigging and system configuration.
Please keep in mind: VesselView requires a compatible SmartCraft-enabled engine. All VesselView displays include interfaces for Smart Tow, Active Trim and Troll Control when those functions are supported by the engine and required equipment.
Check whether your engine is SmartCraft compatible before selecting a VesselView display →
Next-Generation VesselView Displays
VesselView 705, 905 and 1005 feature a faster, smoother and more customizable operating system. All three models will simultaneously display up to four engines and include internal 10 Hz GPS, built-in Wi-Fi, advanced charting and integration with compatible marine electronics.
| Feature | VV705 | VV905 | VV1005 |
|---|---|---|---|
| Part number | 8M0246768 | 8M0246771 | 8M0246776 |
| Display size | 7 inches | 9 inches | 10 inches |
| Resolution | 1024 × 600 | 1280 × 720 | 1280 × 800 |
| Interface | Multi-touch screen | Multi-touch screen | Full touchscreen with side controls |
| Maximum engines displayed | 4 | 4 | 4 |
| Dimensions | 7.68" W × 4.84" H × 3.13" D | 9.40" W × 5.85" H × 3.17" D | 11.33" W × 6.93" H × 3.13" D |
| Supply voltage | 10–17 VDC | 10–17 VDC | 10–31.2 VDC |
| Power consumption | 11.5 W | 18.8 W | 28 W |
| Internal GPS | 10 Hz | 10 Hz | 10 Hz |
| Charting | C-MAP DISCOVER X | C-MAP DISCOVER X | C-MAP DISCOVER X |
| Sonar ports | One 9-pin XSONIC | One 9-pin XSONIC | Two 9-pin XSONIC, 1 kW |
| Ethernet | One 5-pin port | One 5-pin port | Two ports: X-coded M12 GbE and 5-pin |
| External storage | One microSD slot | One microSD slot | Two microSD slots |
| USB | None | One USB-A port | None |
| Video input | None | None | One HDMI input |
| Required SmartCraft integration | SmartCraft Connect Level 2 or 3 | SmartCraft Connect Level 2 or 3 | SmartCraft Connect Level 2 or 3 |
Sonar, radar, charts and other accessories are sold separately. Compatibility and available functions depend on the installed equipment and system configuration.
Choose the Correct SmartCraft Connect Gateway
All three next-generation VesselView displays can use a compatible SmartCraft Connect Level 2 or Level 3 gateway. Select the gateway according to the number of engines, installation location and desired display flexibility.
| Engine configuration | Installation | Level 2 | Level 3 |
|---|---|---|---|
| Single engine | Under cowl | 8M0235016 | 8M0173704 |
| Single engine | Under helm | 8M0235017 | 8M0173694 |
| One to four engines | Under helm | 8M0235018 | 8M0173703 |
- Choose Level 2 when a compatible Simrad® or VesselView display will remain installed.
- Choose Level 3 for Garmin®- or Raymarine®-only systems, or when broader display flexibility is preferred.
Read the SmartCraft Connect Guide before ordering →
Legacy VesselView Displays

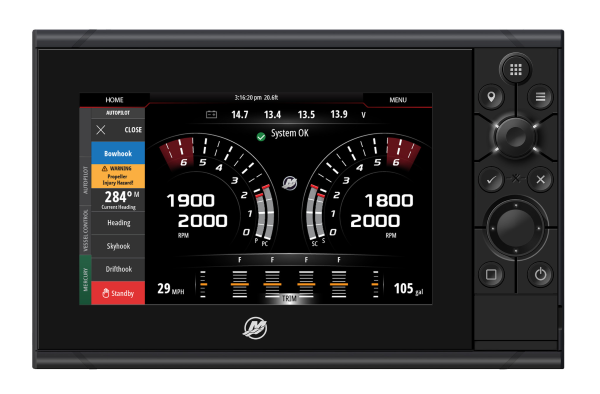

VesselView 403, 502, 703 and 903 displays use the earlier VesselView platform and require the correct VesselView Link or packaged integration components. These models remain useful for existing installations, replacements and compatible legacy systems.
| VesselView feature | 403 | 502 | 703 | 903 |
|---|---|---|---|---|
| Maximum engines displayed | 2 | 4 | 4 | 4 |
| Touchscreen | No | Yes | Yes | Yes |
| Chartplotter | No | Yes | Yes | Yes |
| Internal GPS | No | Yes | Yes | Yes |
| Internal Wi-Fi | Yes | Yes | Yes | Yes |
| Software updates | Wi-Fi/USB | Wi-Fi/microSD | Wi-Fi/microSD | Wi-Fi/microSD |
| Advanced Hooks for Joystick Piloting | No | Available | Available | Available |
| Active Trim control | Yes | Yes | Yes | Yes |
| Smart Tow | Yes | Yes | Yes | Yes |
| Troll Control | Yes | Yes | Yes | Yes |
| Sport Exhaust | Yes | Yes | Yes | Yes |
| Overall size | 4.92" × 4.72" | 6.17" × 4.90" | 8.74" × 5.57" | 9.13" × 6.43" |
| Required engine interface | VesselView Link or the correct packaged integration kit | |||
SmartCraft functions require compatible engines and may require additional controls, sensors, modules or calibration.
