6-641600B Bravo Transom Gimbal Assembly Magnum
Bravo Magnum Transom used with 4.3L, 350, 357, 377, 383, 409, 5.0L, 5.7L, 6.2L , 454, 7.4L, 502, 8.2L non‑DTS engines
This is a genuine Mercury Marine factory OEM part, not aftermarket
Please check our current stock level and order below or use the Contact Us form at the bottom of the page for any questions.
Manufacturer part number:
Pickup or normally ships:
Warehouse transfer - on 2nd-7th business day
Product Shipping specifications = pounds and inches

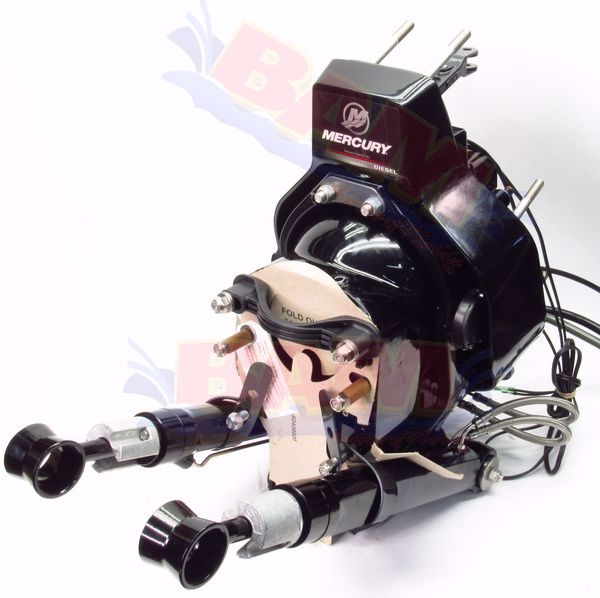

6-641600B Bravo Magnum Transom/Gimbal Housing Assembly Diesel or Gas - Has Diesel Sticker
Also called gimbal housing assembly. For replacement of entire transom assembly which includes the bell housing, trim cylinders, gimbal ring, etc.
Completely interchangeable with 6311002NZ Bravo Magnum Transom with 2 wire analog trim sender.
Used with all 4.3L, 5.0L, 5.7L, 350, 357, 377, 383, 409, 6.2L, 454, 7.4L, 502, 8.2L Bravo non‑DTS engines.
Full 1 year factory warranty.
In most cases is less expensive to replace instead of repair a transom especially when labor is figured in.
This transom is the latest design with improved water flow and exahust tube instead of exhaust bellows.
- Inner transom plate
- Gimbal housing
- Bell housing
- Steering pin & lever
- U Joint Bellows
- Exhaust tube
- Gimbal bearing
- Trim cylinders
- Shift cable
As a bonus also has stainless steel transom studs.
Note: Has diesel sticker but is interchangeable with gas or diesel.
