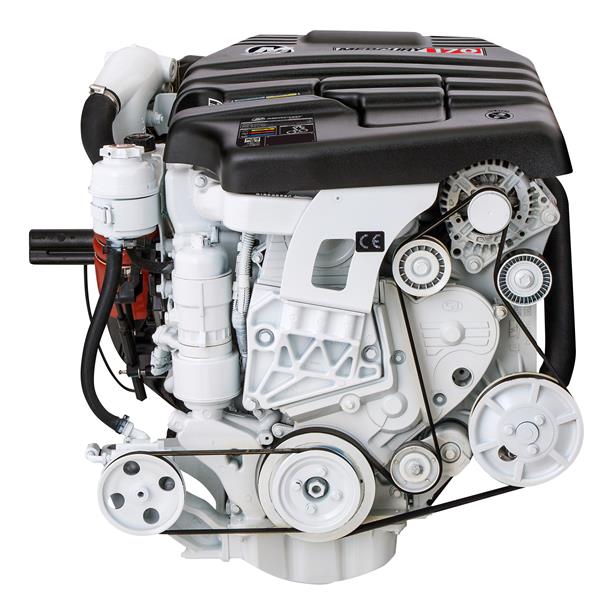

MERCURY DIESEL 2.0L (Tier 3) Robust and Reliable Combines reliable power with a compact, robust design.
Manufacturer part number: 40200005U
Availability: In stock
Normally Ships: In stock - Same business day
Shipping specs, pounds and inches
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Contact us for price

SPECIFICATIONS

Power mhp / kW
  • 172.4 / 127
Maximum RPM (WOT)
  • 4000
Engine type
  • Inline 4
Displacement (L)
  • 2.0
Weight (engine only)
  • 582 lbs / 264 kg
Weight (incl. transmission)
  • 637 lbs / 289 kg
Weight - Alpha
  • 763 lbs / 346 kg
Weight - Bravo One
  • 802 lbs / 364 kg
Weight - Bravo Two
  • 814 lbs / 369 kg
Weight - Bravo Three
  • 822 lbs / 373 kg
Dimensions (L x W x H)
  • 32 x 30 x 30" / 802 x 710 x 757 mm
Bore and stroke
  • 3.27 x 3.62" / 83 x 92 mm
Cooling system
  • Closed cooling
Fuel consumption
  • 9.6 gal/hr / 36.4 l/hr @ 4000 rpm
Compatible drives
  • Bravo One
  • Bravo Three
  • Bravo Two
Emission
  • BSO 2 RCD 2 IMO 2 EPA Tier 3
