Mercury Diesel 2.0L Alpha Sterndrive Engine

We will be closed Friday, July 3rd for Independence Day

We will process your order on July 6th when we return!

Parts showing “Not in stock - transfer from factory” normally ship in 2–3 business days.

Questions? Please use our Contact Us page.

Picture of Mercury Diesel 2.0L Alpha Sterndrive Engine Picture of Mercury Diesel 2.0L Alpha Sterndrive Engine
2.0 Liter tier 3 TDI diesel
Manufacturer part number: 40200002U to 40200005U
Normally Ships: In stock - Same business day
Shipping specs, pounds and inches
*
Contact us for price
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Power mhp / kW
  • 3 models, 130 to 170 HP
Maximum RPM (WOT)
  • 4000
Engine type
  • Inline 4
Displacement (L)
  • 2.0
Weight (engine only)
  • 582 lbs / 264 kg
Weight (incl. transmission)
  • 637 lbs / 289 kg
Weight - Alpha
  • 763 lbs / 346 kg
Weight - Bravo One
  • 802 lbs / 364 kg
Weight - Bravo Two
  • 814 lbs / 369 kg
Weight - Bravo Three
  • 822 lbs / 373 kg
Dimensions (L x W x H)
  • 32 x 30 x 30" / 802 x 710 x 757 mm
Bore and stroke
  • 3.27 x 3.62" / 83 x 92 mm
Cooling system
  • Closed cooling
Fuel consumption
  • 6.7- 9.6 gal @ 4000 rpm depending on model
Compatible drives
  • Alpha
Emission
  • BSO 2 RCD 2 IMO 2 EPA Tier 3

Mechanical shift or DTS available, sold as engine only or complete Alpha or Bravo X package.

Please contact us for price and availability.



Power mhp / kW
  • 3 models, 130 to 170 HP
Maximum RPM (WOT)
  • 4000
Engine type
  • Inline 4
Displacement (L)
  • 2.0
Weight (engine only)
  • 582 lbs / 264 kg
Weight (incl. transmission)
  • 637 lbs / 289 kg
Weight - Alpha
  • 763 lbs / 346 kg
Weight - Bravo One
  • 802 lbs / 364 kg
Weight - Bravo Two
  • 814 lbs / 369 kg
Weight - Bravo Three
  • 822 lbs / 373 kg
Dimensions (L x W x H)
  • 32 x 30 x 30" / 802 x 710 x 757 mm
Bore and stroke
  • 3.27 x 3.62" / 83 x 92 mm
Cooling system
  • Closed cooling
Fuel consumption
  • 6.7- 9.6 gal @ 4000 rpm depending on model
Compatible drives
  • Alpha
Emission
  • BSO 2 RCD 2 IMO 2 EPA Tier 3

Mechanical shift or DTS available, sold as engine only or complete Alpha or Bravo X package.

Please contact us for price and availability.



Product tags

Related products

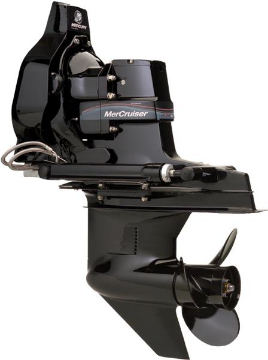

New Alpha One Gen II Drive 1.81 Ratio for sale

Alpha 1 Gen 2 Sterndrive

$4,122.86 $3,834.49
New Genuine Mercury OEM Alpha One Generation 2 outdrive. Gimbal housing with trim cylinders and prop sold separately.

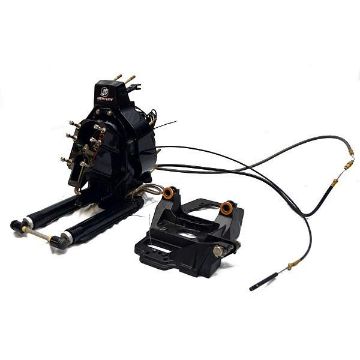

Picture of Alpha 1 Gen 2 Transom assembly
