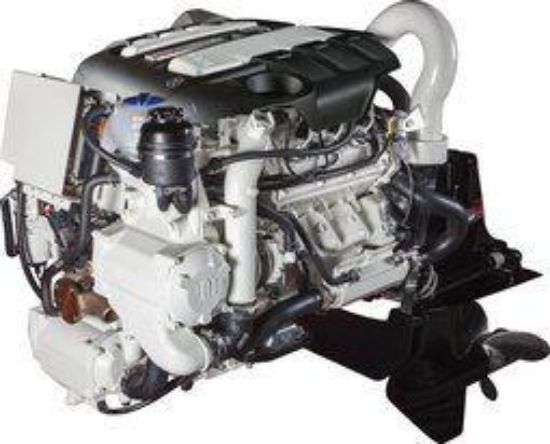

Mercury Diesel 3.0L Bravo Sterndrive Engine

3.0 Liter tier 3 TDI diesel
Manufacturer part number: 4D300009D to 4D300010D
*
Please use the Contact Us tab for pricing & availability
Product Shipping specifications = pounds and inches
Power mhp / kW
  • 260 / 191
Maximum RPM (WOT)
  • 4000
Engine type
  • V-6
Displacement (L)
  • 3.0
Weight (engine only)
  • 675 lbs / 306 kg
Weight (incl. transmission)
  • 771 lbs / 350 kg
Weight - Bravo One
  • 906 lbs / 411 kg
Weight - Bravo Two
  • 922 lbs / 418 kg
Weight - Bravo Three
  • 933 lbs / 423 kg
Dimensions (L x W x H)
  • 35 x 32 x 34" / 927 x 813 x 853 mm
Bore and stroke
  • 3.27 x 3.58" / 83 X 91 mm
Cooling system
  • Closed cooling
Fuel consumption
  • 14.2 gal/hr / 53.7 l/hr @ 4000 rpm
Compatible drives
  • Bravo One
  • Bravo Three
  • Bravo Two
Emission
  • BSO 2 RCD 2 IMO 2 EPA Tier 3

Mechanical shift or DTS available, sold as engine only or complete Bravo X or XR package.

Please contact us for price and availability.
