Mercury-Mercruiser 8M0107462 SmartCraft Trim Sender Kit Analog Digital 3 Wire
This is a genuine Mercury Marine factory OEM part, not aftermarket
Please check our current stock level and order below or use the Contact Us form at the bottom of the page for any questions

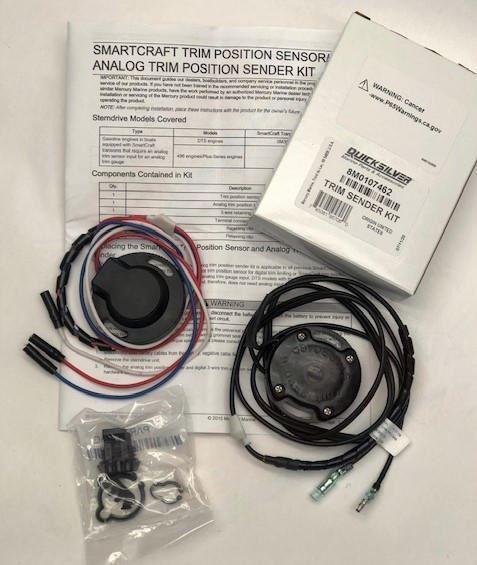

8M0107462 SmartCraft Trim Position Sensor/Analog Trim Position Sender Kit
FITS:
Smartcraft series transom serial numbers 2A417473 and below
DTS Engines: 0M300000 - 2A417473
496 Bravo engines with analog trim gauges: All SmartCraft serial numbers.
Superseded from part #863187A1. This sender has a digital, analog and a ground wire.
Contents:
Description | Part Number |
Analog trim position sender & harness assembly | 805130A10 |
3 Wire trim sensor | 8M0083579 |
Small harness clamp | 818557001 |
Harness clamp | 818557 |
3‑wire connector clip | 831957 |
3‑wire connector | 8307973 |
Install instructions |
Replacing the SmartCraft sensor and sender:
The SmartCraft trim position sensor and analog sender kit is intended for SmartCraft transom assemblies that use a 3 wire trim position sensor for digital trim limiting, or SmartCraft trim position input, and a 2 wire analog trim position sender for analog trim gauge input.
