8M0030551 Gen II Mechanical Panel Mount Control Finger Release Chrome w Trim

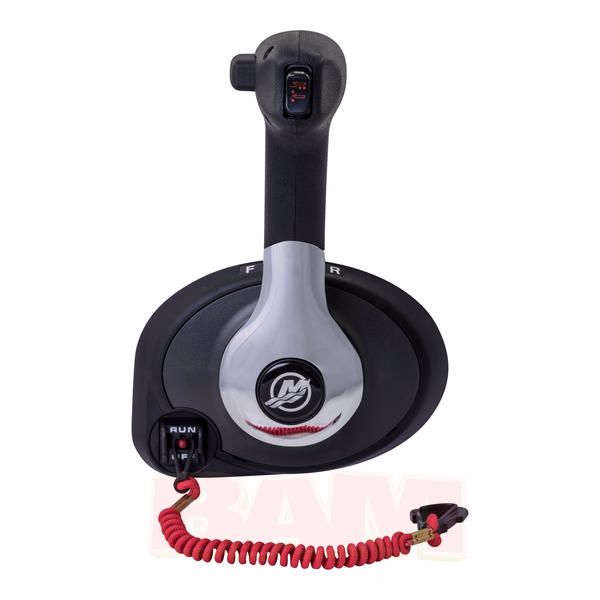

This Panel Mount mechanical control features a chrome handle and comes with a 4 ft. (1.22 m) trim and trailer switch harness with the 4 pin molex connector.
All installations require a separate Ignition/Choke assembly and throttle/shift cables to complete the installation. The neutral safety switch leads are 6.5 ft. (1.98 m) and have a bullet connector on the ends. The lanyard switch leads also have bullet-style connector ends.
Must use Gen II Throttle/Shift cables. Part number series: 897978A__ (choose length)
The power trim extension harness also needs to be ordered separately:
Part #'s 84‑817659T01 & 84‑881125A1 = 4 pin Molex to traditional Mercury 3 blade power trim connector
Part #'s: 84‑865772T01 & 84‑865772T02 = 4 pin Molex to the Packard 3 pin power trim connector.
Fits all current sterndrives and Mercury/Mariner 3.4L outboards with external trim cylinders.
