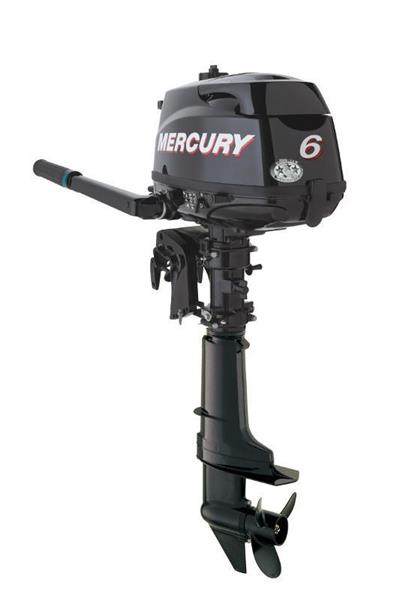

6MH 4 Stroke Portable Tiller Handle Outboard 15"

new fourstroke Mercury 6 HP tiller handle motor for sale manual start 6 MH FourStroke Portable Outboard 2021 Model 5 Year Warranty Bar codes for Mercury Marine part number 1FX6201KK
Mercury 1FX6201KK 6 MH Fourstroke Outboard Tiller Handle Motor. Manual start, short shaft (15”/381mm) driveshaft housing. Tiller handle steering. Easily portable at only 57 lbs. 3 Year warranty. See complete specs below.
Stock status: Not in stock - will be transferred from factory
Manufacturer part number: 1FX6201KK
Pickup or normally ships: Warehouse transfer - on 2nd-7th business day
Manufacturer: Mercury Marine
$2,055.00
$1,870.00
Product Shipping specifications = pounds and inches

6 HP 4 Stroke Mercury Portable Outboard Tiller Handle Motor

Manual start, short shaft (15”/381mm) driveshaft housing. Tiller handle steering. Features integral fuel tanks with an external fuel-shutoff valve. For extended range, they can also be connected to a remote fuel tank. Great for aluminum tiller, inflatable soft hull, jon, utility, and sail boats.

HP / kW
  • 6 / 4.4
Engine type
  • 1 cylinder
Displacement (CID/CC)
  • 7.5 / 123
Full throttle RPM
  • 5000-6000
Fuel induction system
  • 2-valve pushrod (overhead valve)
Recommended fuel
  • 87% octane / up to 10% ethanol
Recommended oil
  • Mercury FourStroke Oil 10W-30
Engine protection operator warning system
  • Low oil pressure
  • Over-rev
Starting
  • Manual
Steering
  • Tiller
Shaft length
  • 15" / 381 mm
Gearcase ratio
  • 2.15:1
Dry weight *Lightest model available
  • 57 lbs / 26 kg
CARB star rating
  • 3
Bore and stroke
  • 2.32 x 1.77" / 59 x 45 mm
Ignition
  • CDI w/electronic spark advance
Fuel system
  • Carbureted
Cooling system
  • Water-cooled with thermostat
Gear shift
  • F-N-R
Gearcase options
  • Standard
Trim positions
  • 6
Exhaust system
  • Through prop
Shallow water drive
  • Yes
Shallow water trim range (degrees)
  • 16
Integrated fuel tank (gal/ L)
  • 0.3 / 1.1
Optional fuel tank (gal/L)
  • 3.2 / 12
Color
  • Phantom Black



6 HP 4 Stroke Mercury Portable Outboard Tiller Handle Motor

Manual start, short shaft (15”/381mm) driveshaft housing. Tiller handle steering. Features integral fuel tanks with an external fuel-shutoff valve. For extended range, they can also be connected to a remote fuel tank. Great for aluminum tiller, inflatable soft hull, jon, utility, and sail boats.

HP / kW
  • 6 / 4.4
Engine type
  • 1 cylinder
Displacement (CID/CC)
  • 7.5 / 123
Full throttle RPM
  • 5000-6000
Fuel induction system
  • 2-valve pushrod (overhead valve)
Recommended fuel
  • 87% octane / up to 10% ethanol
Recommended oil
  • Mercury FourStroke Oil 10W-30
Engine protection operator warning system
  • Low oil pressure
  • Over-rev
Starting
  • Manual
Steering
  • Tiller
Shaft length
  • 15" / 381 mm
Gearcase ratio
  • 2.15:1
Dry weight *Lightest model available
  • 57 lbs / 26 kg
CARB star rating
  • 3
Bore and stroke
  • 2.32 x 1.77" / 59 x 45 mm
Ignition
  • CDI w/electronic spark advance
Fuel system
  • Carbureted
Cooling system
  • Water-cooled with thermostat
Gear shift
  • F-N-R
Gearcase options
  • Standard
Trim positions
  • 6
Exhaust system
  • Through prop
Shallow water drive
  • Yes
Shallow water trim range (degrees)
  • 16
Integrated fuel tank (gal/ L)
  • 0.3 / 1.1
Optional fuel tank (gal/L)
  • 3.2 / 12
Color
  • Phantom Black



Products specifications
Power 6
Shaft Length 15
Starting Manual
Control Type Tiller Handle
Command Thrust (Big Foot) No
Rotation Standard
Pro XS No
Pro Kicker No
Trim & Tilt Manual
Fuel tank included Internal
Propeller included Yes
*
*
*
*
Products specifications
Power 6
Shaft Length 15
Starting Manual
Control Type Tiller Handle
Command Thrust (Big Foot) No
Rotation Standard
Pro XS No
Pro Kicker No
Trim & Tilt Manual
Fuel tank included Internal
Propeller included Yes
