Mercury Outboard 8M0176290 Side Mount Control w Trim 15 Ft. 10 Pin

  • Home /
  • Mercury Outboard 8M0176290 Side Mount Control w Trim 15 Ft. 10 Pin

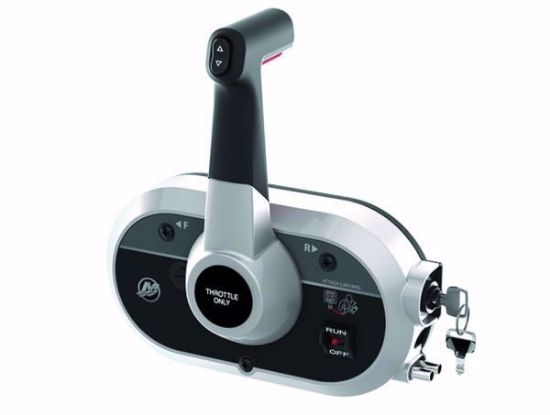

Picture of Mercury Outboard 8M0176290 Side Mount Control w Trim 15 Ft. 10 Pin Bar codes for Mercury Marine part number 8M0176290
8M0176290 Side Mount Control with Trim 15 Ft. 10 Pin
This is a genuine Mercury Marine factory OEM part, not aftermarket
Please check our current stock level and order below. Use the Contact Us form at the bottom of the page for any questions
Availability: Not in stock - will be transferred from factory
Manufacturer part number: 8M0176290
GTIN: 745061953529
Normally Ships: Warehouse transfer - on 4th business day
Manufacturer: Mercury Marine
Shipping specs, pounds and inches
MSRP: $519.10
$480.28

8M0176290 SIDE MOUNT REMOTE CONTROL - 10 PIN AMP CONNECTOR - PUSH-TO-CHOKE

This control features a handle mounted power trim switch, 15 ft. (4.58 m) harness with Amp 10‑pin connector. The control will connect to the engine models below without the use of an adapter.

Used on Model Year 2005 and newer 8/9.9 HP & 15/20 HP FourStroke engines with electric start and power trim.

8/9.9 HP FourStroke engines generation change above serial # OR192772 and 15/20 HP FourStroke engines will use GEN I cables.

GEN II cables must be used on other engines.

View all of Mercury's throttle/shift cables here

8M0176290 SIDE MOUNT REMOTE CONTROL - 10 PIN AMP CONNECTOR - PUSH-TO-CHOKE

This control features a handle mounted power trim switch, 15 ft. (4.58 m) harness with Amp 10‑pin connector. The control will connect to the engine models below without the use of an adapter.

Used on Model Year 2005 and newer 8/9.9 HP & 15/20 HP FourStroke engines with electric start and power trim.

8/9.9 HP FourStroke engines generation change above serial # OR192772 and 15/20 HP FourStroke engines will use GEN I cables.

GEN II cables must be used on other engines.

View all of Mercury's throttle/shift cables here

*
*
*
*
