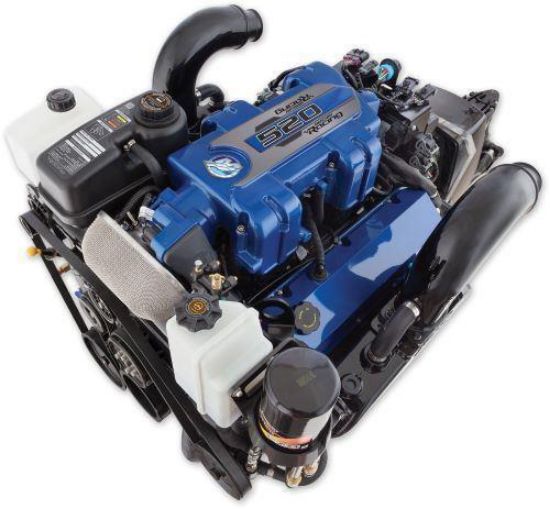

Mercury-Mercruiser 4-4TN2235WH Mercury 520 Racing Engine CC latest model, in stock now

4TN2235WH - New Mercury Racing 520 HP 8.6L Engine Only. Please see specs below. Please use the Contact Us tab for questions. These are the latest model, in stock now!
Availability: 4 available
Manufacturer part number: 4TN2235WH
Pickup or normally ships: In stock - Today (except for Holidays)
Manufacturer: Mercury Marine
$45,654.00
$31,841.30
Product Shipping specifications = pounds and inches

New Mercury 520 Racing Engine , engine only or complete packages available. Please contact us for more information

Perfect upgrade for 496,502 & 8.2 Mercruisers.  Easy swap as this engine uses the same pedastal mounts as all the Mercruiser black engines.



Full 2 Year limited factory warranty for recreational boating! 3 extra years available.

4800-5200 Full Throttle RPM

8.6L Displacement

8.7:1 Compression Ratio

CYLINDERS / ENGINE CONFIGURATION: V8

FUEL REQUIREMENT: 87 Octane Minimum (R+M/2), (91 RON) Global

FUEL SYSTEM: Sequential Fuel Injection

BORE & STROKE: 4.56 x 4.00 IN/115.8 x 101.6 MM

ALTERNATOR (AMP): 65 AMP

COMPATIBLE DRIVES: Bravo One XR, Bravo One XR Sport, Bravo One XR Sport Master (Std. & Short), Bravo Three XR; (Integrated Transom System Optional)

LENGTH (IN): FROM BACK OF BLOCK: 34.2 IN

WIDTH (IN): 33.8 IN

HEIGHT (IN): 24.2 IN

WEIGHT (LBS): 1218 LBS



New Mercury 520 Racing Engine , engine only or complete packages available. Please contact us for more information

Perfect upgrade for 496,502 & 8.2 Mercruisers.  Easy swap as this engine uses the same pedastal mounts as all the Mercruiser black engines.



Full 2 Year limited factory warranty for recreational boating! 3 extra years available.

4800-5200 Full Throttle RPM

8.6L Displacement

8.7:1 Compression Ratio

CYLINDERS / ENGINE CONFIGURATION: V8

FUEL REQUIREMENT: 87 Octane Minimum (R+M/2), (91 RON) Global

FUEL SYSTEM: Sequential Fuel Injection

BORE & STROKE: 4.56 x 4.00 IN/115.8 x 101.6 MM

ALTERNATOR (AMP): 65 AMP

COMPATIBLE DRIVES: Bravo One XR, Bravo One XR Sport, Bravo One XR Sport Master (Std. & Short), Bravo Three XR; (Integrated Transom System Optional)

LENGTH (IN): FROM BACK OF BLOCK: 34.2 IN

WIDTH (IN): 33.8 IN

HEIGHT (IN): 24.2 IN

WEIGHT (LBS): 1218 LBS



*
*
*
*
