Ref # Current
Part Nbr		 Description Superceded
From		 Status Notes List
Price		 Online
Price		 Quan
Used		 Order
Quan
- 8M0178521 REMOTE CONTROL 16900A15 SS $993.03 $915.18 1
- 8M0178524 REMOTE CONTROL 16900A20 SS $897.96 $827.57 1
- 8M0178526 REMOTE CONTROL 16901A15 SS $819.69 $754.52 1
- 8M0178526 REMOTE CONTROL 16902A15 SS $819.69 $754.52 1
- 8M0178527 REMOTE CONTROL 16903A20 SS $818.69 $754.52 1
- 881170A5 REMOTE CONTROL 16904A15 SS $561.07 $517.65 1
- 881170A6 REMOTE CONTROL 16905A20 SS $539.19 $502.93 1
- 8M0178530 REMOTE CONTROL 16908A1 SS $593.00 $546.51 1

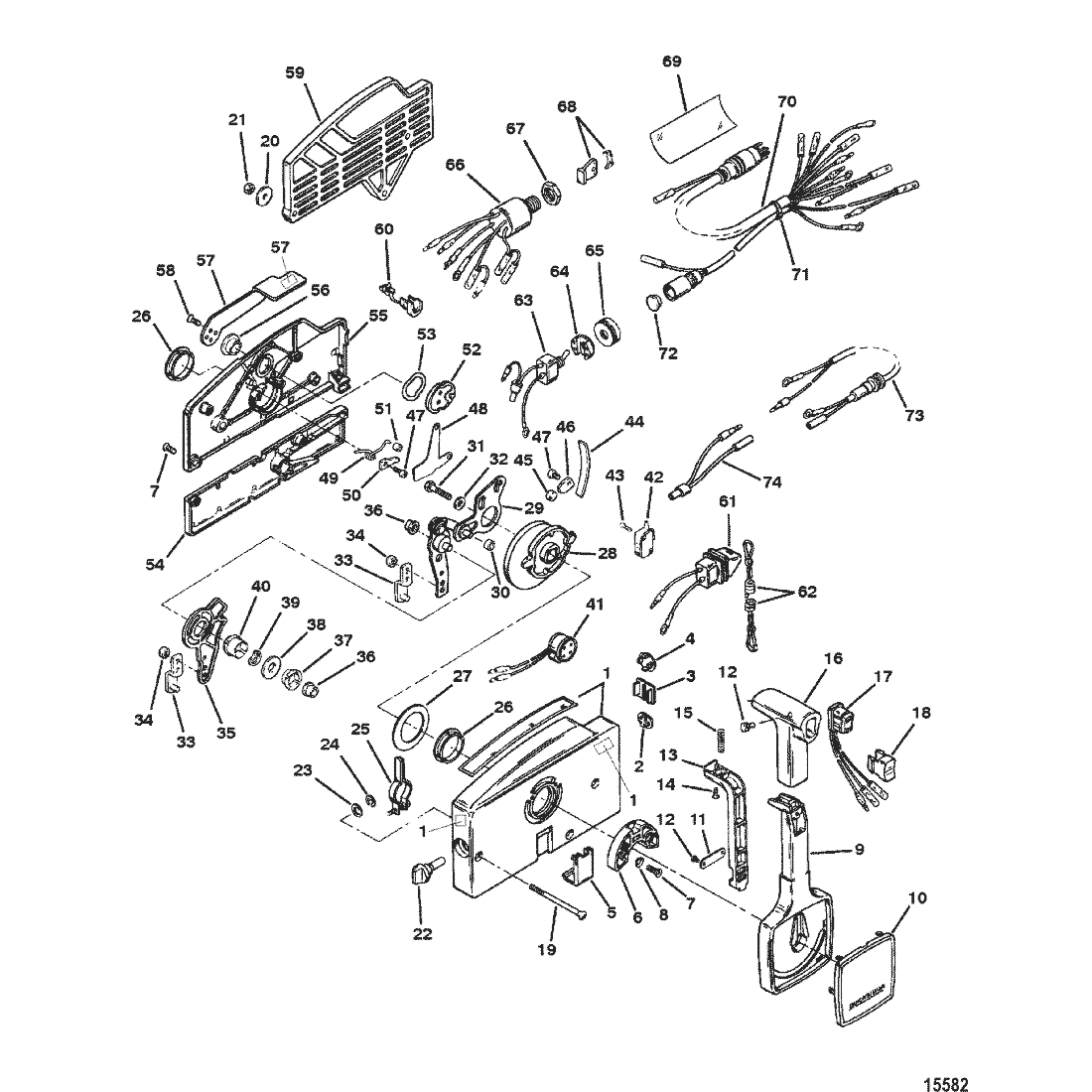

1 16910A1 --HOUSING KIT, Front NLA $0.00 $0.00 1
2 89774 --PLUG, Key Switch NLA $0.00 $0.00 1
3 17191 --PLUG, Wire Harness Hole NLA $0.00 $0.00 1
4 17191 --PLUG, Wire Harness Hole NLA $0.00 $0.00 1
5 16917 --COVER ACT $6.56 $6.43 1
6 16899T --HOLDER, Neutral Lock 16899 SS $5.29 $5.18 1
7 40118107 --SCREW, (M5 x 18) ACT $1.82 $1.79 7
8 16923 --LOCKWASHER, External ACT $0.93 $0.92 2
9 16913T --LEVER NLA $0.00 $0.00 1
10 16916A1 --CAP ASSEMBLY NLA $0.00 $0.00 1
11 16921 --BRACKET, Lock Bar Support ACT $2.34 $2.30 1
12 4005685 --SCREW, (M4 x 10) ACT $1.82 $1.79 AR
13 16915 --LOCK ARM NLA $0.00 $0.00 1
14 40056105 --SCREW, (M5 x 10) ACT $1.23 $1.21 1/2
15 16924 --SPRING ACT $1.58 $1.55 1
16 16914 --GRIP NLA $0.00 $0.00 1
17 18286A43 --SWITCH ASSEMBLY 18286A26 SS $58.08 $55.87 1
18 17016 --PLUG NLA $0.00 $0.00 1
19 40116110T --SCREW, (M6 x 110) 40116110 SS $4.55 $4.46 3
20 35280 --WASHER, (.255 x .620 x .030) Stainless Steel ACT $3.19 $3.11 3
21 401196 --NUT, (M6) ACT $3.06 $3.00 3
22 16920 --BRAKE ADJUSTER NLA $0.00 $0.00 1
23 16896 --WASHER ACT $0.93 $0.92 1
24 13194 --RING, Retaining ACT $1.23 $1.21 1
25 16895 --ARM ASSEMBLY, Brake NLA $0.00 $0.00 1
26 16875 --BEARING, (1.750 Inside Diameter) (1.750 Inside Diameter) ACT $1.82 $1.79 2
27 16874 --WASHER ACT $1.58 $1.55 1
28 16892T --GEAR, Drive 16892 SS $0.00 $0.00 1
29 850723A2 --PLATE/STUD ASSEMBLY 16893A1 SS $56.19 $54.57 1
29 850724A2 --PLATE/STUD ASSEMBLY 16894A2 SS $59.33 $57.61 1
29 850723A2 --PLATE/STUD ASSEMBLY ACT $56.19 $54.57 1
29 850724A2 --PLATE/STUD ASSEMBLY ACT $59.33 $57.61 1
30 16873 --ROLLER, Cam ACT $2.99 $2.93 1
31 4007154 --SCREW, (M8 x 30) ACT $3.04 $2.99 1
32 8M0207778 --WASHER 12038 SS $11.89 $11.61 1
33 85899A1 --CLIP ASSEMBLY ACT $4.74 $4.65 2
34 401385 --NUT, (M5) 400633 SS $4.79 $4.69 2
35 16918A3 --GEAR SHIFT 16918A1 SS $0.00 $0.00 1
36 16871 --BEARING (.350 Inside Diameter) ACT $2.29 $2.25 2
37 16868 --BEARING, (.750 Inside Diameter) (.750 Inside Diameter) ACT $2.29 $2.25 1
38 16870 --WASHER ACT $1.58 $1.55 1
39 16872 --LOCKWASHER NLA $0.00 $0.00 1
40 16869 --BEARING (.870 Inside Diameter) NLA $0.00 $0.00 1
41 8M0210763 --ALARM ASSEMBLY, Audio Warning 816492A1 SS $56.87 $54.70 1
42 17277T --SWITCH ASSEMBLY 17277 SS $11.18 $11.03 1
43 4005647 --SCREW, (M3 x 16) ACT $1.24 $1.22 2
44 16882 --SPRING, Detent NLA $0.00 $0.00 5
45 16879 --ROLLER, Detent ACT $2.34 $2.30 1
46 16880 --CLIP, Detent ACT $2.34 $2.30 1
47 4005683 --SCREW, (M4 x 6) ACT $1.24 $1.23 2
48 17685 --SEPARATOR ACT $3.55 $3.48 1
49 16888 --SPRING ACT $2.29 $2.25 1
50 16886 --CLIP ACT $2.99 $2.93 1
51 16884 --ROLLER ACT $2.99 $2.93 1
52 16883 --DRUM ASSEMBLY ACT $14.50 $14.23 1
53 16922 --WAVE WASHER ACT $0.93 $0.92 1
54 8M0178530 --COVER, Bottom 16912T NLA $593.00 $546.51 1
55 16911T --COVER, Top ACT $39.87 $39.17 1
56 16887 --BEARING, (.810 Inside Diameter) (.810 Inside Diameter) ACT $2.29 $2.25 1
57 16919A1 --LEVER ASSEMBLY ACT $24.04 $23.59 1
58 40118106 --SCREW, (M5 x 12) ACT $1.82 $1.79 2
59 17063T --SPACER ACT $16.08 $15.78 1
60 71942 --BUSHING NLA $0.00 $0.00 1
61 91941A8 --SWITCH ASSEMBLY, Stop 91941A6 SS $29.66 $29.25 1
62 15920Q54 --LANYARD ASSEMBLY 15920A54 SS $0.00 $0.00 1
63 91941A7 --SWITCH ASSEMBLY, Run/Off ACT $42.09 $41.51 1
64 88144 --BUSHING NLA $0.00 $0.00 1
65 29644 --BEZEL ACT $13.08 $12.82 1
66 17009A5 --SWITCH 17009A2 SS $69.84 $67.19 1
67 879755 ----NUT, Special - Chrome Brass 93543 SS $6.09 $5.95 1
68 90468A1 --COVER ASSEMBLY, Key ACT $4.86 $4.80 2
69 15097 --SHEET, Neoprene ACT $4.85 $4.77 1
70 17179T1 --HARNESS ASSEMBLY 17179A1 SS $153.01 $146.26 1
70 17179T2 --HARNESS ASSEMBLY 17179A2 SS $186.25 $175.35 1
70 17247T1 --HARNESS ASSEMBLY 17247A1 SS $198.97 $187.36 1
71 816311T --TIE STRAP, (8.00 Inches) ACT $0.60 $0.59 AR
72 11023 --PLUG ACT $1.20 $1.18 1
73 17193A1 --HARNESS ASSEMBLY, 2 Wire NLA $0.00 $0.00 1
74 11149A1 --CABLE ASSEMBLY, (3.00 Inches) ACT $4.89 $4.83 1
74 11149A2 --CABLE ASSEMBLY, (6.00 Inches) ACT $28.01 $27.61 1
