The fuel pump for the Gen II Cool Fuel System is no longer available as an individual component. The pump is only available as part of a Pump and Cooler Kit, which includes the fuel pump, fuel cooler, and hardware.
Mercury 861156A1 Fuel Pump Replacement Guide

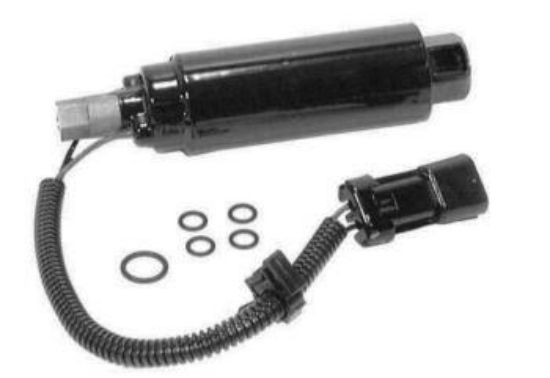

The original 861156A1 Gen II Cool Fuel Pump
is discontinued. Mercury now supplies the fuel pump as
part of a complete pump and cooler kit, including
installation hardware.
Important: Three different replacement
kits are used depending on engine model, serial number
and fuel cooler configuration. The coolers are not
interchangeable.
| Engine Application |
Serial Number |
Replacement Kit |
496 MAG MPI / HO MPI
8.1S Horizon / 8.1S HO
|
All |
8M0125846
|
| Black Scorpion |
0L000000 & up |
8M0125846
|
| Other MPI / EFI |
0L000000 to 0M300000 |
8M0125846
|
4.3 MPI (Alpha / Bravo)
5.0 MPI
350 MAG MPI
MX6.2 MPI
MIE 350 MAG / MX6.2 MPI
|
0M300000 & up |
8M0125852
|
Early MPI / EFI / TBI with Gen II Cool Fuel
Original-style fuel line connection
|
0K999999 & lower |
8M0125845
|
Important for older engines:
Engines with serial numbers 0K999999 and lower may have
received an updated cooler. If the fuel line uses the
later cross-bolt connection, use kit
8M0125846
instead of 8M0125845.
Kit identification:
8M0125846 – With drain, cross-bolt connection (replaces 861156A02)
8M0125852 – Without drain, cross-bolt connection (replaces 861156A03)
8M0125845 – With drain, parallel-bolt connection (replaces 861156A04)
Not sure which kit fits?
Contact BAM Marine with your complete engine serial number
and, if possible, a photograph of the existing fuel cooler.
Reference: Mercury Marine Service Bulletin 2004-05R1.
View original service bulletin
