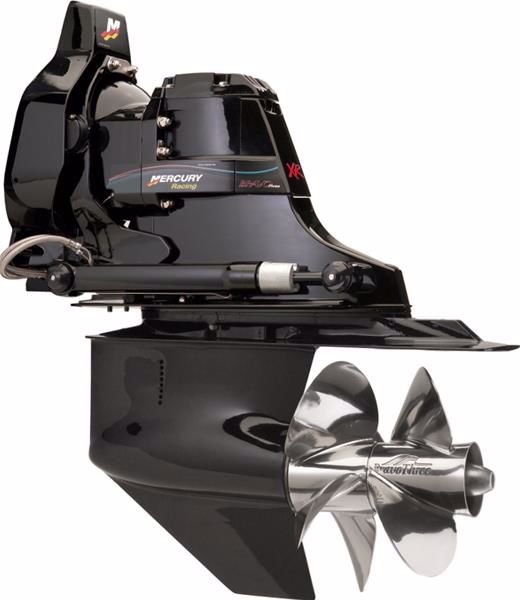

Mercury-Mercruiser 5-5H41300UT Bravo 3 XR 1.65 DWP Sterndrive

Mercruiser 5-5H41300UT Bravo 3 XR 1.65 DWP Sterndrive Bar codes for Mercury Marine part number 5-5H41300TT
Genuine Mercury-Mercruiser Bravo 3 XR 1.65:1 DWP sterndrive assembly. Engineered for high-torque big block gasoline and marine diesel applications. Features heavy-duty billet bearing carrier, race-proven gear housing, and 1-1/4" propeller shaft. Gimbal housing, trim cylinders, and propellers sold separately. Includes 1-Year Factory Warranty.
Clearance Price: $12,990.00. Payment strictly restricted to Wire/ACH transfer only.
Manufacturer part number: 5H41300UT
Manufacturer: Mercury Marine
Normally Ships: Available - Next business day
Shipping specs, pounds and inches
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
MSRP: $22,154.35
$12,990.00
 Price Update

Genuine Factory OEM Bravo 3 XR 1.65:1 Drive Lowered to $12,990

Promotional clearance pricing is active for this specific 1.65:1 ratio configuration while remaining warehouse stock lasts.

💳 Payment Terms: Strict requirement for Wire/ACH transfer verification prior to shipment release.
🛡️ Warranty Coverage: Backed by an official 1-Year Mercury Racing factory limited warranty.

The factory-assembled Mercury Racing Bravo Three XR outdrive features a dual contra-rotating propeller configuration designed to minimize bow rise and lower planing speeds on heavy day boats and sport cruisers. This specific 1.65:1 ratio assembly is engineered for single or twin engine marine applications operating at velocities up to 65 mph.

Technical Build Specifications

  • Gear Ratio: 1.65:1
  • Serial Number Fitment: Fits transom serial number 0W240000 and up.
  • Gasoline Engine Rating: Supports applications up to 525 HP.
  • Diesel Engine Rating: Supports applications up to 370 HP.
  • Velocity Limit: Evaluated for hull performance architectures up to 65 mph.
  • Water Intake: Dual Water Pickup (DWP) configuration standard.
  • Propeller Interface: Dual counter-rotating propeller shafts. Compatible with MerCruiser & Mercury Racing Bravo 3 propellers.
Transom Compatibility: This drive fits standard Bravo transom configurations. Replacement gimbal housing assemblies and transom hardware can be ordered directly via our Bravo Transoms Page.
Exclusions: Trim cylinders, individual props, and the transom gimbal housing assembly must be purchased separately.
Propeller Integration Note: Complete the drive optimization with Mercury Racing Pro-Finished Propellers, utilizing a 4-blade front and 3-blade rear propeller matrix engineered specifically for XR load capacities.
 Price Update

Genuine Factory OEM Bravo 3 XR 1.65:1 Drive Lowered to $12,990

Promotional clearance pricing is active for this specific 1.65:1 ratio configuration while remaining warehouse stock lasts.

💳 Payment Terms: Strict requirement for Wire/ACH transfer verification prior to shipment release.
🛡️ Warranty Coverage: Backed by an official 1-Year Mercury Racing factory limited warranty.

The factory-assembled Mercury Racing Bravo Three XR outdrive features a dual contra-rotating propeller configuration designed to minimize bow rise and lower planing speeds on heavy day boats and sport cruisers. This specific 1.65:1 ratio assembly is engineered for single or twin engine marine applications operating at velocities up to 65 mph.

Technical Build Specifications

  • Gear Ratio: 1.65:1
  • Serial Number Fitment: Fits transom serial number 0W240000 and up.
  • Gasoline Engine Rating: Supports applications up to 525 HP.
  • Diesel Engine Rating: Supports applications up to 370 HP.
  • Velocity Limit: Evaluated for hull performance architectures up to 65 mph.
  • Water Intake: Dual Water Pickup (DWP) configuration standard.
  • Propeller Interface: Dual counter-rotating propeller shafts. Compatible with MerCruiser & Mercury Racing Bravo 3 propellers.
Transom Compatibility: This drive fits standard Bravo transom configurations. Replacement gimbal housing assemblies and transom hardware can be ordered directly via our Bravo Transoms Page.
Exclusions: Trim cylinders, individual props, and the transom gimbal housing assembly must be purchased separately.
Propeller Integration Note: Complete the drive optimization with Mercury Racing Pro-Finished Propellers, utilizing a 4-blade front and 3-blade rear propeller matrix engineered specifically for XR load capacities.
