Mercury Racing 565 Racing Sterndrive Engine. Transom & drive sold separately. Please see more details below.
Normally Ships: Contact us for availability
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Contact us for price

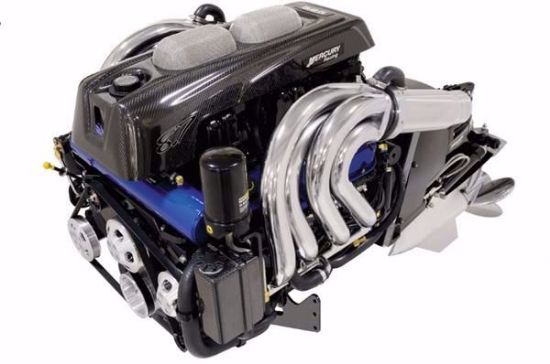

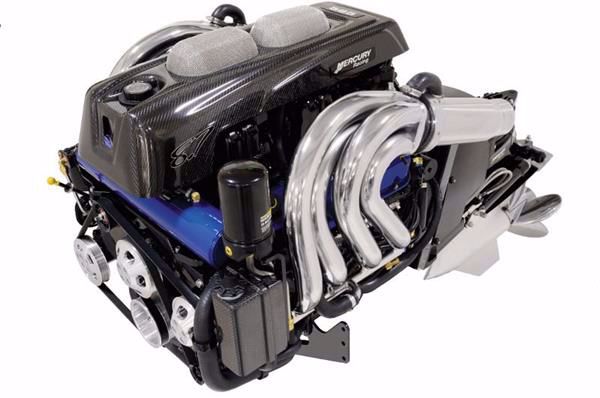

Mercury Racing 565 Racing Sterndrive Engine

The 565 DTS 8.7L V8 is based off a CNC machined cylinder block that is stroked for an additional 31 cubic inches of displacement to 533-C.I.D. (8.7 L). The larger displacement combined with redesigned cylinder heads, multiport fuel injection and twin electronic throttle bodies results in a whopping 565 horsepower at the 5000-5400 rpm operating range. All of this power comes from 89 posted octane (R+M)/2 pump gas.

Closed couple (plug-in) or driveline style available. Closed couple (CC) version features stainless tubular exhaust headers. Custom colors are available.

The 565 complies with EPA and CARB exhaust gas emissions limits. Comes with a 90 amp alternator to keep the fun going.

2 Year limited factory warranty for recreational use. Sterndrive sold separately.

SPECS:

HORSEPOWER AT TRANSOM 565
FULL THROTTLE RPM 5000 -5400
DISPLACEMENT 8.7L
BORE & STROKE 4.466 X 4.25 IN/113 X 109 MM
CYLINDERS/ENGINE CONFIG V8
ALTERNATOR 90 AMP
FUEL REQUIREMENT 89 Octane Minimum (R + M)/2
CONTROLLER 1 X PCM; 1 X TCM
THROTTLE/SHIFT DTS (Digital Throttle/Shift)
COMPATIBLE DRIVES Bravo 1 XR, Bravo 1 XR Sport, Bravo 1 XR Sport Master
COMPATIBLE TRANSOMS Bravo HD
  ITS
FUEL SYSTEM Sequential Fuel Injection
LENGTH-FROM BACK OF BLOCK 34.2"
WIDTH 33.9"
HEIGHT 26.9"
WEIGHT 1,201 Lbs.
WARRANTY 2-Year Limited for recreational boating
