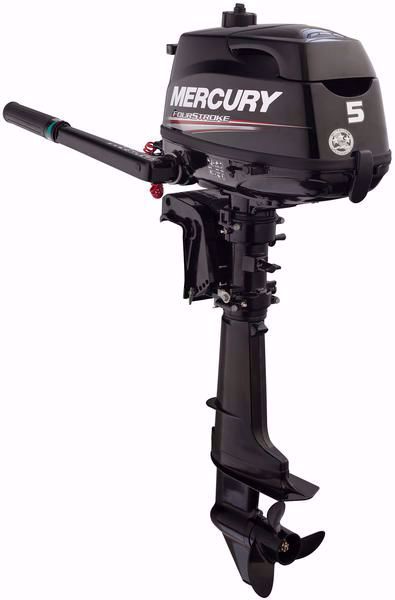

Mercury 5MH 4 Stroke Motor 15", Tiller Handle - 5 Yr Warranty - Free Shipping

1FX5201KK 5 HP Mercury Outboard 4 Stroke with 15" (short) shaft, tiller handle control, standard rotation lower unit, Phantom black. Prior model year. 5 YEAR FACTORY WARRANTY INCLUDED! Free ground shipping to contiguous U.S. states while supplies last. Please check current stock and order below.
Stock status: 8 PIECES ARE IN STOCK
Manufacturer part number: 5HP
Pickup or normally ships: In stock - Same business day
Manufacturer: Mercury Marine
$1,855.00
$1,199.00
Product Shipping specifications = pounds and inches

Mercury 5 HP Tiller Motor 15" Short Shaft - Prior Model Year

BAM Marine of Florida is offering a free extra 2 years of factory warranty for a total of 5 years coverage!  Free ground shipping to contiguous U.S. states while supplies last.

This Mercury 5 HP outboard is an ideal selection for fishing or leisure activities. This 4-stroke portable tiller handle outboard is extremely quiet and smokeless with steady idling. The eco-friendly 4-stroke engine has a CARB 3-star, ultra-low emissions rating.

The decompression system and electronic CD ignition design guarantee a simple, dependable start. Single-stage over-rev protection and a low oil pressure warning system offer additional reassurance. Forward, neutral, and reverse with a 180° turning radius. 3 blade aluminum Mercury propeller included.  For more information on Mercury small 4 Strokes please visit this page.

1FX5201KK Mercury 5MH FourStroke Outboard Engine Specs:

HP 5
Shaft Length 15 Inch (381mm)
Alternator Amp / Watt N/A
Smartcraft Compatible No
WOT RPM 4,500-5,000
Displacement (CID/CC) 7.5 c.u. / 123cc
Induction 2-valve, pushrod
Dry Weight  57 lbs / 26 kg
Engine Type 1 Cylinder
HP / KW 5/3.7
Integrated Fuel Tank (Gal / L) 0.3 Gal /1L
Remote Fuel Tank Standard (Gal / L) Optional
Starting Manual
Trim System 6 Position manual w shallow water drive
Gear Ratio 2.15:1
Steering Tiller
