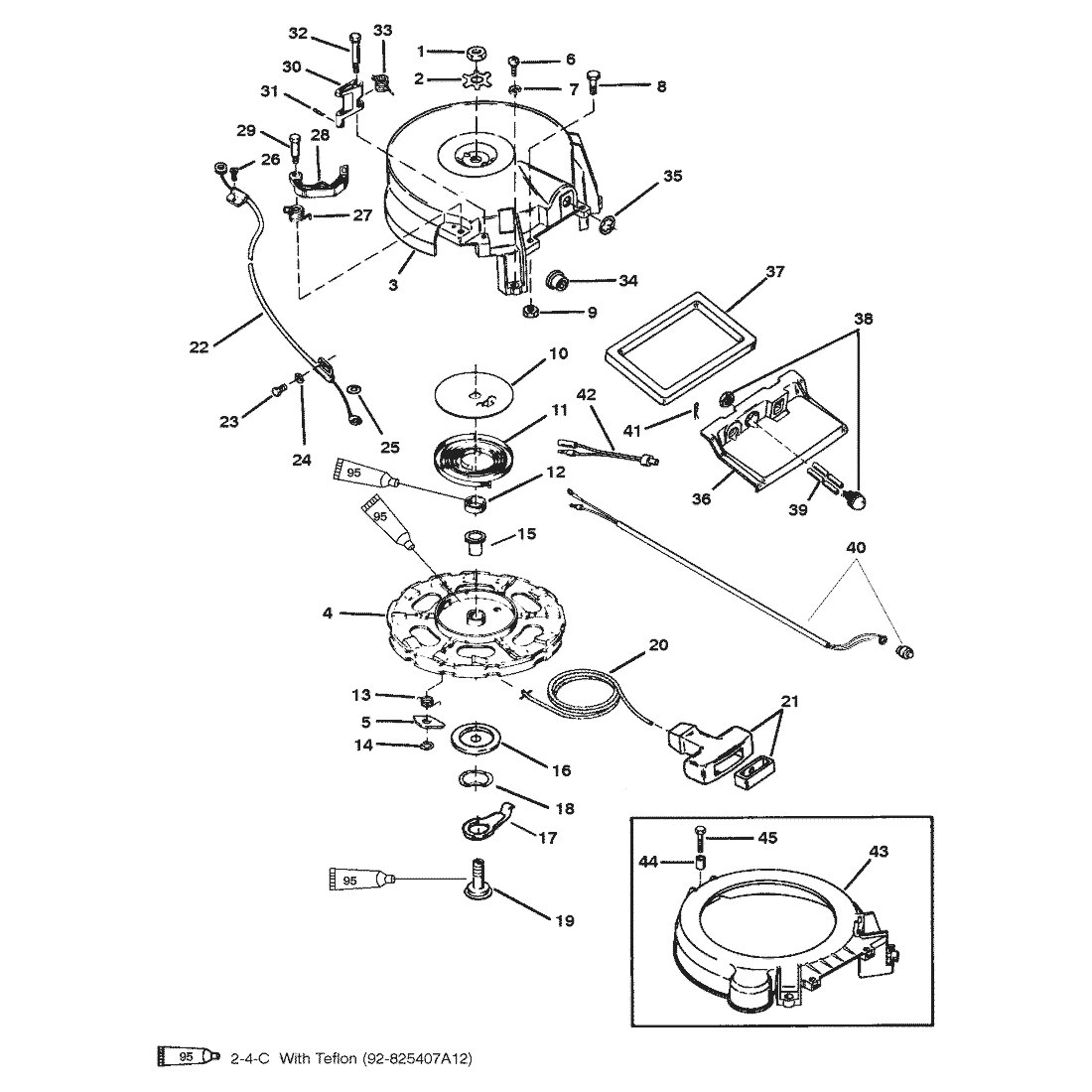

| Ref # | Current Part Nbr |
Description | Superceded From |
Status | Notes | List Price |
Online Price |
Quan Used |
Order Quan |
|---|---|---|---|---|---|---|---|---|---|
| 1 | 20166 | NUT-SHEAVE SHAFT (LEFT HAND THREAD) | NLA |
|
$3.10 | $3.05 | 1 | ||
| 2 | 61004 | TAB WASHER-SHEAVE SHAFT NUT | ACT | $18.83 | $18.50 | 1 | |||
| 3 | 186471 | STARTER HOUSING | NLA |
|
$0.00 | $0.00 | 1 | ||
| 4 | 44255A1 | STARTER SHEAVE | NLA |
|
$0.00 | $0.00 | 1 | ||
| 5 | 44508 | STARTER PAWL | NLA |
|
$0.00 | $0.00 | 1 | ||
| 6 | 54523 | SCREW-STARTER HOUSING | NLA |
|
$0.36 | $0.36 | 3 | ||
| 7 | 8M0204647 | LOCKWASHER-STARTER HOUSING SCREW | 26993 | SS |
|
$1.80 | $1.76 | 3 | |
| 8 | 45210 | SCREW-STARTER HOUSING | NLA |
|
$0.00 | $0.00 | 2 | ||
| 9 | 8267086 | NUT-STARTER HOUSING SCREW | 20190 | SS |
|
$1.70 | $1.66 | 2 | |
| 10 | 61002 | PLATE-STARTER REWIND | NLA |
|
$0.00 | $0.00 | 1 | ||
| 11 | 39502T02 | SPRING-STARTER REWIND | 39502A1 | SS |
|
$0.00 | $0.00 | 1 | |
| 12 | 87649 | BUSHING-SPRING GUIDE | NLA |
|
$0.00 | $0.00 | 1 | ||
| 13 | 87651 | SPRING-STARTER PAWL | ACT | $14.50 | $14.14 | 1 | |||
| 14 | 87706 | E-RING-STARTER PAWL | NLA |
|
$0.00 | $0.00 | 1 | ||
| 15 | 63061 | SPACER-SHEAVE SHAFT | NLA |
|
$0.00 | $0.00 | 1 | ||
| 16 | 35559 | WASHER-STARTER REWIND | ACT | $5.41 | $5.27 | 1 | |||
| 17 | 94962 | LEVER | NLA |
|
$0.00 | $0.00 | 1 | ||
| 18 | 20160 | WAVE WASHER | ACT | $3.80 | $3.71 | 1 | |||
| 19 | 87656 | SHEAVE SHAFT | NLA |
|
$0.00 | $0.00 | 1 | ||
| 20 | 12066Q10 | STARTER ROPE ASSEMBLY | 12066A9 | SS |
|
$13.59 | $13.27 | 1 | |
| 20 | 47341A11 | STARTER ROPE (FOR MANUAL STARTING) | 47341A1 | SS |
|
$18.17 | $17.84 | 1 | |
| 21 | 85174A1 | HANDLE AND RETAINER ASSEMBLY | ACT | $28.26 | $27.74 | 1 | |||
| 22 | 188881 | CABLE-INTERLOCK | NLA |
|
$0.00 | $0.00 | 1 | ||
| 23 | 69022 | SCREW-INTERLOCK CABLE ATTACHING (1/2 IN.) | ACT | $1.10 | $1.08 | 1 | |||
| 24 | 73288 | WASHER-INTERLOCK CABLE SCREW | ACT | $1.50 | $1.47 | 1 | |||
| 25 | 37998 | WASHER | ACT | $0.70 | $0.69 | 1 | |||
| 26 | 878608 | SCREW | 812832 | SS |
|
$1.70 | $1.66 | 1 | |
| 27 | 761401 | SPRING-INTERLOCK CAM SCREW | NLA |
|
$0.00 | $0.00 | 1 | ||
| 28 | 428201 | CAM-INTERLOCK | NLA |
|
$0.00 | $0.00 | 1 | ||
| 29 | 76138 | SCREW-INTERLOCK CAM (1-1/8 IN.) | NLA |
|
$0.00 | $0.00 | 1 | ||
| 30 | 79371 | ACTUATOR-INTERLOCK | NLA |
|
$0.00 | $0.00 | 1 | ||
| 31 | 26811 | COTTER PIN-INTERLOCK CABLE TO ACTUATOR | 27769 | SS |
|
$0.80 | $0.79 | 2 | |
| 32 | 76137 | SCREW-INTERLOCK ACTUATOR (1-5/8 IN.) | NLA |
|
$0.00 | $0.00 | 1 | ||
| 33 | 76139 | SPRING-INTERLOCK ACTUATOR SCREW | NLA |
|
$0.00 | $0.00 | 1 | ||
| 34 | 8M0183792 | BUSHING | 42690 | SS |
|
$10.19 | $9.95 | 1 | |
| 35 | 818853 | RETAINING RING | ACT | $1.80 | $1.76 | 1 | |||
| 36 | 813544 | REST ASSEMBLY | 813544A1 | NLA |
|
$0.00 | $0.00 | 1 | |
| 37 | 813641 | --SEAL | NLA |
|
$0.00 | $0.00 | 1 | ||
| 38 | 858763 | PRIMER BULB | 8168772 | SS |
|
$86.08 | $82.80 | 1 | |
| 39 | 892024122 | TUBING | 99130122 | SS |
|
$48.17 | $47.30 | 1 | |
| 40 | 89591A5 | STOP SWITCH ASSEMBLY | ACT | $56.83 | $54.67 | 1 | |||
| 41 | 36002 | COTTER PIN | ACT | $1.00 | $0.98 | 2 | |||
| 42 | 11149A2 | CABLE ASSEMBLY (NON-HANDLE) | ACT | $16.50 | $16.26 | 1 | |||
| 43 | 812617 | COVER-FLYWHEEL | NLA |
|
$0.00 | $0.00 | 1 | ||
| 44 | 812611 | SPACER-COVER SCREW | NLA |
|
$0.00 | $0.00 | 3 | ||
| 45 | 812618 | SCREW-FLYWHEEL COVER | ACT |
|
$4.20 | $4.10 | 3 |
