| Ref # | Current Part Nbr |
Description | Superceded From |
Status | Notes | List Price |
Online Price |
Quan Used |
Order Quan |
|---|---|---|---|---|---|---|---|---|---|

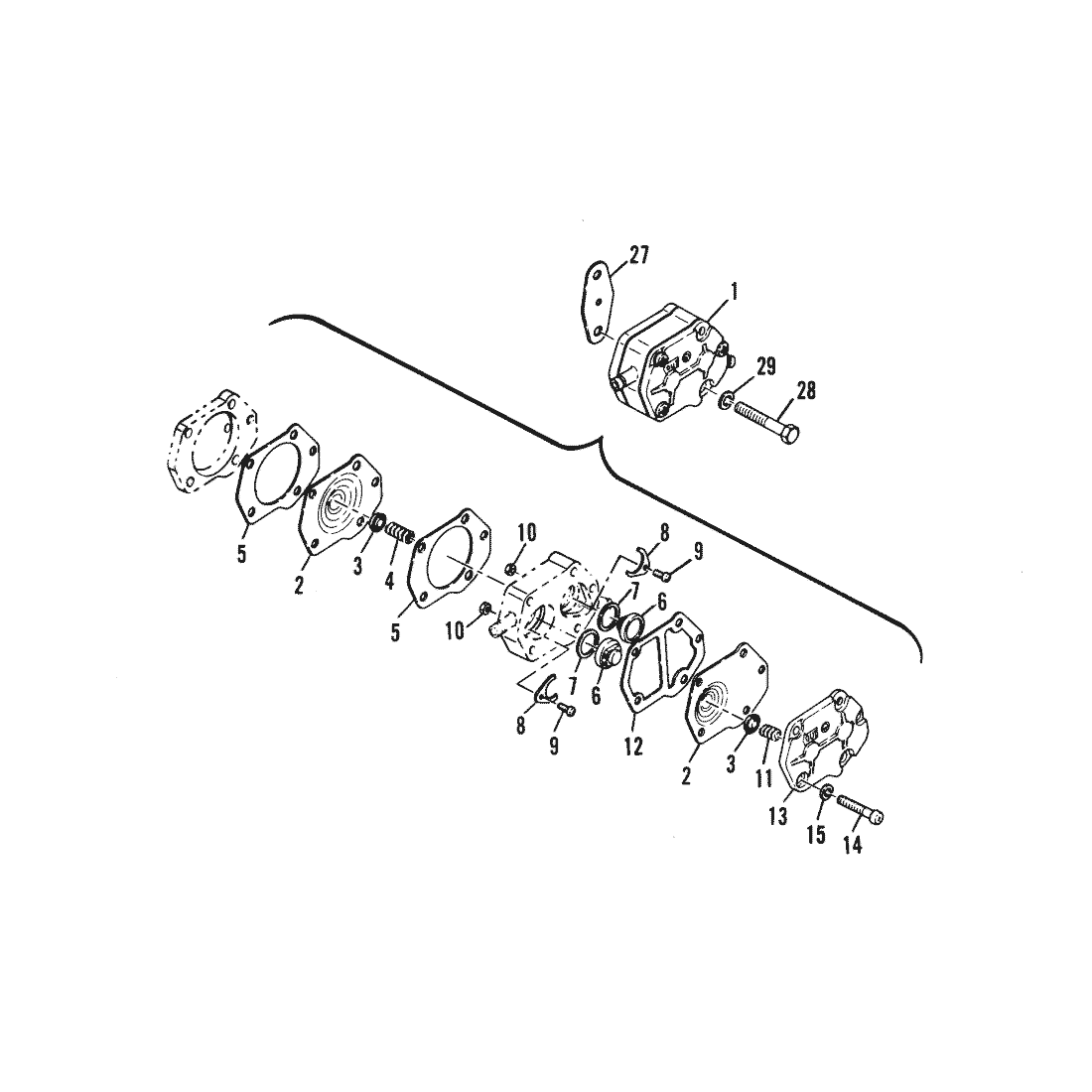

| 1 | 43113T | FUEL PUMP ASS'Y | 81328M | SS |
|
$149.32 | $140.63 | 1 | |
| 2 | 80606M | --DIAPHRAGM | ACT |
|
$38.08 | $37.40 | 2 | ||
| 3 | 80611M | --PLATE, SPRING GUIDE | NLA |
|
$0.00 | $0.00 | 2 | ||
| 4 | 80610M | --SPRING | NLA |
|
$0.00 | $0.00 | 1 | ||
| 5 | 80613 | --GASKET, BODY TO BASE | 80613M | SS |
|
$13.90 | $13.56 | 2 | |
| 6 | 80608M | --CHECK VALVE | NLA |
|
$0.00 | $0.00 | 2 | ||
| 7 | 80612M | --GASKET, CHECK VALVE | NLA |
|
$0.00 | $0.00 | 2 | ||
| 8 | 80609M | --RETAINER, CHECK VALVE | NLA |
|
$0.00 | $0.00 | 2 | ||
| 9 | 82511M | --SCREW | NLA |
|
$0.00 | $0.00 | 2 | ||
| 10 | 82537M | --NUT | 82373M | SS |
|
$0.00 | $0.00 | 2 | |
| 11 | 80615M | --SPRING | NLA |
|
$0.00 | $0.00 | 1 | ||
| 12 | 80614 | --GASKET, BODY TO COVER | 80614M | SS |
|
$18.33 | $18.01 | 1 | |
| 13 | 80607M | --COVER | NLA |
|
$0.00 | $0.00 | 1 | ||
| 14 | 82522M | --SCREW | NLA |
|
$0.00 | $0.00 | 3 | ||
| 15 | 82186M | --WASHER, LOCK | 82208M | SS |
|
$0.00 | $0.00 | 3 | |
| 27 | 80757 | GASKET, FUEL PUMP TO CRANKCASE | 80757M | SS |
|
$3.60 | $3.52 | 1 | |
| 28 | 827043M | BOLT | 82428M | SS |
|
$0.00 | $0.00 | 2 | |
| 29 | 82213M | WASHER | 82198M | SS |
|
$0.00 | $0.00 | 2 |
