Ref # Current
Part Nbr		 Description Superceded
From		 Status Notes List
Price		 Online
Price		 Quan
Used		 Order
Quan

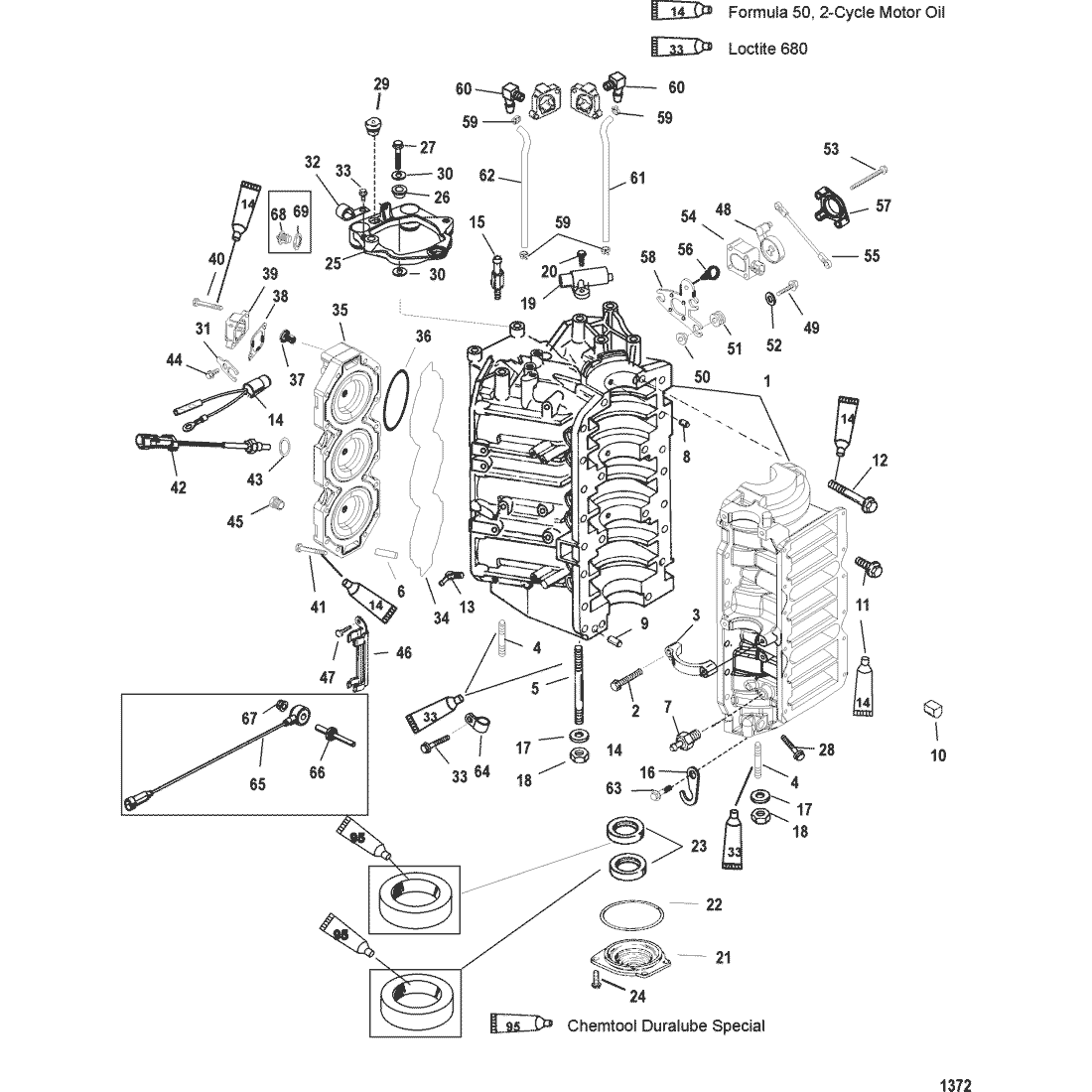

1 9811A82 CYLINDER BLOCK NLA $0.00 $0.00 1
1 899162A06 CYLINDER BLOCK ASSEMBLY 9811T87 SS $5,257.49 $4,819.27 1
1 9811A81 CYLINDER BLOCK NLA $0.00 $0.00 1
1 899162A05 CYLINDER BLOCK 9811T86 SS $4,450.49 $4,079.87 1
1 899162A07 CYLINDER BLOCK 9811A83 SS $4,414.49 $4,046.60 1
1 899162A07 CYLINDER BLOCK 9811T88 SS $4,414.49 $4,046.60 1
2 81893440 --SCREW, (M8 x 40) ACT $4.19 $4.10 4
3 8M0111325 --BRACKET 8569662 SS $45.99 $45.19 2
4 903509 --STUD, (M10 x 1.5 x 64) ACT $17.89 $17.52 4
5 8154431 --STUD, (M10 x 1.5 x 155) ACT $33.99 $33.31 6
6 8248577 --DEFLECTOR ACT $2.59 $2.53 6
7 8781051 --CHECK VALVE ACT $45.99 $45.09 1
8 8M0036405 --PIN 67296 SS $4.39 $4.30 3
9 43044 --PIN, Dowel - Without Hole (.375 x .625) ACT $2.49 $2.43 1
10 850309001 --PLUG 850309 SS $2.39 $2.33 6
11 81893435 --SCREW, (M8 x 35) ACT $3.99 $3.91 14
12 82446180 --SCREW, (M10 x 80) ACT $15.69 $15.31 8
13 782792 FITTING, Elbow 45 Degree (1.25) ACT $0.00 $0.00 1
14 13536A13 SENSOR ASSEMBLY, Temperature ACT $48.99 $48.12 1
15 8405101 --PIN ACT $37.99 $37.32 2
16 8588641 RETAINER ACT $1.90 $1.86 1
17 8M0214963 WASHER, (.406 x .750 x .105) Stainless Steel 856774 SS $2.59 $2.53 10
18 4013610 NUT, (M10) Stainless Steel ACT $7.79 $7.61 10
19 8M0082988 SENSOR 8283582 SS $120.49 $113.48 1
20 40011107 SCREW, (M5 x 16) Stainless Steel ACT $1.80 $1.76 2
21 9787A4 END CAP ASSEMBLY ACT $100.49 $94.57 1
22 62700 --O-RING, (3.237 x .103) ACT $3.99 $3.91 1
23 8308981 --SEAL ACT $27.39 $26.84 2
24 82130020 SCREW, (M6 x 20) ACT $2.69 $2.62 4
25 857186T02 PLATE ASSEMBLY 857186A1 SS $204.49 $192.35 1
26 855729 --MOUNT ACT $49.99 $49.02 3
27 82130145 SCREW, (M10 x 45) ACT $10.99 $10.73 3
28 82130012 SCREW, (M6 x 12) ACT $1.80 $1.76 2
29 19565002 GROMMET 19565 SS $30.99 $30.36 1
30 855725 WASHER ACT $2.19 $2.14 6
31 137151 RETAINER ACT $4.29 $4.20 1
32 858951 J CLIP ACT $6.79 $6.64 1
33 82130012 SCREW, (M6 x 12) ACT $1.80 $1.76 1
34 818574 SEAL ACT $27.69 $27.17 2
35 812851A27 CYLINDER HEAD 812851A19 SS $500.99 $471.35 2
35 812851A27 CYLINDER HEAD 812851A22 SS $500.99 $471.35 1
35 812851A26 CYLINDER HEAD 812851A18 SS $0.00 $0.00 2
35 812851A26 CYLINDER HEAD 812851A21 SS $0.00 $0.00 1
36 884391 --SEAL ACT $21.19 $20.79 6
36 878453 SEAL ACT $15.79 $15.41 6
37 8M0057307 THERMOSTAT, 54°C (130°F) 8855991 SS $134.99 $126.82 2
38 8503181 GASKET ACT $4.99 $4.88 2
39 8503173 COVER, Thermostat ACT $24.89 $24.39 2
39 8M0039357 COVER, Thermostat 887926 SS $39.99 $39.26 2
40 82130025 SCREW, (M6 x 25) ACT $4.09 $4.00 4
41 8M0045380 SCREW, (M8 x 50) 859096 SS $6.89 $6.73 40
42 8M0214984 SENSOR ASSEMBLY, Temperature 858535 SS $62.49 $59.88 2
43 627021 --O-RING, (.301 x .070) ACT $1.70 $1.66 2
44 81893414 SCREW, (M8 x 14) ACT $3.39 $3.30 1
45 328022 PLUG, Pipe (.125-27) Brass ACT $7.59 $7.42 1
46 8266241 CLAMP ACT $26.59 $26.11 1
47 82130012 SCREW, (M6 x 12) ACT $1.80 $1.76 2
48 8583561 LEVER, TPI ACT $18.59 $18.14 1
49 82130025 SCREW, (M6 x 25) ACT $4.09 $4.00 3
50 856954 BUSHING ACT $6.99 $6.83 3
51 8M0190980 GROMMET 834985 SS $3.89 $3.79 3
52 65567 WASHER, (.265 x .750 x .048) Stainless Steel ACT $2.89 $2.82 3
53 40011113 SCREW, (M5 x 45) Stainless Steel ACT $1.99 $1.95 3
54 8M6005165 INDICATOR, Throttle Position 83295211 SS $164.99 $154.99 1
55 8M0084743 LINK 859095 SS $24.99 $24.55 1
56 858932 CLIP ACT $2.39 $2.33 1
57 8582261 COVER ACT $25.99 $25.45 1
58 8544862 BRACKET ACT $22.99 $22.59 1
59 816311T TIE STRAP, (8.00 Inches) ACT $0.60 $0.59 AR
60 8533394 FITTING ACT $21.29 $20.87 2
61 8404461 HOSE (STARBOARD) ACT $16.72 $16.48 1
62 8404462 HOSE (PORT) ACT $26.99 $26.52 1
63 81893420 SCREW, (M8 x 20) ACT $5.79 $5.66 1
64 858902 CLAMP ACT $4.79 $4.69 1
65 8M6003194 SENSOR ASSEMBLY, Knock 878187 SS $77.99 $74.95 2
66 882781 STUD ACT $48.49 $47.57 2
67 826292 NUT, (M10) Brass/Nickel Plated ACT $4.19 $4.10 2
68 NLA No Longer Available, Thermostat (120 Degrees) $0.00 $0.00 2
69 854639001 SEAL 854639 SS $7.99 $7.81 2
- 832934A00 GASKET SET, Powerhead ACT $186.49 $175.40 1
- 883892A07 POWERHEAD ASSEMBLY 883892A02 SS $11,257.15 $10,082.47 1
- 883892A07 POWERHEAD ASSEMBLY, Mechanical Oil Pump 883892A03 SS $11,257.15 $10,082.47 1
- 883892A07 POWERHEAD ASSEMBLY, Electric Oil Pump 883892A04 SS $11,257.15 $10,082.47 1
- 883893A07 POWERHEAD ASSEMBLY 883893A02 SS $0.00 $0.00 1
- 883893A07 POWERHEAD ASSEMBLY 883893A03 SS $0.00 $0.00 1
- 883894A07 POWERHEAD ASSEMBLY 883894A02 SS $11,314.30 $10,133.65 1
- 883894A07 POWERHEAD ASSEMBLY 883894A03 SS $11,314.30 $10,133.65 1
- 891823A07 POWERHEAD ASSEMBLY 891823A04 SS $6,400.00 $5,867.01 1
