| Ref # | Current Part Nbr |
Description | Superceded From |
Status | Notes | List Price |
Online Price |
Quan Used |
Order Quan |
|---|---|---|---|---|---|---|---|---|---|

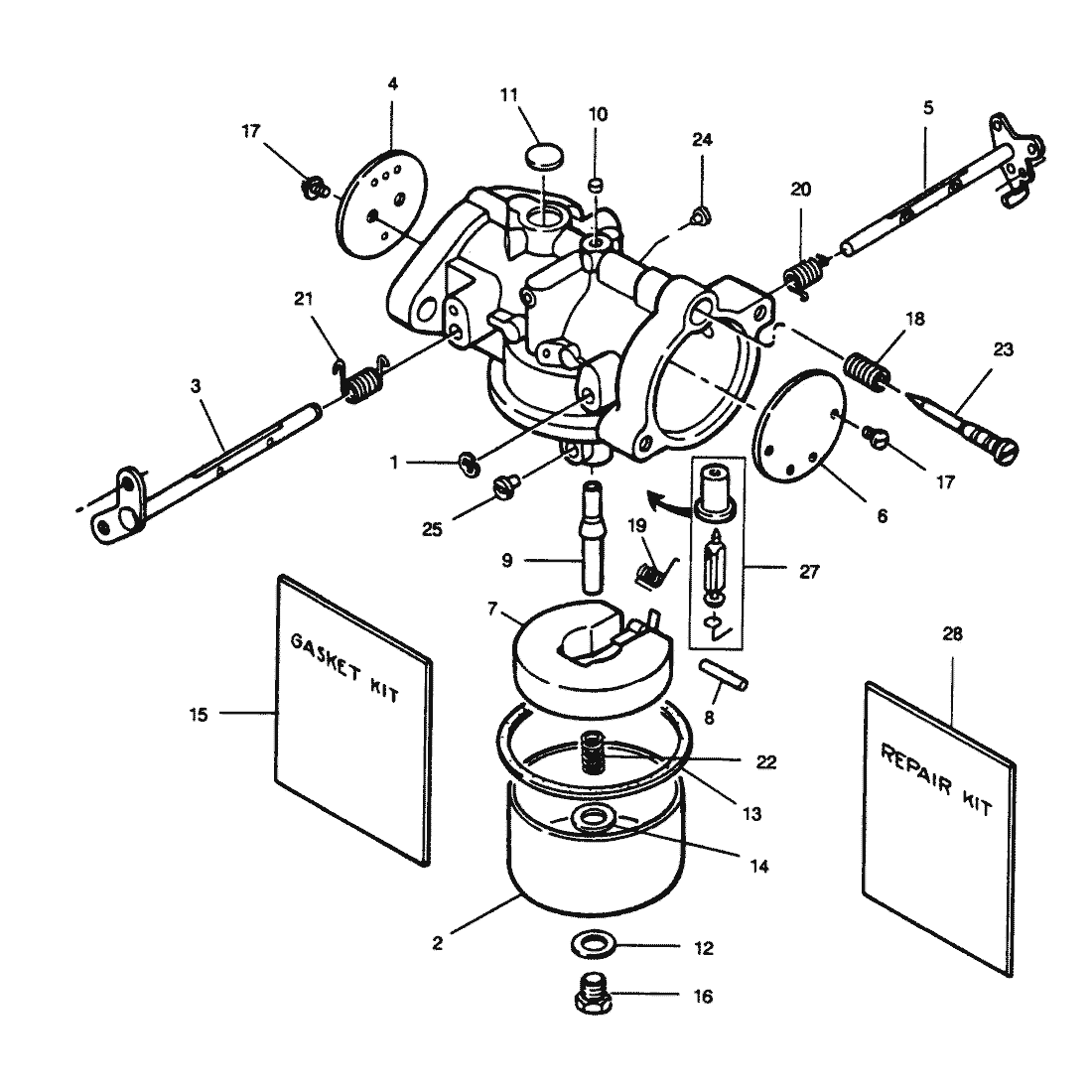

| 1 | F10241 | SHAFT RING RETAINER | F10218 | SS |
|
$0.00 | $0.00 | 1 | |
| 2 | F10333 | FUEL BOWL | F10127 | SS |
|
$33.67 | $33.06 | 1 | |
| 3 | F10168 | THROTTLE SHAFT ASSEMBLY | NLA |
|
$0.00 | $0.00 | 1 | ||
| 4 | F10169 | THROTTLE VALVE | NLA |
|
$0.00 | $0.00 | 1 | ||
| 5 | F10219 | CHOKE SHAFT ASSEMBLY | NLA |
|
$0.00 | $0.00 | 1 | ||
| 6 | F10161 | CHOKE VALVE | NLA |
|
$0.00 | $0.00 | 1 | ||
| 7 | F10135 | FLOAT ASSEMBLY | NLA |
|
$0.00 | $0.00 | 1 | ||
| 8 | F10208 | PIN, FLOAT ASSEMBLY | NLA |
|
$0.00 | $0.00 | 1 | ||
| 9 | F10137 | NOZZLE | NLA |
|
$0.00 | $0.00 | 1 | ||
| 10 | F10152 | CUP PLUG | NLA |
|
$0.00 | $0.00 | 2 | ||
| 11 | F10153 | WELCH PLUG | ACT | $2.39 | $2.33 | 2 | |||
| 12 | F10090 | BOWL RETAINER GASKET | F10206 | SS |
|
$3.70 | $3.61 | 1 | |
| 13 | FO15623 | BOWL RING GASKET | ACT | $4.30 | $4.20 | 1 | |||
| 14 | F10090 | BOWL RETAINER GASKET | ACT | $3.70 | $3.61 | 1 | |||
| 15 | FK10209 | GASKET KIT. | ACT |
|
$7.90 | $7.71 | 1 | ||
| 16 | 9025 | BOWL RETAINER SCREW | F10205 | SS |
|
$0.00 | $0.00 | 1 | |
| 17 | F10155 | CHOKE AND THROTTLE SCREW | ACT | $2.81 | $2.75 | 4 | |||
| 18 | 6103 | IDLE NEEDLE SPRING | F10141 | SS |
|
$0.00 | $0.00 | 1 | |
| 19 | F10142 | FLOAT SUPPORT SPRING | NLA |
|
$0.00 | $0.00 | 1 | ||
| 20 | F10143 | CHOKE VALVE SPRING | NLA |
|
$0.00 | $0.00 | 1 | ||
| 21 | F10172 | THROTTLE RETURN SPRING | NLA |
|
$0.00 | $0.00 | 1 | ||
| 22 | F10204 | NOZZLE SPRING | NLA |
|
$0.00 | $0.00 | 1 | ||
| 23 | FO14166 | NEEDLE, IDLE | ACT | $13.10 | $12.78 | 1 | |||
| 24 | 7831 | JET (.058) | FO15337 | SS |
|
$17.40 | $16.97 | 1 | |
| 25 | 3794 | MAIN FUEL JET (.074) SEA LEVEL - 2500 FT. | F10212 | SS |
|
$4.10 | $4.00 | 1 | |
| - | 6207 | ----072) 2500 - 5000 FT. | F10213 | SS |
|
$14.10 | $13.75 | ||
| - | 6030 | ----070) 5000 - 7500 FT. | F10214 | SS |
|
$4.10 | $4.00 | ||
| - | 6029 | ----068) 7500 - 10,000 FT. | F10215 | SS |
|
$4.10 | $4.00 | ||
| 27 | F10234 | FLOAT KIT, VALVE & SEAT | ACT | $11.90 | $11.61 | 1 | |||
| 28 | FK10125 | REPAIR KIT. | NLA |
|
$0.00 | $0.00 | 1 | ||
| - | 803920T | CARBURETOR COMPLETE (TOP) WE 18-1C | F631061-4 | SS |
|
$0.00 | $0.00 | 1 | |
| - | 803921T | CARBURETOR COMPLETE (MIDDLE) WE 18-2C | F632061-4 | SS |
|
$0.00 | $0.00 | 1 | |
| - | 803921T | CARBURETOR COMPLETE (BOTTOM) WE 18-2C | F632061-4 | SS |
|
$0.00 | $0.00 | 1 |
