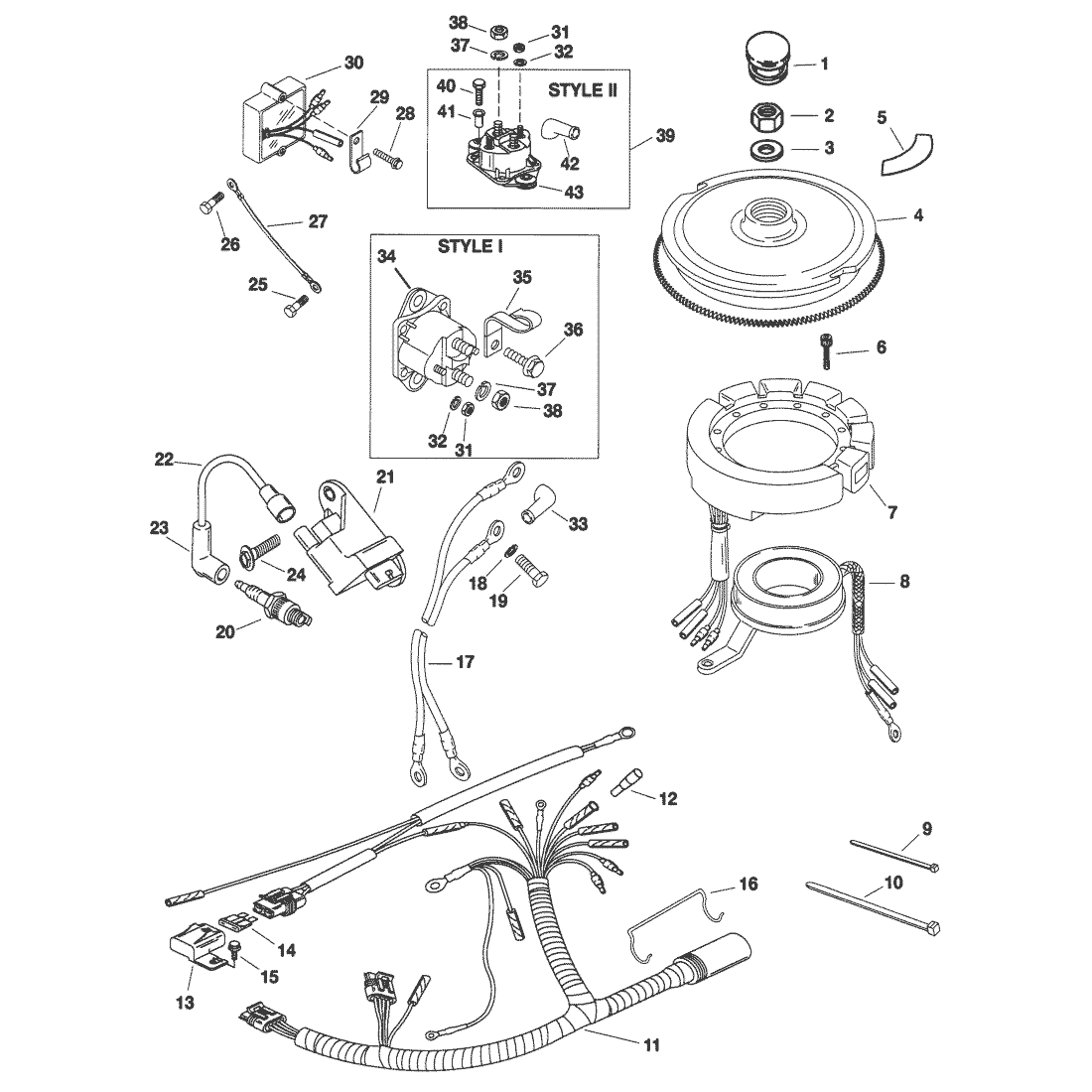

| Ref # | Current Part Nbr |
Description | Superceded From |
Status | Notes | List Price |
Online Price |
Quan Used |
Order Quan |
|---|---|---|---|---|---|---|---|---|---|
| 1 | 45907 | PLUG (Yellow)-Crankshaft/Flywheel | ACT | $7.10 | $6.93 | 1 | |||
| 2 | 42979 | NUT (M16) | ACT |
|
$4.50 | $4.39 | 1 | ||
| 3 | 33001 | WASHER | 68229 | SS |
|
$11.60 | $11.32 | 1 | |
| 4 | 9008A52 | FLYWHEEL ASSEMBLY | 9008A34 | SS |
|
$0.00 | $0.00 | 1 | |
| 5 | 825149A1 | --DECAL KIT-Shift to Neutral | FA609853 | SS |
|
$235.98 | $222.21 | 1 | |
| 6 | 19926100 | SCREW (#10-24 x 1.00) With Dri Lok | ACT |
|
$4.99 | $4.88 | 6 | ||
| 7 | 832075A21 | STATOR ASSEMBLY | 9873A28 | SS |
|
$402.99 | $376.56 | 1 | |
| 7 | 832075A21 | STATOR ASSEMBLY | 832075A4 | SS |
|
$402.99 | $376.56 | 1 | |
| 8 | 855744A2 | TRIGGER ASSEMBLY | 828301 | SS |
|
$195.00 | $183.64 | 1 | |
| 9 | 56762 | CABLE TIE (4.00 In.) | ACT | $0.50 | $0.49 | AR | |||
| 10 | 816311T | CABLE TIE (8.00 In.) | 816311 | SS |
|
$0.59 | $0.58 | AR | |
| 11 | 828296A1 | HARNESS ASSEMBLY-Wiring | ACT |
|
$214.17 | $201.69 | 1 | ||
| 12 | 13541 | --PLUG-Male | ACT | $3.20 | $3.13 | 1 | |||
| 13 | 828054 | --COVER-Fuse | ACT | $5.90 | $5.76 | 1 | |||
| 14 | 812619 | --FUSE (20 AMP) | ACT | $4.70 | $4.59 | 1 | |||
| 15 | 878608 | SCREW (#10-16 x .500) | 812832 | SS |
|
$1.70 | $1.66 | 1 | |
| 16 | 92753 | RETAINER-Harness Connector | ACT | $3.70 | $3.61 | 1 | |||
| 17 | 8M0210761 | CABLE-Battery | F381896-4 | SS |
|
$129.92 | $122.35 | 1 | |
| 18 | 53166 | LOCKWASHER (.312)-Ground | ACT | $1.80 | $1.76 | 1 | |||
| 19 | 39349 | SCREW (.312-18 x .750)-Ground | ACT | $1.80 | $1.76 | 1 | |||
| 20 | 896329827 | SPARK PLUG (CHAMPION # L76V) | 827C | SS |
|
$15.59 | $15.22 | 2 | |
| 20 | 896329898 | SPARK PLUG (RFI) (CHAMPION # QL76V) | 898 | SS |
|
$19.69 | $19.21 | 2 | |
| 21 | 827509A10 | CDM MODULE ASSEMBLY-Ignition | 827509A4 | SS |
|
$0.00 | $0.00 | 2 | |
| 22 | 821945A61 | --CABLE ASY-High Tension (Cut as Req'd) | ACT |
|
$17.67 | $17.29 | 2 | ||
| 23 | 63709A1 | ----BOOT/TERMINAL KIT-Ignition Cable | ACT | $8.20 | $8.00 | 2 | |||
| 24 | 90192 | SCREW (.250-20 x .750) | ACT | $1.80 | $1.76 | 4 | |||
| 25 | 40056105 | SCREW (M5 x 10)-Ground Cable | ACT | $1.21 | $1.19 | 1 | |||
| 26 | 878607 | SCREW (#10-16 x .375) | 817626 | SS |
|
$1.10 | $1.08 | 1 | |
| 27 | 88807A36 | CABLE ASSEMBLY-Ground-Exhaust Cover | NLA |
|
$0.00 | $0.00 | 1 | ||
| 28 | 86885 | SCREW (.250-20 x 1.500) | ACT | $3.20 | $3.13 | 2 | |||
| 29 | 8M0024808 | J CLIP-Voltage Regulator | 55098 | SS |
|
$8.20 | $8.00 | 1 | |
| 30 | 883071A1 | VOLTAGE REGULATOR | 815279T5 | SS |
|
$372.42 | $350.71 | 1 | |
| 31 | 68219 | NUT (#10-32) | ACT | $3.00 | $2.93 | 2 | |||
| 32 | 26996 | LOCKWASHER (#10) | ACT | $1.20 | $1.18 | 2 | |||
| 33 | 830233 | BOOT (RED)-Starter Relay Insulator | ACT | $4.70 | $4.59 | 1 | |||
| 34 | 817109A3 | RELAY-Starter | F460917-1 | SS |
|
$82.83 | $79.67 | 1 | |
| 35 | 8M0024808 | J CLIP-Starter Relay | 65292 | SS |
|
$8.20 | $8.00 | 1 | |
| 36 | 90192 | SCREW (.250-20 x .750) | ACT |
|
$1.80 | $1.76 | 2 | ||
| 37 | 53166 | LOCKWASHER (.312) | ACT | $1.80 | $1.76 | 2 | |||
| 38 | 8M0204668 | NUT (.312-18) | 68292 | SS |
|
$3.80 | $3.71 | 2 | |
| 39 | 817109A3 | SOLENOID KIT-Starter | ACT |
|
$82.83 | $79.67 | 1 | ||
| 40 | 853652 | --SCREW (.250-20 x 1.125) | ACT |
|
$1.10 | $1.08 | 2 | ||
| 41 | 8M0214955 | --BUSHING | 818968 | SS |
|
$2.90 | $2.83 | 2 | |
| 42 | 830233 | --BOOT | ACT |
|
$4.70 | $4.59 | 1 | ||
| 43 | 822179 | --GROMMET | ACT |
|
$4.50 | $4.39 | 2 |
