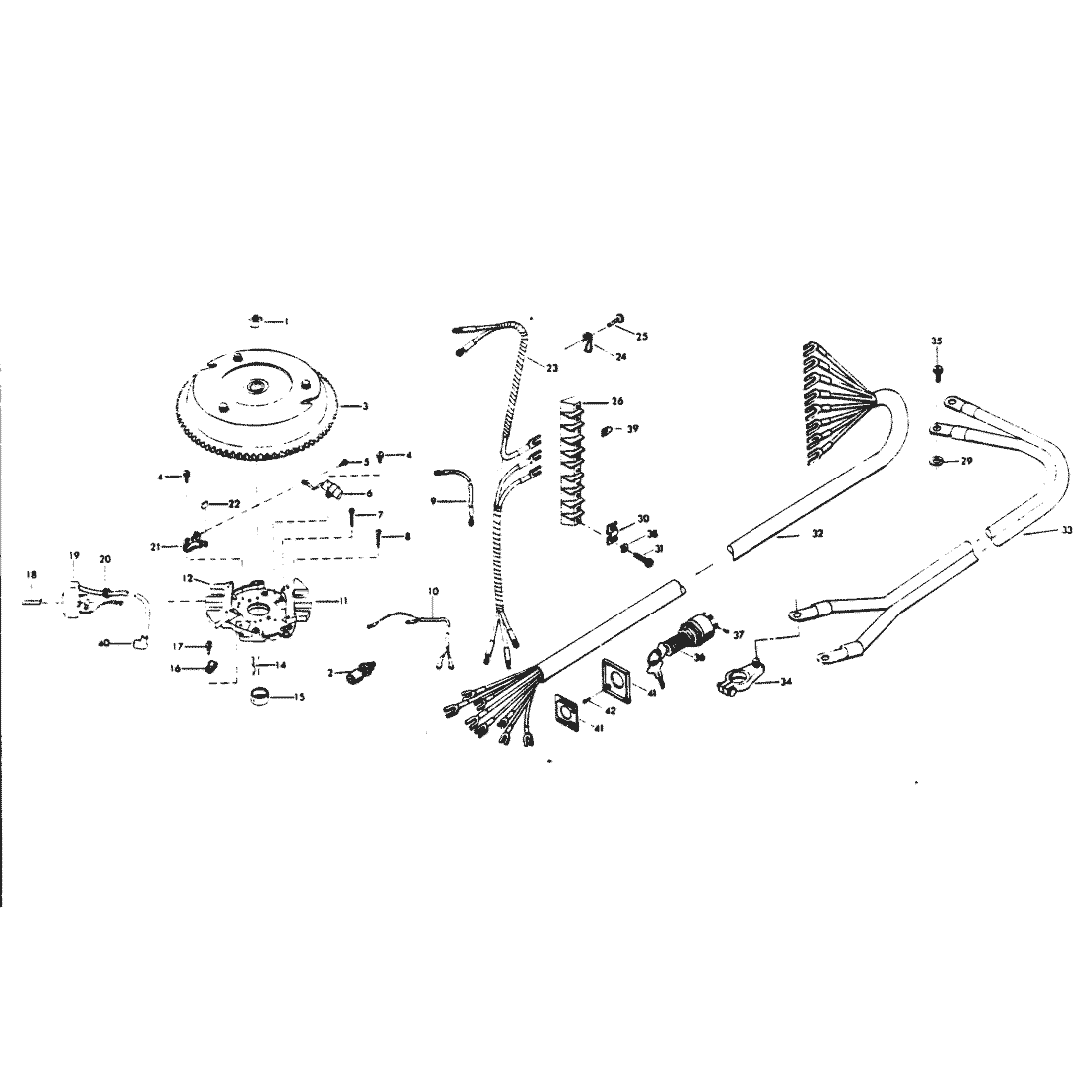

| Ref # | Current Part Nbr | Description | Superceded From | Status | Notes | List Price | Online Price | Quan Used | Order Quan |
|---|---|---|---|---|---|---|---|---|---|
| 1 | 8M0214915 | HEX NUT, 5/8 - 18 | F1920 | SS |  | $8.10 | $7.90 | 1 | |
| 2 | 824440A18 | SHORTING SWITCH | F436449 | SS | | $15.96 | $15.61 | 1 | |
| 3 | NSS | FLYWHEEL AND STARTER GEAR | | $0.00 | $0.00 | 1 | |||
| 4 | FK12014 | BREAKER POINT & CONDENSER MOUNTING SCREW, 8 - 32 X 3/8 | F12014 | SS | | $0.59 | $0.58 | 6 | |
| 5 | F1300 | BREAKER POINT TERMINAL SCREW, 6 - 32 X 3/8 | NLA | | $0.37 | $0.37 | 2 | ||
| 6 | F12042-1 | CONDENSER W/MOUNT | NLA | | $8.83 | $8.62 | 2 | ||
| 7 | F1926 | LAMINATION SCREW, 8 - 32 X 7/8 | NLA | | $0.53 | $0.52 | 2 | ||
| 8 | F12023 | LAMINATION SCREW, 10 - 24 X 1 | NLA | | $0.58 | $0.57 | 2 | ||
| 9 | F460664 | WIRE, STATOR GROUND | NLA | | $4.31 | $4.20 | 1 | ||
| 10 | F12059 | PRIMARY TERMINAL WIRE | NLA | | $0.00 | $0.00 | 1 | ||
| 11 | F12342 | STATOR PLATE WITHOUT LAMINATIONS | NLA | | $23.36 | $22.95 | 1 | ||
| 12 | F12341 | COIL LAMINATIONS | NLA | | $13.34 | $13.10 | 2 | ||
| 14 | F92498 | KEY | ACT | $29.58 | $29.05 | 1 | |||
| 15 | F93002 | CAM | NLA | | $43.34 | $42.57 | 1 | ||
| 16 | F12246 | CABLE CLIP | NLA | | $1.00 | $0.98 | 1 | ||
| 17 | F12016 | CABLE CLIP SCREW, 8 - 32 X 1/2 | NLA | | $0.00 | $0.00 | 1 | ||
| 18 | F12053 | COIL RETAINING CLIP | NLA | | $1.09 | $1.07 | 2 | ||
| 19 | F12057 | COIL W/LEAD WIRE, SPARKIE AND GROMMET | NLA | | $135.29 | $125.14 | 2 | ||
| 20 | F12050 | GROMMET | NLA | | $0.00 | $0.00 | 2 | ||
| 21 | F12044 | BREAKER POINT SET | NLA | | $62.78 | $60.37 | 2 | ||
| 22 | F12227 | CAM WIPER FELT | NLA | | $1.47 | $1.44 | 2 | ||
| 23 | F307744-1 | WIRING HARNESS | NLA | | $0.00 | $0.00 | 1 | ||
| 24 | 65653 | CLAMP | F92446 | SS | | $4.80 | $4.69 | 1 | |
| 25 | 20540 | SLOTTED FILL HD M. SCREW, 1/4 - 20 X 5/8 | F1110 | SS | | $0.75 | $0.74 | 1 | |
| 26 | FA510497 | TERMINAL BLOCK | NLA | | $15.28 | $14.98 | 1 | ||
| 29 | 53166 | SPRING LOCKWASHER | F8096 | SS | | $1.70 | $1.66 | 1 | |
| 30 | F307317 | CLIP, TERMINAL BLOCK GROUND | NLA | | $1.16 | $1.14 | 1 | ||
| 31 | 41069 | SLOTTED PAN HD M. SCREW, 10 - 24 X 3/4 | F1648 | SS | | $1.90 | $1.86 | 2 | |
| 32 | F85843-1 | ELECTRIC CONTROL CABLE | NLA | | $161.23 | $149.08 | 1 | ||
| 33 | 8M0210761 | BATTERY CABLE | F381896-4 | SS | | $124.92 | $117.64 | 1 | |
| 34 | F5H041 | BATTERY TERMINAL KIT (ACCESSORY ITEM) | F71H26 | SS | | $17.06 | $16.76 | 1 | |
| 35 | 90285 | HEX CAP SCREW, 5/16 - 18 X 5/8 | F1857 | SS | | $1.70 | $1.66 | 1 | |
| 36 | F5H078 | IGNITION SWITCH (ACCESSORY ITEM) | F74H20 | SS | | $116.92 | $110.11 | 1 | |
| 37 | 8M0129582 | PAN HD SCREW, 8 - 32 X 1/4 | F1280 | SS | | $0.57 | $0.56 | 6 | |
| 38 | 26996 | SPRING LOCKWASHER | F1975 | SS | | $1.20 | $1.18 | 2 | |
| 39 | F296898 | TERMINAL, MALE SLIDE | NLA | | $0.53 | $0.53 | 2 | ||
| 40 | 63709A1 | SPARKIE KIT | FK750-1 | SS | | $7.90 | $7.71 | 2 | |
| 41 | F5H038 | IGNITION SWITCH MOUNTING KIT (ACCESSORY ITEM) | F71H21 | SS | | $4.25 | $4.18 | 1 | |
| 42 | F1934 | FLAT HD SLOTTED SCREW, 6 X 1/2 | NLA | | $0.59 | $0.58 | 4 | ||
| - | F94914 | SLEEVE, STATOR GROUND WIRE (NOT SHOWN) | NLA | | $0.00 | $0.00 | 1 | ||
| - | F289398-1 | DECAL, WIRING (NOT SHOWN) | NLA | | $0.00 | $0.00 | 1 | ||
| - | 12066Q10 | EMERGENCY STARTER ROPE W/HANDLE (NOT SHOWN) | FA27232 | SS | | $13.09 | $12.78 | 1 |
