| Ref # | Current Part Nbr |
Description | Superceded From |
Status | Notes | List Price |
Online Price |
Quan Used |
Order Quan |
|---|---|---|---|---|---|---|---|---|---|

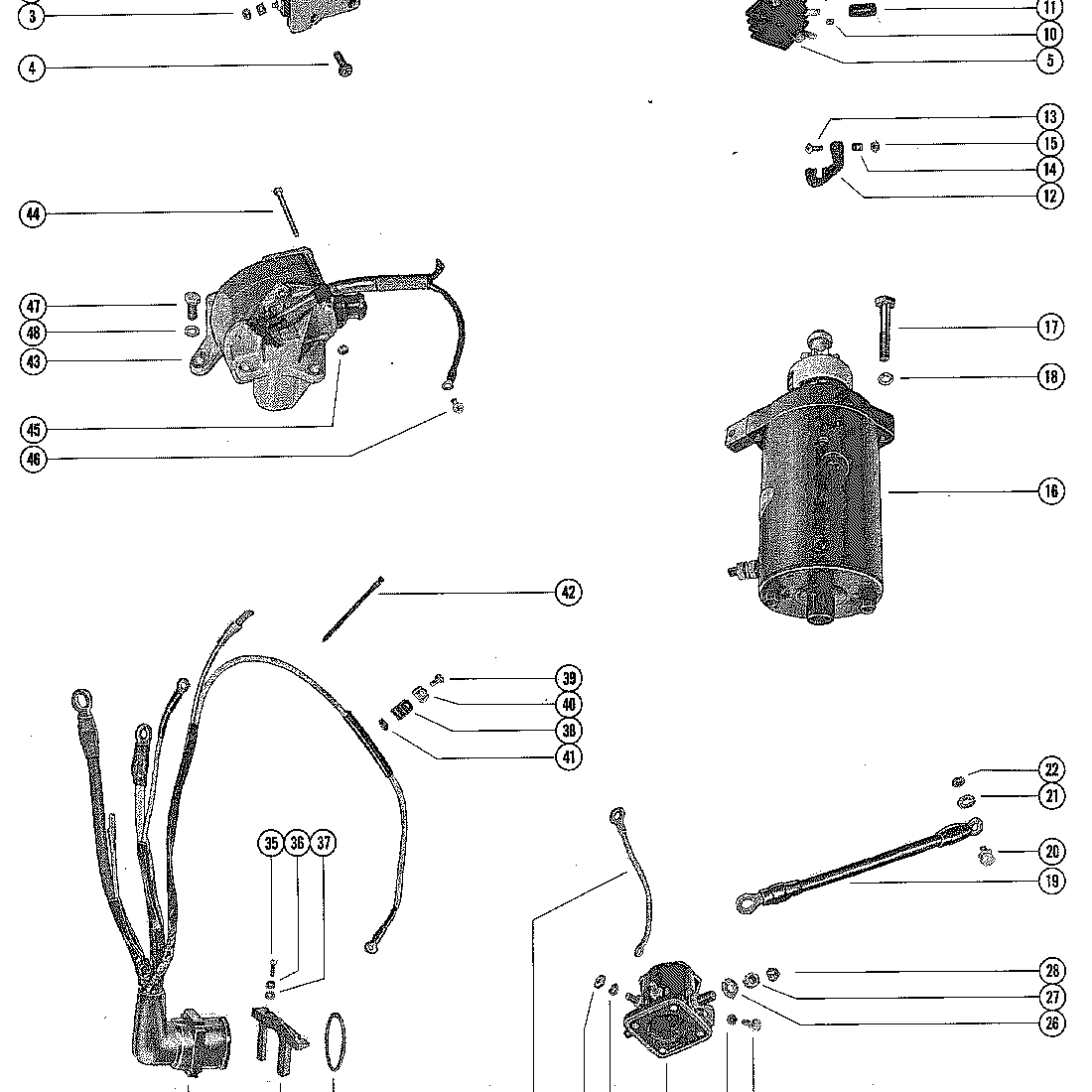

| 1 | 3213A3 | SWITCH BOX ASSEMBLY, COMPLETE | ACT | $496.64 | $474.72 | 1 | |||
| 2 | 45075 | WASHER, SWITCH BOX TERMINAL | NLA |
|
$0.00 | $0.00 | 4 | ||
| 3 | 45076 | NUT, SWITCH BOX TERMINAL | ACT | $1.80 | $1.76 | 4 | |||
| 4 | 69030 | SCREW, SWITCH BOX TO FRONT SUPPORT BRACKET (5/8") | 58641 | SS |
|
$0.00 | $0.00 | 4 | |
| 5 | 8M0058226 | RECTIFIER ELECTRIC | 49184 | SS |
|
$90.92 | $88.03 | 1 | |
| 6 | 8M0204647 | --LOCKWASHER, RECTIFIER TO FRONT BRACKET ELECTRIC | 26993 | SS |
|
$1.80 | $1.76 | 1 | |
| 7 | 20922 | --NUT, RECTIFIER TO FRONT BRACKET ELECTRIC | NLA |
|
$0.00 | $0.00 | 1 | ||
| 8 | 28458 | SPACER, RECTIFIER TO FRONT BRACKET ELECTRIC | NLA |
|
$0.00 | $0.00 | 1 | ||
| 9 | 20055 | SCREW, RECTIFIER TERMINALS (3/8") ELECTRIC | NLA |
|
$0.00 | $0.00 | 3 | ||
| 10 | 8M0204718 | NUT, RECTIFIER TERMINALS ELECTRIC | 29488 | SS |
|
$4.70 | $4.59 | 3 | |
| 11 | 28373 | SLEEVE, RECTIFIER TERMINALS ELECTRIC | NLA |
|
$0.00 | $0.00 | 3 | ||
| 12 | 59757 | BRACKET, RETAINER - HIGH TENSION LEAD | NLA |
|
$0.00 | $0.00 | 1 | ||
| 13 | 24933 | SCREW, RETAINER BRACKET TO SUPPORT BRACKET (1 1/2") | NLA |
|
$0.00 | $0.00 | 1 | ||
| 14 | 33070 | SPACER, RETAINER BRACKET TO SUPPORT BRACKET | NLA |
|
$0.00 | $0.00 | 1 | ||
| 15 | 8M0207775 | NUT, RETAINER BRACKET SCREW | 46887 | SS |
|
$9.80 | $9.56 | 1 | |
| 16 | 898265006 | STARTER MOTOR ASSEMBLY - ELECTRIC | 38890A1 | SS |
|
$291.17 | $274.20 | 1 | |
| 16 | 898265006 | STARTER MOTOR ASSEMBLY - ELECTRIC | 55601 | SS |
|
$291.17 | $274.20 | 1 | |
| 17 | 52446 | SCREW, STARTER MOTOR TO CRANKCASE FLANGE (1 5/8") ELECTRIC | NLA |
|
$0.00 | $0.00 | 2 | ||
| 18 | 8M0204647 | LOCKWASHER, STARTER MOTOR SCREW ELECTRIC | 26993 | SS |
|
$1.80 | $1.76 | 2 | |
| 19 | 93389A12 | WIRE, STARTER MOTOR TO SOLENOID AND TOP MOUNT ELECTRIC | 25596 | SS |
|
$0.00 | $0.00 | 1 | |
| 20 | 69035 | SCREW, GROUND WIRE TO STARTER MOTOR (5/8") ELECTRIC | 29197 | SS |
|
$1.80 | $1.76 | 1 | |
| 21 | 26992 | LOCKWASHER, GROUND WIRE FASTENING SCREW ELECTRIC | ACT | $1.20 | $1.18 | 1 | |||
| 22 | 20890 | NUT, GROUND WIRE SCREW ELECTRIC | ACT | $1.70 | $1.66 | 1 | |||
| 23 | 32445A1 | STARTER SOLENOID - ELECTRIC | 32445 | SS |
|
$0.00 | $0.00 | 1 | |
| 23 | 25661T1 | STARTER SOLENOID - ELECTRIC | 25661 | SS |
|
$69.42 | $66.77 | 1 | |
| 24 | 26996 | LOCKWASHER, SOLENOID TERMINAL (#10) ELECTRIC | ACT | $1.20 | $1.18 | 2 | |||
| 25 | 68219 | NUT, SOLENOID TERMINAL (#10) ELECTRIC | 20645 | SS |
|
$3.00 | $2.93 | 2 | |
| 26 | 8M0204647 | LOCKWASHER, SOLENOID TERMINAL (5/16") ELECTRIC | 26993 | SS |
|
$1.80 | $1.76 | 2 | |
| 27 | 22053 | NUT, SOLENOID TERMINAL - INSIDE (5/16") ELECTRIC | 20083 | SS |
|
$0.21 | $0.21 | 1 | |
| 28 | 26062 | NUT, CAP - SOLENOID TERMINAL - OUTSIDE (5/16") ELECTRIC | NLA |
|
$0.00 | $0.00 | 1 | ||
| 29 | 29238 | SCREW, SOLENOID TO STARTER MOTOR (5/8") | 31208 | SS |
|
$0.00 | $0.00 | 2 | |
| 29 | 69028 | SCREW, SOLENOID TO SUPPORT BRACKET (3/4") | 21625 | SS |
|
$2.90 | $2.83 | 2 | |
| 30 | 8M0207775 | NUT, STARTER SOLENOID SCREW ELECTRIC | 46887 | SS |
|
$9.80 | $9.56 | 2 | |
| 31 | 46715 | GROUND STRAP ASSEMBLY ELECTRIC | NLA |
|
$0.00 | $0.00 | 1 | ||
| 32 | 52770A1 | WIRING HARNESS (INTERNAL) ELECTRIC | 52770 | SS |
|
$148.58 | $139.93 | 1 | |
| 33 | 28975 | SPRING, GARTER - INTERNAL WIRING HARNESS ELECTRIC | NLA |
|
$0.00 | $0.00 | 1 | ||
| 34 | 76368 | CLAMP, WIRING HARNESS ELECTRIC | 52876 | SS |
|
$0.00 | $0.00 | 1 | |
| 35 | 45862 | SCREW, WIRING HARNESS CLAMP TO BOTTOM COWL (7/8") ELECTRIC | ACT | $1.40 | $1.37 | 2 | |||
| 36 | 26996 | LOCKWASHER, WIRING HARNESS CLAMP SCREW ELECTRIC | ACT | $1.20 | $1.18 | 2 | |||
| 37 | 847883 | WASHER, WIRING HARNESS CLAMP SCREW ELECTRIC | 20128 | SS |
|
$5.20 | $5.08 | 2 | |
| 38 | 26550 | CLIP, WIRING HARNESS LEAD | ACT |
|
$4.80 | $4.69 | 1 | ||
| 39 | 29072 | SCREW, WIRING HARNESS LEAD CLIP ATTACHING (5/8") | NLA |
|
$0.00 | $0.00 | 1 | ||
| 40 | 8M0084613 | "D" WASHER, HARNESS LEAD CLIP ATTACHING SCREW | 22789 | SS |
|
$1.10 | $1.08 | 1 | |
| 41 | 24656 | NUT, WIRING HARNESS LEAD CLIP ATTACHING SCREW | NLA |
|
$0.00 | $0.00 | 1 | ||
| 42 | 61990 | STA-STRAP, WIRING HARNESS ELECTRIC | 47764 | SS |
|
$0.80 | $0.79 | 1 | |
| 43 | 4895A6 | IGNITION COIL ASSEMBLY, COMPLETE | 2983A8 | SS |
|
$0.00 | $0.00 | 1 | |
| 43 | 4895A6 | IGNITION COIL ASSEMBLY, COMPLETE | 2983A20 | SS |
|
$0.00 | $0.00 | 1 | |
| 44 | 46368 | --SCREW, IGNITION COIL CLAMPING | NLA |
|
$0.00 | $0.00 | 2 | ||
| 45 | 8267086 | --NUT, IGNITION COIL CLAMPING SCREW | 20190 | SS |
|
$1.70 | $1.66 | 2 | |
| 46 | 45218 | SCREW, IGNITION COIL WIRE TO SWITCH BOX (3/8") | NLA |
|
$0.73 | $0.72 | 1 | ||
| 47 | 36137 | SCREW, IGNITION COIL TO BOTTOM COWL (1") | ACT | $2.90 | $2.83 | 3 | |||
| 48 | 26992 | LOCKWASHER, IGNITION COIL SCREW | ACT | $1.20 | $1.18 | 3 |
