| Ref # | Current Part Nbr |
Description | Superceded From |
Status | Notes | List Price |
Online Price |
Quan Used |
Order Quan |
|---|---|---|---|---|---|---|---|---|---|

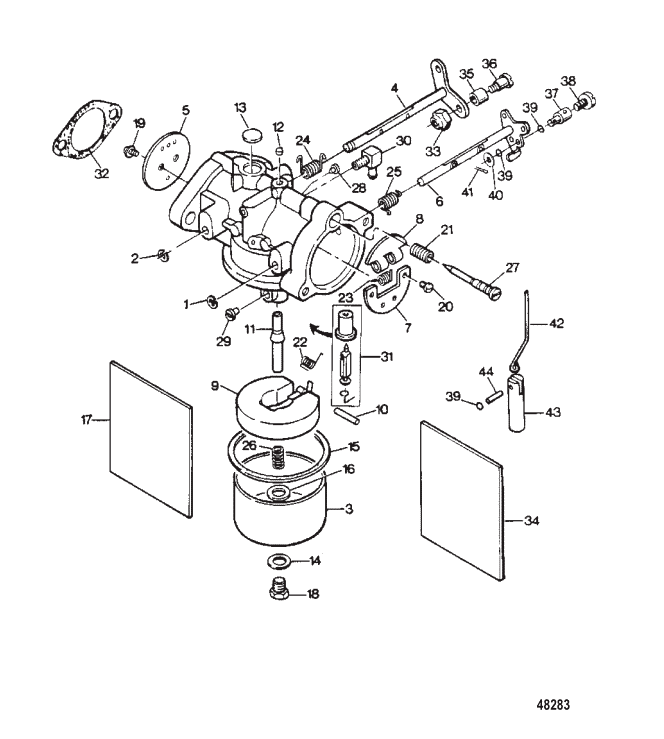

| - | 803907T | CARBURETOR COMPLETE (WE-15) | F627061 | SS/NLA |
|
$0.00 | $0.00 | 1 | |
| 1 | F10241 | RETAINER Shaft Ring | F10218 | SS/NLA |
|
$0.00 | $0.00 | 1 | |
| 2 | FO16620 | E RING | NLA |
|
$0.00 | $0.00 | 1 | ||
| 3 | F10333 | BOWL Fuel | F10127 | SS |
|
$33.67 | $33.06 | 1 | |
| 4 | F10132 | SHAFT AND LEVER Throttle | NLA |
|
$0.00 | $0.00 | 1 | ||
| 5 | 5666 | SHUTTER Throttle | F10133 | SS/NLA |
|
$0.00 | $0.00 | 1 | |
| 6 | F10134 | SHAFT AND LEVER Choke | NLA |
|
$0.00 | $0.00 | 1 | ||
| 7 | FO15725 | VALVE Choke Relief | NLA |
|
$0.00 | $0.00 | 1 | ||
| 8 | FO15724 | SHUTTER Choke | NLA |
|
$0.00 | $0.00 | 1 | ||
| 9 | F10135 | FLOAT | NLA |
|
$0.00 | $0.00 | 1 | ||
| 10 | F10208 | PIN | NLA |
|
$0.00 | $0.00 | 1 | ||
| 11 | F10137 | NOZZLE Main | NLA |
|
$0.00 | $0.00 | 1 | ||
| 12 | F10152 | PLUG Cup - Body Channel | NLA |
|
$0.00 | $0.00 | 2 | ||
| 13 | F10153 | WELCH PLUG Body Channel | ACT | $2.39 | $2.33 | 1 | |||
| 14 | F10067 | GASKET | ACT | $3.70 | $3.61 | 1 | |||
| 15 | FO15623 | GASKET | ACT | $4.30 | $4.20 | 1 | |||
| 16 | F10090 | GASKET Bowl Retainer Screw | F10206 | SS |
|
$3.70 | $3.61 | 1 | |
| 17 | FK10209 | GASKET KIT | ACT | $7.90 | $7.71 | 1 | |||
| 18 | 9025 | SCREW Bowl Retainer | F10205 | SS/NLA |
|
$0.00 | $0.00 | 1 | |
| 19 | F10155 | SCREW Throttle Valve | ACT | $2.81 | $2.75 | 2 | |||
| 20 | F10140 | SCREW AND LOCKWASHER Choke Shutter Retaining | NLA |
|
$0.00 | $0.00 | 2 | ||
| 21 | 6103 | SPRING Idle Mixture Screw | F10141 | SS/NLA |
|
$0.00 | $0.00 | 1 | |
| 22 | F10142 | SPRING | NLA |
|
$0.00 | $0.00 | 1 | ||
| 23 | F10296 | SPRING Choke Relief Valve | F10130 | SS/NLA |
|
$0.00 | $0.00 | 1 | |
| 24 | F10143 | SPRING Choke Shaft Return | NLA |
|
$0.00 | $0.00 | 1 | ||
| 25 | F10144 | SPRING Throttle Shaft Return | NLA |
|
$0.00 | $0.00 | 1 | ||
| 26 | F10204 | SPRING Nozzle | NLA |
|
$0.00 | $0.00 | 1 | ||
| 27 | FO14166 | SCREW Idle | ACT | $13.10 | $12.78 | 1 | |||
| 28 | 6487 | JET (.060) | F10163 | SS |
|
$15.39 | $15.02 | 1 | |
| 29 | 3794 | JET Main Fuel (.074) - SEA LEVEL - 2500 FT. | F10212 | SS |
|
$4.10 | $4.00 | 1 | |
| - | 6207 | JET Main Fuel (.072) - 2500 - 5000 FT. | F10213 | SS |
|
$14.10 | $13.75 | ||
| - | 6030 | JET Main Fuel (.070) - 5000 - 7500 FT. | F10214 | SS |
|
$4.10 | $4.00 | ||
| - | 6029 | JET Main Fuel (.068) - 7500 - 10,000 FT. | F10215 | SS |
|
$4.10 | $4.00 | ||
| 30 | F10156 | ELBOW | NLA |
|
$0.00 | $0.00 | 1 | ||
| 31 | FK10120-1 | KIT | ACT | $38.17 | $37.48 | 1 | |||
| 32 | 828925 | GASKET Carburetor CARBURETOR | F40906-1 | SS |
|
$2.39 | $2.33 | 1 | |
| 33 | 8267094 | NUT (#8-32) | F1997 | SS |
|
$1.64 | $1.62 | 1 | |
| 34 | FK10202-1 | REPAIR KIT | FK10202 | SS/NLA |
|
$0.00 | $0.00 | 1 | |
| 35 | 819225 | ROLLER | F92759 | SS/NLA |
|
$0.00 | $0.00 | 1 | |
| 36 | 830110 | SHAFT | F333316 | SS/NLA |
|
$0.00 | $0.00 | 1 | |
| 37 | F184033-1 | SWIVEL | NLA |
|
$0.00 | $0.00 | 1 | ||
| 38 | F1059 | SCREW (#6-32 x .250) | NLA |
|
$0.00 | $0.00 | 1 | ||
| 39 | 68211 | SEAL | F184579 | SS |
|
$1.40 | $1.37 | 3 | |
| 40 | 27882 | WASHER | F8088 | SS |
|
$1.21 | $1.19 | 1 | |
| 41 | 26953 | COTTER PIN | F1014 | SS |
|
$4.20 | $4.10 | 1 | |
| 42 | F460925 | ROD | NLA |
|
$0.00 | $0.00 | 1 | ||
| 43 | F391926-1 | PLUNGER | NLA |
|
$29.23 | $28.73 | 1 | ||
| 44 | F2033 | PIN Groove | NLA |
|
$0.00 | $0.00 | 1 |
