Mercury-Mercruiser 8M0047215 Fuel Pump Module Service Kit Complete
This is a genuine Mercury Marine factory OEM part, not aftermarket
Please check for important install info, install instructions, current stock level and order below. Please use the Contact Us form at the bottom of the page for any questions.

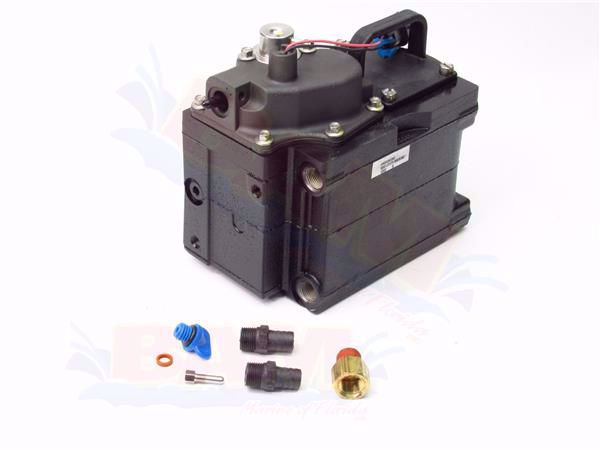

Mercruiser 8M0047215 Bravo Gen III Cool Fuel Pump Module Service Kit Complete
This Cool Fuel Supply Module Replacement Kit contains:
1 Gen III Cool Fuel Module Assembly
2 Plastic Barbed Hose Connector Fittings (3/8-18) #22-8M2010476
1 Adapter, hex 3/8" #88517
1 Screw 1/4-28 Special #10-866114
1 Drain Plug Assembly (.500-13) Blue #22-8M0103976
1 Seal #26-863151
The new Gen III Cool Fuel module has improved hose connections and replaces the original production Gen III Cool Fuel module. This new Gen III Cool Fuel module kit will service engines with the original and new versions of the Gen III Cool Fuel module. The primary difference between the designs is the method of connecting the cooling water hoses to the module. Threaded hose barb fittings are supplied with the new Gen III cool fuel module.
In order to use the new module on earlier applications, the cooling water hoses and various fittings must be replaced. Kits are available to accommodate the various possible hose configurations. See related items below.
Additional parts are required when replacing modules on engines with the original production Gen III Cool Fuel modules. See installation instructions and service bulletin above.
Mercruiser 8M0047215 Bravo Gen III Cool Fuel Pump Module Service Kit Complete
This Cool Fuel Supply Module Replacement Kit contains:
1 Gen III Cool Fuel Module Assembly
2 Plastic Barbed Hose Connector Fittings (3/8-18) #22-8M2010476
1 Adapter, hex 3/8" #88517
1 Screw 1/4-28 Special #10-866114
1 Drain Plug Assembly (.500-13) Blue #22-8M0103976
1 Seal #26-863151
The new Gen III Cool Fuel module has improved hose connections and replaces the original production Gen III Cool Fuel module. This new Gen III Cool Fuel module kit will service engines with the original and new versions of the Gen III Cool Fuel module. The primary difference between the designs is the method of connecting the cooling water hoses to the module. Threaded hose barb fittings are supplied with the new Gen III cool fuel module.
In order to use the new module on earlier applications, the cooling water hoses and various fittings must be replaced. Kits are available to accommodate the various possible hose configurations. See related items below.
Additional parts are required when replacing modules on engines with the original production Gen III Cool Fuel modules. See installation instructions and service bulletin above.
- 520 - 0M970122 & Up
- 540 - 0M970866 & Up
- 5.7L MPI TOWSPORT WITH GEN III - 1A091881 & Up
- 5.7L SKI EC - 1A090000 & Up
- 8.1L TOWSPORT (Base) - 1A380074 & Up
- SCORPION 350 EC - 0W698433 & Up
- SCORPION 377 HO EC - 1A091488 THRU 1A092170
- 5.7L MPI HORIZON MIE - 1A092169 & Up
- 5.7L MPI MIE - 1A092169 & Up
- 5.7L MPI MIE EC - 1A092169 & Up
- 6.2L MPI HORIZON MIE - 1A092169 & Up
- 6.2L MPI MIE - 1A092169 & Up
- 6.2L MPI MIE EC - 1A092169 & Up
- 8.1L INBOARD (Base) - 0W691821 THRU 1A380318
- 8.1L INBOARD (Base) EC - 0W697154 THRU 1A380251
- 8.1L INBOARD (H.O.) - 0W691821 THRU 1A380318
- 8.1L INBOARD (H.O.) EC - 0W697154 THRU 1A380251
- 350 MAG MPI ALPHA/BRAVO - 1A623185 & Up
- 350 MAG MPI ALPHA/BRAVO - 1A611928 THRU 1A623184
- 350 MAG MPI ALPHA/BRAVO EC - 1A623185 & Up
- 350 MAG MPI ALPHA/BRAVO EC - 1A611928 THRU 1A623184
- 350 MAG MPI HORIZON ALPHA/BRAVO EC - 1A623185 & Up
- 350 MAG MPI HORIZON ALPHA/BRAVO EC - 1A611928 THRU 1A623184
- 377 MAG MPI BRAVO - 1A623185 & Up
- 377 MAG MPI BRAVO - 1A611928 THRU 1A623184
- 377 MAG MPI BRAVO EC - 1A623185 & Up
- 377 MAG MPI BRAVO EC - 1A611928 THRU 1A623184
- 496 MAG (Base Model) - 1A350679 & Up
- 496 MAG (H.O. Model) - 1A350679 & Up
- 5.0L MPI ALPHA/BRAVO - 1A623185 & Up
- 5.0L MPI ALPHA/BRAVO - 1A611928 THRU 1A623184
- 5.0L MPI ALPHA/BRAVO EC - 1A623185 & Up
- 5.0L MPI ALPHA/BRAVO EC - 1A611928 THRU 1A623184
- 8.2L INBOARD (BASE) EC - 2A041665 & Up
- 8.2L INBOARD (Base) EC - 1A350802 THRU 2A041664
- 8.2L INBOARD (H.O.) EC - 2A041665 & Up
- 8.2L INBOARD (H.O.) EC - 1A350802 THRU 2A041664
- 8.2L Mag (Base Model) - 1A351597 & Up
- 8.2L Mag (H.O. Model) - 1A351597 & Up
- 8.2L Mag EC (Base Model) - 1A350340 THRU 2A041664
- 8.2L Mag EC (Base Model) - 2A051742 THRU 2A051742
- 8.2L Mag EC (Base Model) - 2A041665 THRU 2A051741
- 8.2L Mag EC (Base Model) - 2A051743 & Up
- 8.2L Mag EC (H.O. Model) - 1A350340 THRU 2A041664
- 8.2L Mag EC (H.O. Model) - 2A051741 THRU 2A051741
- 8.2L Mag EC (H.O. Model) - 2A041665 THRU 2A051740
- 8.2L Mag EC (H.O. Model) - 2A051742 & Up
- 496 H.O. BRAVO - 1G400000 & Up
- 8.1L INBOARD (Inline) - 1G300000 & Up
- 8.1L INBOARD (V-Drive) - 1G300000 & Up
Mercury-Mercruiser 26-863151 SEAL Quad Ring
The newest part number is 8M0214975 -click here- to see the newest superseded part
Please note the new superseded part is a functional replacement and may look different from the original part
