Mercury-Mercruiser 865108R80 ENG RM 383MAG BRV
Is no longer available
Manufacturer part number: 865108R80
GTIN: 745061819504
Normally Ships: NOT IN STOCK, NO LONGER MADE - WE DO NOT HAVE ANY
MSRP: $19,589.85
$18,218.57
Please see https://www.mercruiserparts.com/mercury-mercruiser-8m0187361-383-mpi-bra for a replacement engine.

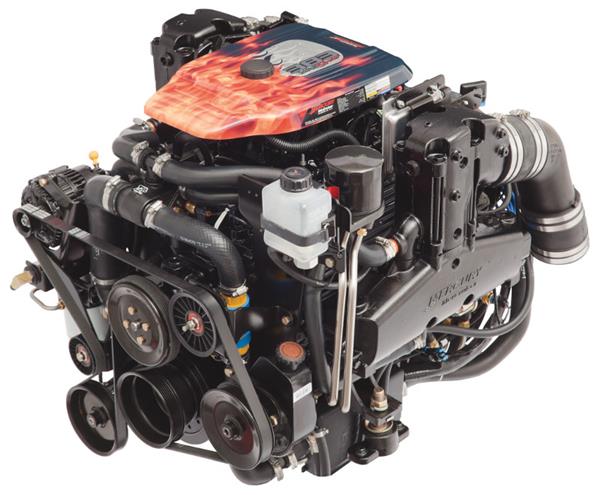

Mercury Remanufacturing Plus Series 350 HP @ 5200 RPM, 383 Cubic Inch Stroker Fully Dressed Factory Remanufactured Marine Engine. Features special flame graphics.
All PLUS‑SERIES engines are completely remanufactured and include exhaust manifolds, fuel, electrical and ignition systems so they are ready to rig into a boat.
**Trim pump, Y-pipe and steering cylinder sold separately.
Adapting Plus Series engines to specific applications may require some parts to be transferred from the engines coming out of the boat or purchased separately. Examples include:
• Transfer of flywheel housings, couplers, and other hardware to adapt to various makes of drives and transoms
• Changing engine couplers to match specific transmissions, or to your preferences
• Changing engine mounts from front to side, or using solid engine mounts
• Use of various Quicksilver kits to meet your preferences or the specified installation requirements found in the Repower Reference Manual included with the engine.
Plus Series engines from Mercury Remanufacturing come with a one year factory-backed, limited warranty and service is available at any of the nearly 5000 Mercury Mercruiser dealers in the US.
More info on Plus Series remanufactured engines can be found here
| HP / kW @ flywheel | |
|---|
| Maximum RPM (WOT) | |
|---|
| Engine type | - V-8 Remanufactured Iron Marine Block
|
|---|
| Displacement (CID/L) | |
|---|
| Bore and stroke | - 4.03 x 3.75" / 102 x 95 mm
|
|---|
| Compression ratio | |
|---|
| Fuel ethanol tolerance | |
|---|
| Engine control system | - ECM 555 W/Knock Control & Crankshaft Trigger
|
|---|
| Fuel delivery system | - GEN II Cool Fuel with Boost Pump
|
|---|
| Fuel injection system / carburetor type | - Multi-point electronic fuel injection (MPI)
|
|---|
| Air induction | - Two-piece long runner intake with 75 mm throttle body (80 mm w/DTS)
|
|---|
| Alternator amp / Watt | |
|---|
| Water drain system | |
|---|
| Exhaust system | - Electro-deposition paint coated warm iron manifold with dry joint elbow
|
|---|
| Cooling system | - 160F Raw Water Bravo with Sea Water Pump
|
|---|
| Accessory drive system | |
|---|
| Lubrication system | - High Flow 100 psi Oil Pump
|
|---|
| Recommended oil | - Mercury MerCruiser Synthetic Blend 25W-40, NMMA Certified FC-W Synthetic Blend
|
|---|
| Pistons | |
|---|
| Cranktrain | - Powder Metal Rods and Forged 4340 Steel Crankshaft
|
|---|
| Rocker arms | |
|---|
| Dimensions (L x W x H) | - 32 x 30 x 22" / 814 x 740 x 559 mm
|
|---|
| Weight (engine only) | |
|---|
Replaces 350 MAG, 6.2L MPI, 7.4L & 7.4L MPI sterndrive engines.
