| Ref # | Current Part Nbr |
Description | Superceded From |
Status | Notes | List Price |
Online Price |
Quan Used |
Order Quan |
|---|---|---|---|---|---|---|---|---|---|

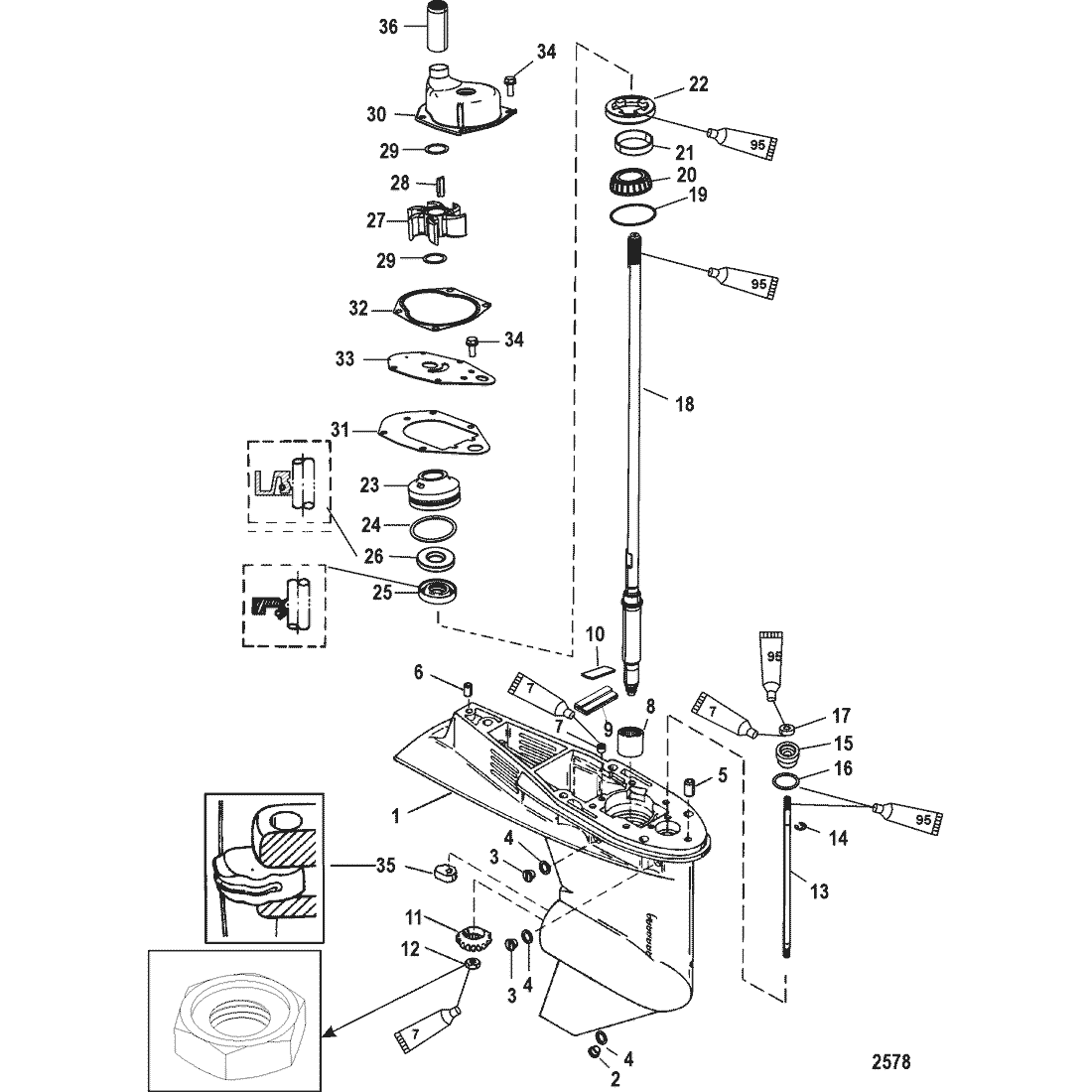

| - | 9760T44 | GEAR HOUSING ASSEMBLY, Complete (3.44 Inch/87.37 mm Torpedo Diameter) | 893507T04 | SS |
|
$3,007.15 | $2,756.71 | 1 | |
| 1 | 9760T42 | --GEAR HOUSING ASSEMBLY, Basic | 893507T03 | SS |
|
$1,749.58 | $1,603.87 | 1 | |
| 2 | 79953Q04 | ----SCREW KIT, (.375-16 x .250) Drain | 79953Q2 | SS |
|
$7.49 | $7.31 | 1 | |
| 3 | 79953Q04 | ----SCREW KIT, (.375-16 x .250) Drain | 79953Q2 | SS |
|
$7.49 | $7.31 | 2 | |
| 4 | 8M0204693 | ------SEAL | 830749 | SS |
|
$5.19 | $5.07 | 3 | |
| 5 | 8M0084244 | ----PIN, Dowel - With Hole (.375 x .625) | 43043 | SS |
|
$3.30 | $3.22 | 1 | |
| 6 | 43044 | ----PIN, Dowel - Without Hole (.375 x .625) | ACT | $2.50 | $2.44 | 1 | |||
| 7 | 878089 | ----PLUG, Pipe (.0625-27) | ACT | $15.70 | $15.31 | 1 | |||
| 8 | 812768 | ----BEARING, Roller | ACT | $26.08 | $25.62 | 1 | |||
| 9 | 818226A1 | ----SEAL/PLATE KIT | ACT |
|
$7.20 | $7.03 | 1 | ||
| 10 | NSS | ------NOT SOLD SEPARATE, Filler Plate |
|
$0.00 | $0.00 | 1 | |||
| 11 | 8M0187297 | --GEAR, Pinion | 893604T | SS |
|
$200.17 | $188.50 | 1 | |
| 12 | 55910 | --NUT, (.437-20) | ACT | $5.50 | $5.37 | 1 | |||
| 13 | 859607A1 | --SHIFT SHAFT ASSEMBLY | ACT |
|
$83.00 | $79.83 | 1 | ||
| 14 | 29641 | ----E RING | ACT | $1.80 | $1.76 | 1 | |||
| 15 | 813696A2 | --BUSHING ASSEMBLY | ACT |
|
$44.83 | $44.03 | 1 | ||
| 16 | 45258 | ----O-RING, (.987 x .103) | ACT | $3.60 | $3.52 | 1 | |||
| 17 | 8M0204708 | ----SEAL, Oil | 8164641 | SS |
|
$17.00 | $16.58 | 1 | |
| 18 | 859102 | --DRIVESHAFT, Long | ACT | $900.14 | $846.86 | 1 | |||
| 19 | 8M0063262 | --SHIM SET | 812770A1 | NLA |
|
$74.42 | $71.58 | AR | |
| 20 | 8M0166756 | --BEARING ASSEMBLY, Roller | 77420A1 | SS |
|
$46.75 | $45.91 | 1 | |
| 21 | NSS | ----NOT SOLD SEPARATE, Cup |
|
$0.00 | $0.00 | 1 | |||
| 22 | 8128201 | --NUT | ACT | $38.25 | $37.56 | 1 | |||
| 23 | 812966A7 | --BASE ASSEMBLY, Water Pump | ACT |
|
$83.99 | $80.50 | 1 | ||
| 24 | 8M0204651 | ----O-RING, (1.859 x .139) | 30224 | SS |
|
$4.19 | $4.10 | 1 | |
| 25 | 814669 | ----SEAL, Oil | ACT | $16.83 | $16.53 | 1 | |||
| 26 | 814670 | ----SEAL, Oil | ACT | $21.00 | $20.62 | 1 | |||
| 27 | 19453T | --IMPELLER | ACT | $55.99 | $54.02 | 1 | |||
| 28 | 8M0032831 | --KEY | 19699 | SS |
|
$4.60 | $4.50 | 1 | |
| 29 | 8M0204720 | --WASHER | 858234 | SS |
|
$1.80 | $1.76 | 2 | |
| 30 | 812966A12 | --PUMP ASSEMBLY, Water | 14334A3 | SS |
|
$181.99 | $169.94 | 1 | |
| 31 | 8M0224241 | ----GASKET (Lower) | 19701 | SS |
|
$6.80 | $6.64 | 1 | |
| 32 | 822189 | ----GASKET, Upper Water Pump (Upper) | ACT | $6.70 | $6.55 | 1 | |||
| 33 | 19700A2 | ----FACE PLATE | ACT | $17.70 | $17.35 | 1 | |||
| 34 | 8248324 | --SCREW, (M6 x 16) | ACT | $1.80 | $1.76 | 6 | |||
| 35 | 760394 | --CAM, Shift Control | ACT | $38.17 | $37.48 | 1 | |||
| 36 | 8M0151045 | --COUPLER | 8597701 | SS |
|
$16.40 | $16.00 | 1 | |
| - | 814669A2 | SEAL KIT, Gear Housing | ACT | $75.25 | $72.38 | 1 | |||
| - | 812966A12 | REPAIR KIT, Water Pump | ACT | $181.99 | $169.94 | 1 |
