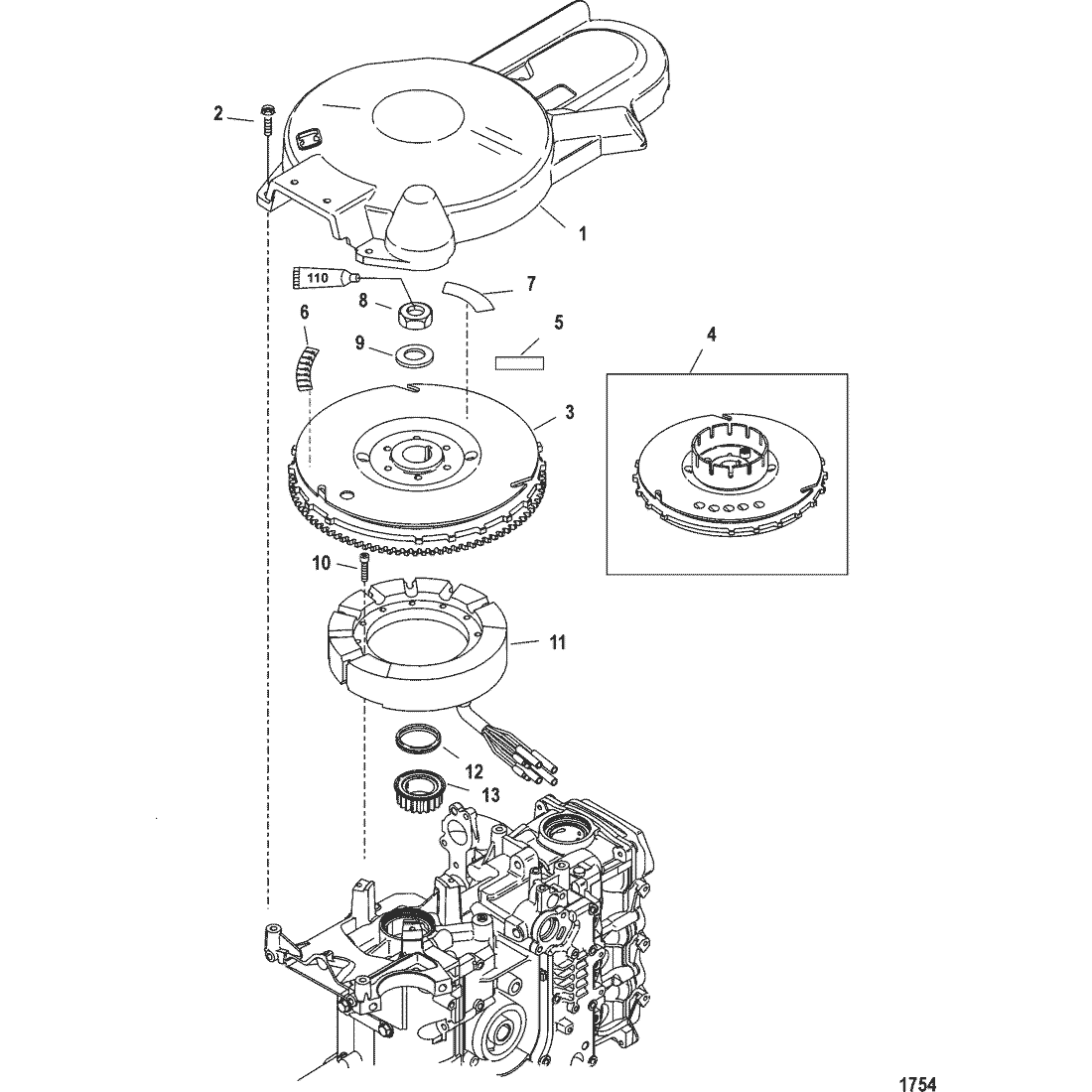

| Ref # | Current Part Nbr |
Description | Superceded From |
Status | Notes | List Price |
Online Price |
Quan Used |
Order Quan |
|---|---|---|---|---|---|---|---|---|---|
| 1 | 859284T2 | FLYWHEEL COVER | ACT |
|
$180.08 | $169.59 | 1 | ||
| 2 | 8248326 | SCREW, (M6 x 25 MM) | ACT |
|
$1.70 | $1.66 | 4 | ||
| 3 | 832010T32 | FLYWHEEL | 832010T26 | SS |
|
$632.00 | $594.59 | 1 | |
| 4 | 832010T27 | FLYWHEEL | ACT |
|
$340.58 | $320.73 | 1 | ||
| 4 | 832010T29 | FLYWHEEL | 832010T25 | SS |
|
$0.00 | $0.00 | 1 | |
| 5 | NSS | NOT SOLD SEPARATE, Decal-Warning Spinning Flywheel |
|
$0.00 | $0.00 | 1 | |||
| 6 | NSS | NOT SOLD SEPARATE, Decal-Timing Marks |
|
$0.00 | $0.00 | 1 | |||
| 7 | NSS | NOT SOLD SEPARATE, Decal-Warning-Neutral |
|
$0.00 | $0.00 | 1 | |||
| 8 | 893789 | NUT | 81773M | SS |
|
$9.80 | $9.56 | 1 | |
| 9 | 893762 | WASHER | 84436M | SS |
|
$4.10 | $4.00 | 1 | |
| 10 | 4013930 | SCREW, (M5 x 30) | ACT | $2.90 | $2.83 | 3 | |||
| 11 | 852387T7 | STATOR | NLA |
|
$0.00 | $0.00 | 1 | ||
| 11 | 852386T6 | STATOR | ACT |
|
$370.86 | $354.49 | 1 | ||
| 12 | 834838 | LOAD RING | ACT | $36.50 | $35.84 | 1 | |||
| 13 | 833102T | GEAR, Drive | ACT | $37.58 | $36.91 | 1 | |||
| - | 803017T01 | POWERHEAD ASSEMBLY | NLA |
|
$0.00 | $0.00 | 1 | ||
| - | 803016T01 | POWERHEAD ASSEMBLY | NLA |
|
$0.00 | $0.00 | 1 |
