| Ref # | Current Part Nbr |
Description | Superceded From |
Status | Notes | List Price |
Online Price |
Quan Used |
Order Quan |
|---|---|---|---|---|---|---|---|---|---|

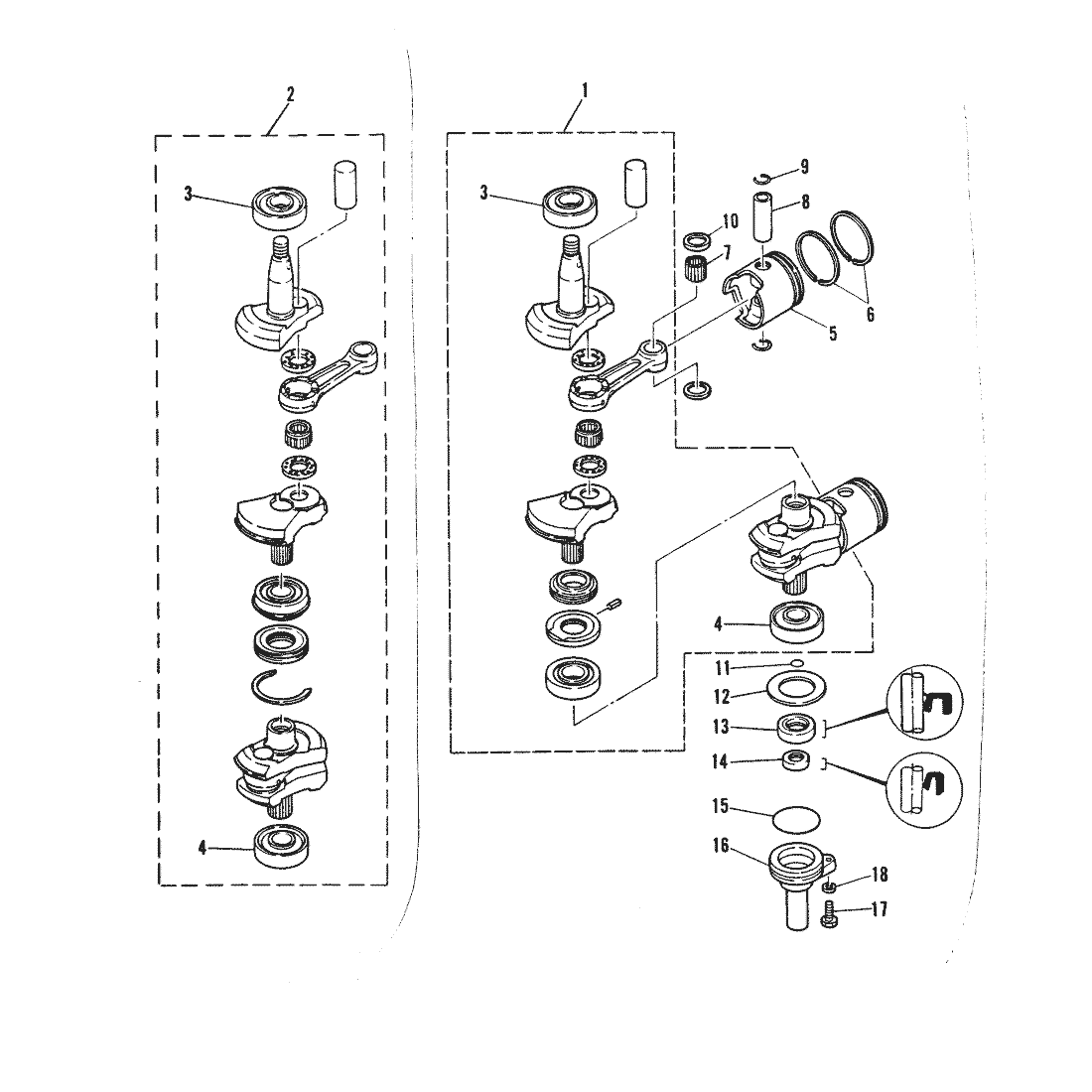

| 1 | 811026M | CRANKSHAFT ASSEMBLY (ELECTRIC) | NLA |
|
$0.00 | $0.00 | 1 | ||
| 2 | 9068M | CRANKSHAFT ASSEMBLY (MANUAL) | NLA |
|
$0.00 | $0.00 | 1 | ||
| 3 | 96659T | --BEARING (UPPER) | 96659M | SS |
|
$0.00 | $0.00 | 1 | |
| 4 | 18971T | --BEARING (LOWER) | 18971M | SS |
|
$0.00 | $0.00 | 1 | |
| 5 | 8484M | PISTON (STANDARD) | NLA |
|
$0.00 | $0.00 | 2 | ||
| 5 | 8485T | PISTON (1ST. O.S. 72.25MM) | 8485M | SS |
|
$0.00 | $0.00 | AR | |
| 5 | 8486T | PISTON (2ND. O.S. 72.50MM) | 8486M | SS |
|
$0.00 | $0.00 | AR | |
| 6 | 14235T | --PISTON RING SET (STANDARD) | 14235M | SS |
|
$0.00 | $0.00 | 2 | |
| 6 | 84747T | --PISTON RING SET (1ST. O.S. 72.25MM) | 84747M | SS |
|
$0.00 | $0.00 | AR | |
| 6 | 14236T | --PISTON RING SET (2ND. O.S. 72.50MM) | 14236M | SS |
|
$0.00 | $0.00 | AR | |
| 7 | 84452M | --NEEDLE BEARING | NLA |
|
$0.00 | $0.00 | 68 | ||
| 8 | 84749M | --PISTON PIN | NLA |
|
$0.00 | $0.00 | 2 | ||
| 10 | 81264M | --WASHER | NLA |
|
$0.00 | $0.00 | 4 | ||
| 11 | 82268M | O-RING | NLA |
|
$0.00 | $0.00 | 1 | ||
| 12 | 81842M | WASHER | NLA |
|
$0.00 | $0.00 | 1 | ||
| 13 | 19133M | OIL SEAL | NLA |
|
$0.00 | $0.00 | 1 | ||
| 14 | 83347M | OIL SEAL | 18972M | SS |
|
$0.00 | $0.00 | 1 | |
| 15 | 84089M | O-RING | ACT | $7.50 | $7.32 | 1 | |||
| 16 | 8M0059029 | HOUSING | 18973M | SS |
|
$0.00 | $0.00 | 1 | |
| 17 | 94526M | BOLT | NLA |
|
$0.00 | $0.00 | 1 | ||
| 18 | 82214M | WASHER | NLA |
|
$5.93 | $5.78 | 1 |
