Ref # Current
Part Nbr		 Description Superceded
From		 Status Notes List
Price		 Online
Price		 Quan
Used		 Order
Quan

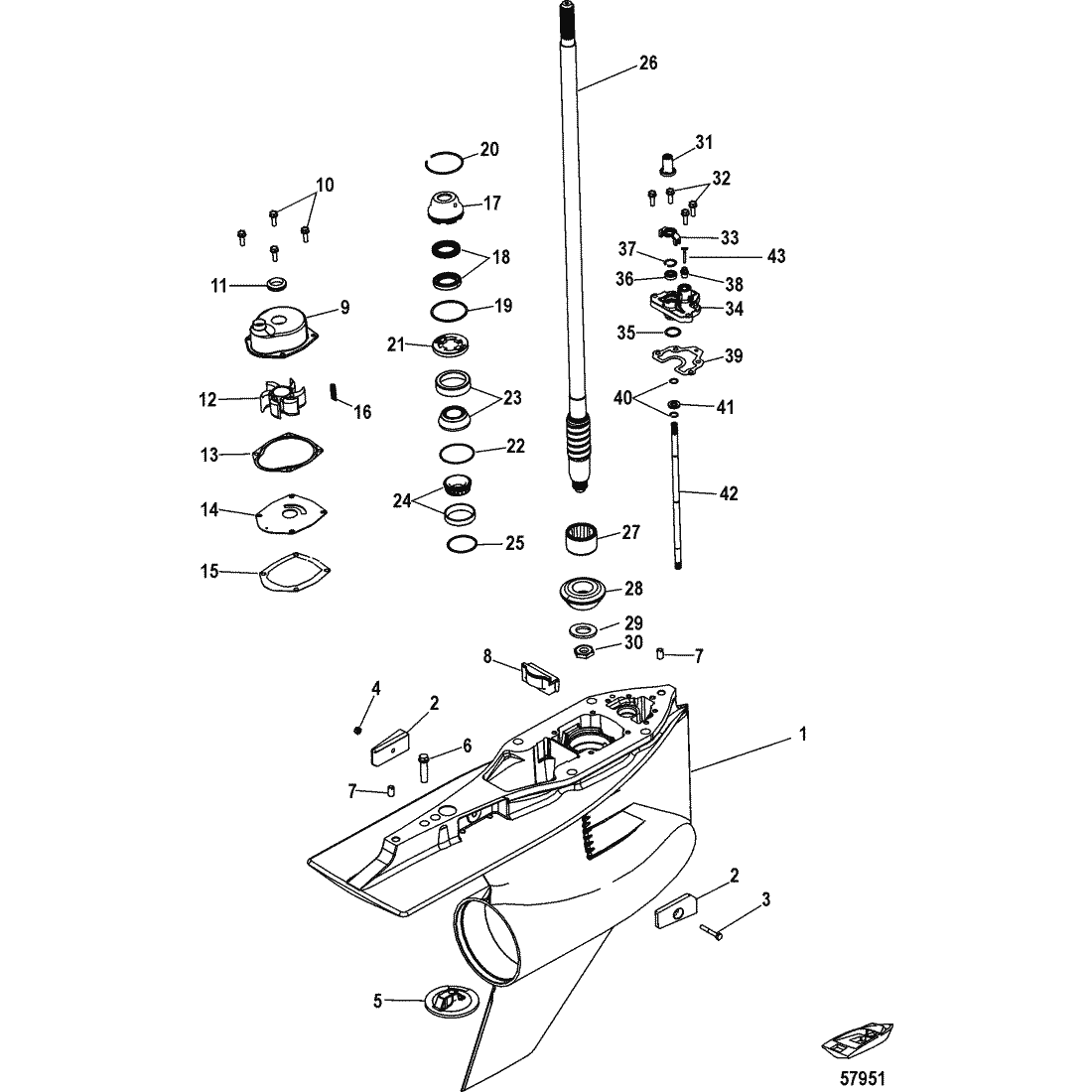

- 8M0117252 GEAR HOUSING ASSEMBLY, Complete, Black (Standard Long)(1.85:1) 8M0078246 SS $7,971.45 $7,307.57 1
- 8M0117239 GEAR HOUSING ASSEMBLY, Complete, Silver (Standard Long)(1.85:1) 8M0089983 SS $8,657.15 $7,936.18 1
- 8M0236284 GEAR HOUSING ASSEMBLY, Complete, Black (Standard X-Long)(1.85:1) 8M0078247 SS $8,657.15 $7,936.18 1
- 8M0236237 GEAR HOUSING ASSEMBLY, Complete, Silver (Standard X-Long)(1.85:1) 8M0089985 SS $9,121.45 $8,361.80 1
- 8M0236286 GEAR HOUSING ASSEMBLY, Complete, Black (Standard XX-Long)(1.85:1) 8M0078249 SS $8,657.15 $7,936.18 1
- 8M0117243 GEAR HOUSING ASSEMBLY, Complete, Silver (Standard XX-Long)(1.85:1) 8M0089987 SS $9,121.45 $8,361.80 1
- 8M0117257 GEAR HOUSING ASSEMBLY, Complete, Black (Counter Rotation-Long)(1.85:1) 8M0078251 SS $9,350.00 $8,571.34 1
- 8M0228060 GEAR HOUSING ASSEMBLY, Complete, Silver (Counter Rotation-Long)(1.85:1) 8M0089984 SS $9,821.45 $9,003.51 1
- 8M0236285 GEAR HOUSING ASSEMBLY, Complete, Black (Counter Rotation X-Long)(1.85:1) 8M0078248 SS $9,350.00 $8,571.34 1
- 8M0228062 GEAR HOUSING ASSEMBLY, Complete, Silver (Counter Rotation X-Long)(1.85:1) 8M0089986 SS $9,821.45 $9,003.51 1
- 8M0236287 GEAR HOUSING ASSEMBLY, Complete, Black (Counter Rotation XX-Long)(1.85:1) 8M0078250 SS $9,350.00 $8,571.34 1
- 8M0117244 GEAR HOUSING ASSEMBLY, Complete, Silver (Counter Rotation XX-Long)(1.85:1) 8M0089988 SS $9,821.45 $9,003.51 1
- 8M0236238 GEAR HOUSING ASSEMBLY, Complete, Silver (Standard Long)(1.75:1) 8M0102480 SS $8,892.85 $8,152.27 1
- 8M0236239 GEAR HOUSING ASSEMBLY, Complete, Silver (Standard X-Long)(1.75:1) 8M0102481 SS $9,121.45 $8,361.80 1
- 8M0236240 GEAR HOUSING ASSEMBLY, Complete, Silver (Standard XX-Long)(1.75:1) 8M0102482 SS $9,121.45 $8,361.80 1
- 8M0236232 GEAR HOUSING ASSEMBLY, Complete, Silver (Counter Rotation-Long)(1.75:1) 8M0102483 SS $9,007.15 $8,257.03 1
- 8M0236233 GEAR HOUSING ASSEMBLY, Complete, Silver (Counter Rotation X-Long)(1.75:1) 8M0102484 SS $9,821.45 $9,003.51 1
- 8M0236234 GEAR HOUSING ASSEMBLY, Complete, Silver (Counter Rotation XX-Long)(1.75:1) 8M0102485 SS $9,821.45 $9,003.51 1
1 8M0117258 --GEAR HOUSING ASSEMBLY, Basic, Black 8M0053108 SS $3,203.99 $2,937.11 1
1 8M0228048 --GEAR HOUSING ASSEMBLY, Basic, Silver 8M0053107 SS $3,342.99 $3,064.40 1
2 826134Q ----ANODE ACT $16.49 $16.09 2
3 4000333 ----SCREW, (M6 x 40) ACT $4.09 $4.00 1
4 401386 ----NUT, (M6) Stainless Steel ACT $5.09 $4.98 1
5 76214Q5 ----ANODE KIT ACT $29.99 $29.38 1
6 8M0204686 ------SCREW, (.437-14 x 1.750) 806327 SS $6.99 $6.83 1
7 43044 ----PIN, Dowel - Without Hole (.375 x .625) ACT $2.49 $2.43 2
8 8M0010459 ----FILLER BLOCK ACT $23.09 $22.67 1
9 817275A1 --HOUSING KIT, Water Pump ACT $102.99 $96.61 1
10 8M0204706 --SCREW, (M6 x 20) 1993720 SS $1.20 $1.18 4
- 8M0100526 --IMPELLER REPAIR KIT 8M0057717 NLA $66.99 $64.29 1
11 8M0142851 ----SEAL, Face 8M2014338 SS $0.30 $0.30 1
12 43026Q02 ----IMPELLER ACT $36.49 $35.81 1
13 8172771 ----GASKET ACT $5.69 $5.56 1
14 8M0204709 ----FACEPLATE 8172761 SS $14.59 $14.24 1
15 8M0142616 ----GASKET 8M0050720 SS $9.59 $9.37 1
16 8M0204723 ----KEY 8M0032833 SS $4.39 $4.30 1
17 8M0046297 --OIL SEAL ASSEMBLY ACT $58.99 $56.67 1
18 NSS ----NOT SOLD SEPARATE, SEAL $0.00 $0.00 2
19 8M0142854 ----O-RING, (2.175 x .103) 896523 SS $1.10 $1.08 1
20 880719 --RING, Retaining ACT $1.50 $1.47 1
21 8245191 --RETAINER ACT $6.99 $6.83 1
22 8M0063267 --SHIM SET ACT $27.79 $27.25 1
23 8M0146566 --BEARING ASSEMBLY, Roller/Cup 36387A1 SS $74.99 $71.98 1
24 8M0146553 --BEARING, Tapered Roller 48939A2 SS $26.59 $26.11 1
25 8M0063268 --SHIM SET ACT $30.89 $30.28 1
26 8M0149608 --SHAFT, Drive, Long 8M0103301 SS $505.49 $475.18 1
26 8M0141337 --SHAFT, Drive, X-Long 8M0103303 SS $620.99 $583.91 1
26 8M0141338 --SHAFT, Drive, XX-Long 8M0103304 SS $641.99 $603.80 1
27 8M0045676 --BEARING, Roller ACT $69.99 $67.33 1
28 8M0078259 --GEAR SET, 13/24(1.85:1), Forward and Pinion ACT $713.49 $670.86 1
28 8M0078258 --GEAR SET, 12/21(1.75:1), Forward and Pinion ACT $736.49 $692.90 1
28 8M0053119 --GEAR SET, 13/24 (1.85:1), Forward and Pinion ACT $623.99 $587.00 1
28 8M0053120 --GEAR SET, 12/21 (1.75:1), Forward and Pinion ACT $589.99 $554.88 1
29 8M0062703 ----WASHER, Pinon nut ACT $1.00 $0.98 1
30 8M0046636 ----NUT, Pinion ACT $29.49 $28.89 1
31 43585 --COUPLING ACT $31.89 $31.26 1
32 8M0204706 --SCREW, (M6 x 20) 1993720 SS $1.20 $1.18 1
33 8M0050809 --GROMMET ASSEMBLY ACT $12.99 $12.68 1
34 8M0047129 --COVER ASSEMBLY ACT $34.99 $34.36 1
35 896522 ----O-RING, (799 x .103) ACT $1.80 $1.76 1
36 8M0204708 ----SEAL, Oil 8164641 SS $16.99 $16.58 1
37 8M0046563 ----RETAINING RING ACT $4.29 $4.20 1
38 881866 ----FITTING ACT $7.59 $7.42 1
39 880729 --GASKET ACT $4.49 $4.39 1
40 29641 --E RING ACT $1.80 $1.76 2
41 8M0050602 --MAGNET ACT $16.99 $16.58 1
42 8M0046104 --SHIFT SHAFT ACT $70.49 $67.57 1
43 859732 --PLUG ACT $1.70 $1.66 1
- 8M0065064 SEAL KIT, Gearcase ACT $118.99 $111.91 1
- 8M0078858 WATER PUMP REPAIR KIT, Complete ACT $234.99 $221.23 1
- 8M0065072 WATER PUMP REPAIR KIT, Upper ACT $103.99 $97.86 1
