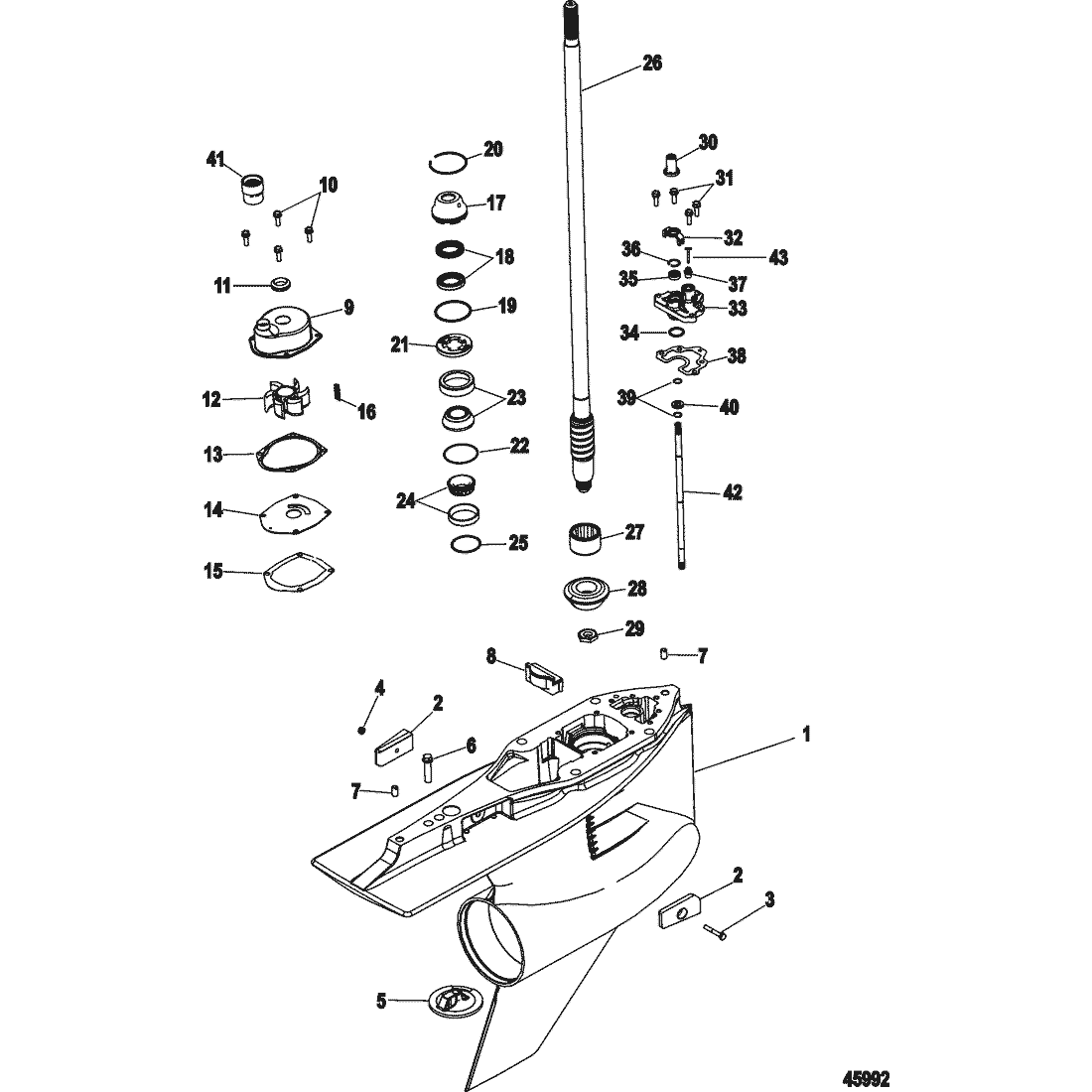

| Ref # | Current Part Nbr |
Description | Superceded From |
Status | Notes | List Price |
Online Price |
Quan Used |
Order Quan |
|---|---|---|---|---|---|---|---|---|---|
| - | 8M0117252 | GEAR HOUSING ASSEMBLY, Complete, Black (Long)(1.85:1) | 8M0049863 | SS |
|
$7,971.45 | $7,307.57 | 1 | |
| - | 8M0236284 | GEAR HOUSING ASSEMBLY, Complete, Black (X-Long)(1.85:1) | 8M0049864 | SS |
|
$8,657.15 | $7,936.18 | 1 | |
| - | 8M0236286 | GEAR HOUSING ASSEMBLY, Complete, Black (XX-Long)(1.85:1) | 8M0049866 | SS |
|
$8,657.15 | $7,936.18 | 1 | |
| - | 8M0117257 | GEAR HOUSING ASSEMBLY, Complete, Black (C-Long)(1.85:1) | 8M0049868 | SS |
|
$9,350.00 | $8,571.34 | 1 | |
| - | 8M0236285 | GEAR HOUSING ASSEMBLY, Complete, Black (CX-Long)(1.85:1) | 8M0049865 | SS |
|
$9,350.00 | $8,571.34 | 1 | |
| - | 8M0236287 | GEAR HOUSING ASSEMBLY, Complete, Black (CXX-Long)(1.85:1) | 8M0049867 | SS |
|
$9,350.00 | $8,571.34 | 1 | |
| - | 8M0078252 | GEAR HOUSING ASSEMBLY, Complete (Long)(1.75:1) | 8M0049869 | SS |
|
$8,657.15 | $7,936.18 | 1 | |
| - | 8M0236239 | GEAR HOUSING ASSEMBLY, Complete (X-Long)(1.75:1) | 8M0049870 | SS |
|
$9,121.45 | $8,361.80 | 1 | |
| - | 8M0236240 | GEAR HOUSING ASSEMBLY, Complete (XX-Long)(1.75:1) | 8M0049872 | SS |
|
$9,121.45 | $8,361.80 | 1 | |
| - | 8M0228053 | GEAR HOUSING ASSEMBLY, Complete (C-Long)(1.75:1) | 8M0049874 | SS |
|
$0.00 | $0.00 | 1 | |
| - | 8M0228054 | GEAR HOUSING ASSEMBLY, Complete (CX-Long)(1.75:1) | 8M0049871 | SS |
|
$0.00 | $0.00 | 1 | |
| - | 8M0228055 | GEAR HOUSING ASSEMBLY, Complete (CXX-Long)(1.75:1) | 8M0049873 | SS |
|
$0.00 | $0.00 | 1 | |
| 1 | 8M0117258 | --GEAR HOUSING ASSEMBLY, Basic, Black | 8M0053108 | SS |
|
$3,203.99 | $2,937.11 | 1 | |
| 1 | 8M0228048 | --GEAR HOUSING ASSEMBLY, Basic, Silver | 8M0053107 | SS |
|
$3,342.99 | $3,064.40 | 1 | |
| 2 | 826134Q | ----ANODE | ACT | $16.49 | $16.09 | 2 | |||
| 3 | 4000333 | ----SCREW, (M6 x 40) | ACT | $4.09 | $4.00 | 1 | |||
| 4 | 401386 | ----NUT, (M6) Stainless Steel | ACT | $5.09 | $4.98 | 1 | |||
| 5 | 76214Q5 | ----ANODE KIT | ACT |
|
$29.99 | $29.38 | 1 | ||
| 6 | 8M0204686 | ------SCREW, (.437-14 x 1.750) | 806327 | SS |
|
$6.99 | $6.83 | 1 | |
| 7 | 43044 | ----PIN, Dowel - Without Hole (.375 x .625) | ACT | $2.49 | $2.43 | 2 | |||
| 8 | 8M0010459 | ----FILLER BLOCK | ACT | $23.09 | $22.67 | 1 | |||
| 9 | 817275A1 | --HOUSING KIT, Water Pump | ACT | $102.99 | $96.61 | 1 | |||
| 10 | 8M0204706 | --SCREW, (M6 x 20) | 1993720 | SS |
|
$1.20 | $1.18 | 4 | |
| - | 8M0100526 | --IMPELLER REPAIR KIT | 8M0057717 | NLA |
|
$66.99 | $64.29 | 1 | |
| 11 | 8M0142851 | ----SEAL, Face | 8M2014338 | SS |
|
$0.30 | $0.30 | 1 | |
| 12 | 43026Q02 | ----IMPELLER | ACT | $36.49 | $35.81 | 1 | |||
| 13 | 8172771 | ----GASKET | ACT | $5.69 | $5.56 | 1 | |||
| 14 | 8M0204709 | ----FACEPLATE | 8172761 | SS |
|
$14.59 | $14.24 | 1 | |
| 15 | 8M0142616 | ----GASKET | 8M0050720 | SS |
|
$9.59 | $9.37 | 1 | |
| 16 | 8M0204723 | ----KEY | 8M0032833 | SS |
|
$4.39 | $4.30 | 1 | |
| 17 | 8M0046297 | --OIL SEAL ASSEMBLY | ACT |
|
$58.99 | $56.67 | 1 | ||
| 18 | NSS | ----NOT SOLD SEPARATE, SEAL |
|
$0.00 | $0.00 | 2 | |||
| 19 | 8M0142854 | ----O-RING, (2.175 x .103) | 896523 | SS |
|
$1.10 | $1.08 | 1 | |
| 20 | 880719 | --RING, Retaining | ACT | $1.50 | $1.47 | 1 | |||
| 21 | 8245191 | --RETAINER | ACT | $6.99 | $6.83 | 1 | |||
| 22 | 8M0063267 | --SHIM SET | 8M0053110 | NLA |
|
$27.79 | $27.25 | 1 | |
| 23 | 8M0146566 | --BEARING ASSEMBLY, Roller/Cup | 36387A1 | SS |
|
$74.99 | $71.98 | 1 | |
| 24 | 8M0146553 | --BEARING, Tapered Roller | 48939A2 | SS |
|
$26.59 | $26.11 | 1 | |
| 25 | 8M0063268 | --SHIM ASSEMBLY | 38657A1 | NLA |
|
$30.89 | $30.28 | 1 | |
| 26 | 8M0149608 | --DRIVESHAFT | 8M0053106 | SS |
|
$505.49 | $475.18 | 1 | |
| 26 | 8M0141337 | --DRIVESHAFT | 8M0053105 | SS |
|
$620.99 | $583.91 | 1 | |
| 26 | 8M0141338 | --DRIVESHAFT | 8M0053104 | SS |
|
$641.99 | $603.80 | 1 | |
| 27 | 8M0045676 | --BEARING, Roller | ACT | $69.99 | $67.33 | 1 | |||
| 28 | 8M0078259 | --GEAR SET, 13/24 (1.85:1), Forward and Pinion | 8M0053118 | SS |
|
$713.49 | $670.86 | 1 | |
| 28 | 8M0078258 | --GEAR SET, 12/21(1.75:1), Forward and Pinion | 8M0053117 | SS |
|
$736.49 | $692.90 | 1 | |
| 28 | 8M0053119 | --GEAR SET, 13/24 (1.85:1), Forward and Pinion | ACT |
|
$623.99 | $587.00 | 1 | ||
| 28 | 8M0053120 | --GEAR SET, 12/21 (1.75:1), Forward and Pinion | ACT |
|
$589.99 | $554.88 | 1 | ||
| 29 | 8M0046636 | ----NUT | ACT | $29.49 | $28.89 | 1 | |||
| 30 | 43585 | --COUPLING | ACT | $31.89 | $31.26 | 1 | |||
| 31 | 8M0204706 | --SCREW, (M6 x 20) | 1993720 | SS |
|
$1.20 | $1.18 | 1 | |
| 32 | 8M0050809 | GROMMET ASSEMBLY | ACT |
|
$12.99 | $12.68 | 1 | ||
| 33 | 8M0047129 | --COVER ASSEMBLY | ACT |
|
$34.99 | $34.36 | 1 | ||
| 34 | 896522 | ----O-RING, (799 x .103) | ACT | $1.80 | $1.76 | 1 | |||
| 35 | 8M0204708 | ----SEAL, Oil | 8164641 | SS |
|
$16.99 | $16.58 | 1 | |
| 36 | 8M0046563 | ----RETAINING RING | ACT | $4.29 | $4.20 | 1 | |||
| 37 | 881866 | ----FITTING | ACT | $7.59 | $7.42 | 1 | |||
| 38 | 880729 | --GASKET | ACT | $4.49 | $4.39 | 1 | |||
| 39 | 29641 | --E RING | ACT | $1.80 | $1.76 | 2 | |||
| 40 | 8M0050602 | --MAGNET | ACT | $16.99 | $16.58 | 1 | |||
| 41 | 8M0046104 | --SHIFT SHAFT | ACT | $70.49 | $67.57 | 1 | |||
| 42 | 859732 | --PLUG | ACT |
|
$1.70 | $1.66 | 1 | ||
| - | 8M0065064 | SEAL KIT, Gearcase | ACT | $118.99 | $111.91 | 1 | |||
| - | 8M0078858 | WATER PUMP REPAIR KIT, Complete | ACT | $234.99 | $221.23 | 1 | |||
| - | 8M0065072 | WATER PUMP REPAIR KIT, Upper | ACT | $103.99 | $97.86 | 1 |
