Ref # Current
Part Nbr		 Description Superceded
From		 Status Notes List
Price		 Online
Price		 Quan
Used		 Order
Quan

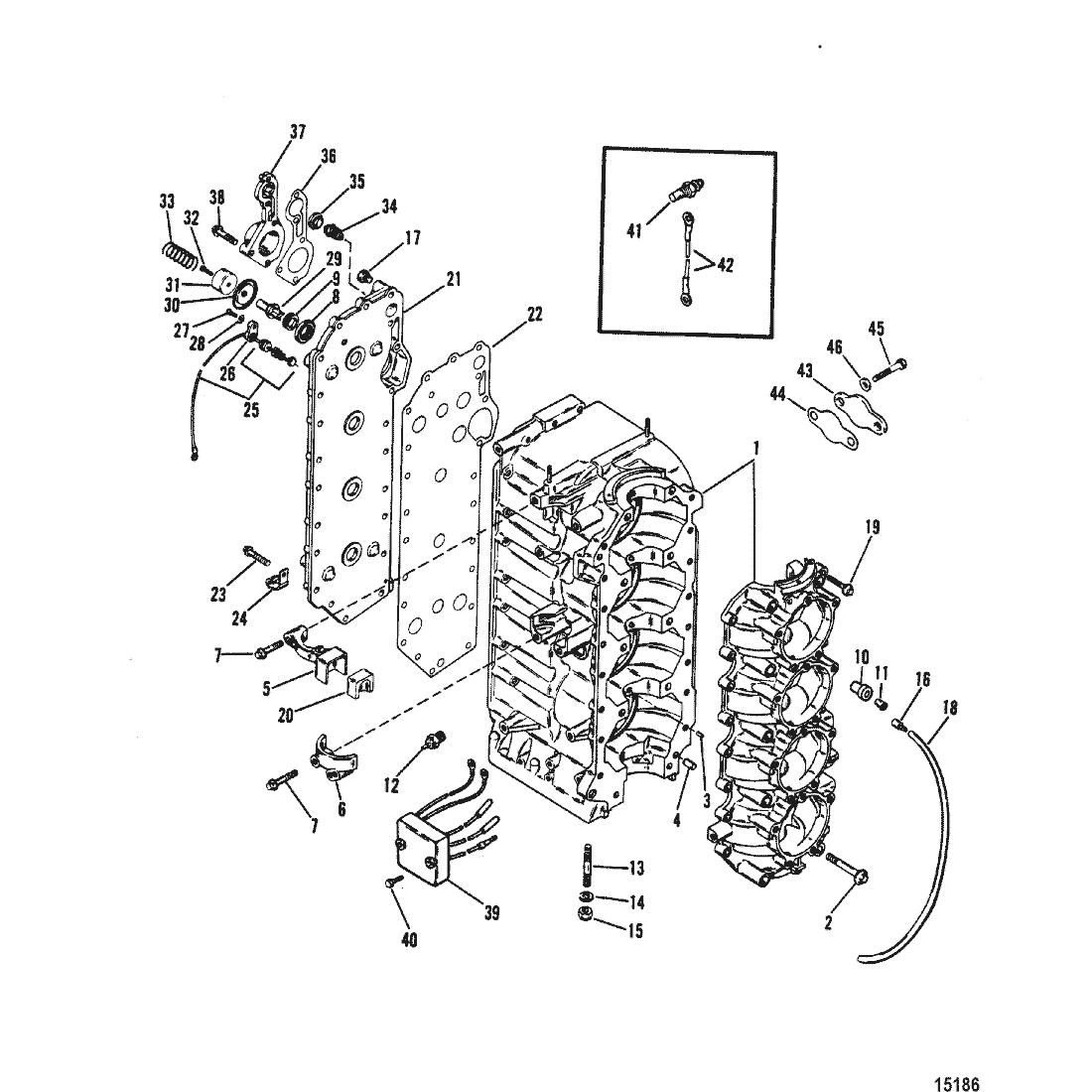

1 9191T13 CYLINDER BLOCK ASSEMBLY 9191A13 SS $0.00 $0.00 1
2 4009680 --SCREW, (M10 x 80) ACT $1.80 $1.76 10
3 8M0036405 --PIN, Bearing Race 67296 SS $4.39 $4.30 4
4 43044 --PIN, Dowel 20033 SS $2.49 $2.43 1
5 428842 COVER, Top 42884 SS $94.99 $90.98 1
6 76867 COVER, Bottom ACT $27.69 $27.17 1
7 81742750 --SCREW, (M8 x 50) NLA $0.00 $0.00 4
8 65848 CARRIER ACT $3.59 $3.50 1
9 64872 --GROMMET ACT $3.59 $3.50 1
10 814204A1 --BLEED SYSTEM KIT ACT $73.49 $70.46 1
10 813801A1 --CARRIER ASSEMBLY ACT $19.89 $19.41 1
11 42657A3 ----CHECK VALVE 42657A1 SS $7.29 $7.12 3
12 891664 --CHECK VALVE 146531 SS $183.99 $172.96 2
13 821676A1 --STUD, (M6) 821676 SS $10.99 $10.73 8
14 8M0214963 --WASHER, (.406 x .750 x .104) 45175 SS $2.59 $2.53 8
15 40140 --NUT, (M10) 13914 SS $3.39 $3.30 8
16 426233 --CHECK VALVE, Press-In 42623 SS $103.99 $97.86 1
17 328022 PLUG, Pipe (.125-27) 32802 SS $7.59 $7.42 1
18 892024122 TUBING, (20.00 Feet Bulk) 99130122 SS $48.49 $47.57 1
19 82127335 SCREW, (M8 x 35 MM) ACT $5.19 $5.08 16
20 99162001 BOOT 99162 SS $6.89 $6.73 1
21 9196A2 COVER 9196A1 SS $0.00 $0.00 1
22 443284 GASKET 443283 SS $31.59 $31.02 1
23 82127335 SCREW, (M8 x 35 MM) ACT $5.19 $5.08 18
24 814634 CLAMP ACT $5.09 $4.98 6
25 78799 SENDER, Temperature (19.50 Inch) ACT $111.49 $104.93 1
25 787991 SENDER, Temperature (37.50 Inch) ACT $99.99 $96.10 1
26 889733 RETAINER 44552 SS $5.59 $5.47 1
27 48409 SCREW, (#10-16 x .625) Stainless Steel ACT $2.49 $2.43 1
28 8M0204666 WASHER, (.203 x .500 x .032) 56681 SS $1.80 $1.76 1
29 86596T POPPET VALVE ACT $15.69 $15.31 1
30 648771 DIAPHRAGM 64877 SS $11.79 $11.51 1
31 94182 WASHER ACT $3.59 $3.50 1
32 69570 SCREW, (#10-16 x .750) ACT $1.80 $1.76 1
33 42996 SPRING 18336 SS $1.80 $1.76 1
34 75692 THERMOSTAT (143 Degrees) ACT $31.59 $31.02 1
34 14586 THERMOSTAT (120 Degrees) ACT $40.99 $40.10 1
35 8M0204714 GASKET 62386 SS $2.89 $2.82 1
36 430068 GASKET 430063 SS $9.79 $9.56 1
37 8M0047619 COVER 428852 SS $38.99 $38.14 1
38 82127335 SCREW, (M8 x 35 MM) ACT $5.19 $5.08 1
38 81742755 SCREW, (M8 x 55) ACT $3.06 $3.00 4
39 14857A16 MODULE ASSEMBLY, Oil Warning 14857A7 SS $195.99 $184.26 1
40 4010630 SCREW, (M6 x 30) Stainless Steel ACT $6.89 $6.73 2
41 12415 SENDER, Temperature ACT $54.49 $52.40 1
42 88824A6 CABLE ASSEMBLY, Sea Ray/ Powerboat ACT $31.59 $31.02 1
43 12621 COVER ACT $9.99 $9.76 1
44 126201 GASKET ACT $4.59 $4.49 1
45 40007106 SCREW, (M5 x 13) ACT $1.80 $1.76 2
46 4002314 WASHER ACT $3.69 $3.59 2
