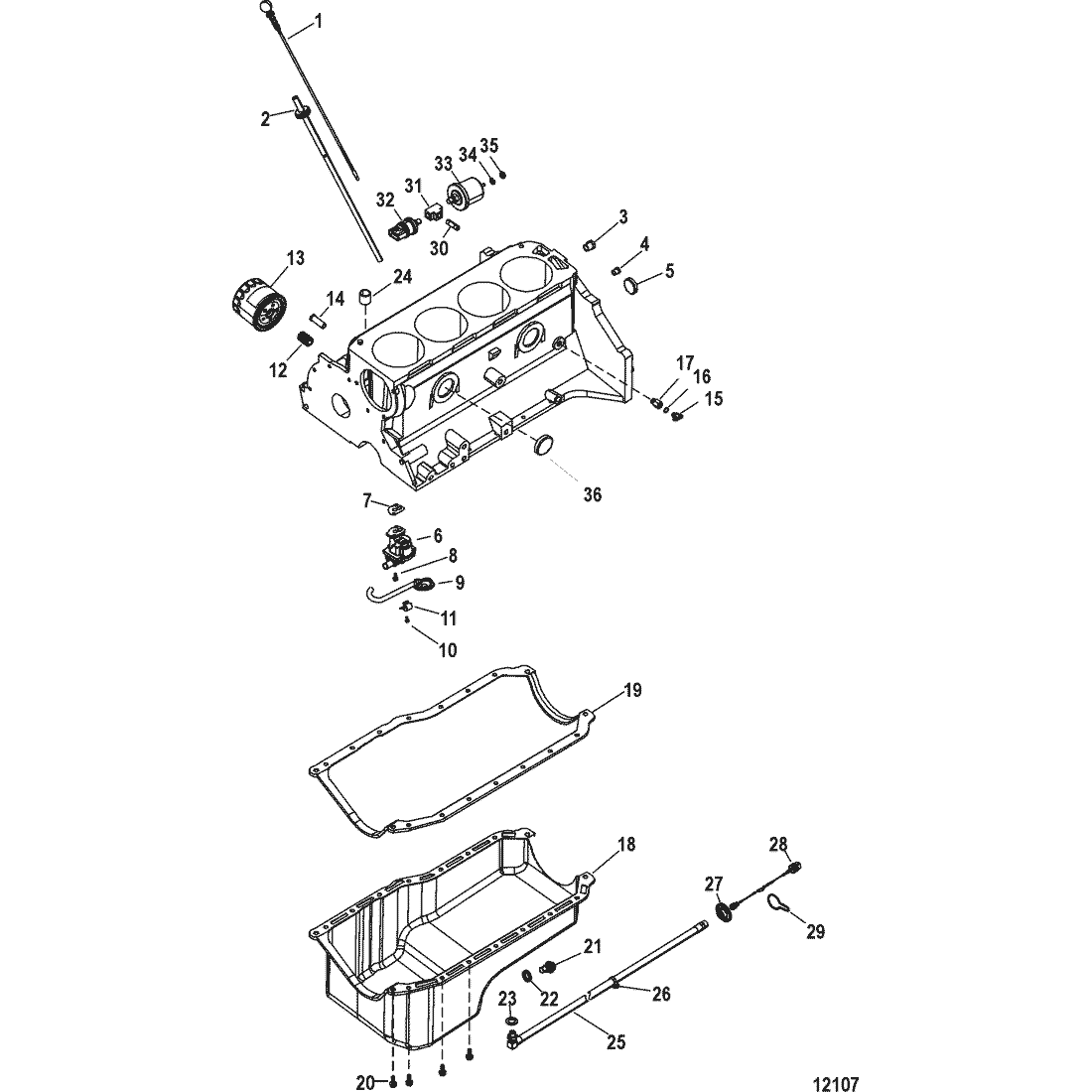

| Ref # | Current Part Nbr | Description | Superceded From | Status | Notes | List Price | Online Price | Quan Used | Order Quan |
|---|---|---|---|---|---|---|---|---|---|
| 1 | 861942T1 | GAUGE, Dipstick | ACT |  | $38.58 | $37.89 | 1 | ||
| 2 | 87717A2 | TUBE, Dipstick | ACT | $73.83 | $71.02 | 1 | |||
| 3 | 8M0204657 | PLUG, (.375-18 x .42) | 34487 | SS | | $5.50 | $5.37 | 2 | |
| 4 | 37531 | PLUG | NLA | | $4.80 | $4.69 | 1 | ||
| 5 | 72640 | PLUG | ACT | $13.70 | $13.36 | 1 | |||
| 6 | 36405 | PUMP ASSEMBLY, Oil | ACT | | $115.92 | $109.16 | 1 | ||
| 7 | NSS | --NOT SOLD SEPARATE, Gasket | | $0.00 | $0.00 | 1 | |||
| 8 | 8M0043993 | SCREW, (.312-18 x .750) | 845942 | SS | | $1.60 | $1.57 | 2 | |
| 9 | 52146 | SCREEN, Oil Pump Pickup | ACT | $139.75 | $131.61 | 1 | |||
| 10 | 8M0040582 | SCREW | 35366 | SS | | $17.90 | $17.46 | 1 | |
| 11 | 60717 | SUPPORT, Oil Pump | NLA | | $9.98 | $9.81 | 1 | ||
| 12 | 805632 | CONNECTOR | ACT | | $32.33 | $31.75 | 1 | ||
| 13 | 866340Q03 | FILTER, Oil - Quicksilver Brand | 866340Q02 | SS | | $13.69 | $13.36 | 1 | |
| 13 | 866340K01 | FILTER, Oil - Mercury Brand | ACT | $15.49 | $15.07 | 1 | |||
| 14 | 34543 | VALVE | ACT | $17.50 | $17.07 | 1 | |||
| 15 | 8M0119211 | PLUG KIT, (.500-13) Royal Blue | 806608A1 | SS | | $9.79 | $9.56 | 1 | |
| 16 | 32509 | --O-RING, (.489 x .070) | ACT | $2.30 | $2.25 | 1 | |||
| 17 | 8M0214973 | BUSHING | 860088 | SS | | $12.30 | $12.00 | 1 | |
| 18 | 8M0122492 | PAN, Oil | 810845T | SS | | $649.50 | $611.05 | 1 | |
| 19 | 810846T | GASKET SET | ACT | $185.58 | $174.77 | 1 | |||
| 20 | 34500 | SCREW, (.312-18 x .625) | ACT | $17.00 | $16.58 | 2 | |||
| 20 | 8M0227253 | SCREW, (.250-20 x .375) | 72607 | SS | | $18.90 | $18.43 | 14 | |
| 21 | 49956 | SCREW, Drain | ACT | $22.17 | $21.77 | 1 | |||
| 22 | 8M0077608 | GASKET, Drain | 49955 | SS | | $15.20 | $14.83 | 1 | |
| 23 | 8M0077608 | GASKET | 49955 | SS | | $15.20 | $14.83 | 1 | |
| 24 | 35168 | BEARING | NLA | | $2.78 | $2.72 | 1 | ||
| 25 | 865277 | HOSE, Oil Drain | ACT | | $109.92 | $103.51 | 1 | ||
| 26 | 863481 | --CLAMP | ACT | $2.20 | $2.15 | 1 | |||
| 27 | 862777 | FLANGE, Drain | ACT | $15.90 | $15.51 | 1 | |||
| 28 | 862827 | TETHER ASSEMBLY, Drain Plug | ACT | $83.58 | $80.40 | 1 | |||
| 29 | 805524 | CLIP | ACT | $14.90 | $14.53 | 1 | |||
| 30 | 38992 | FITTING | ACT | $42.83 | $42.06 | 1 | |||
| 31 | 52930 | FITTING | ACT | $13.90 | $13.56 | 1 | |||
| 32 | 865934 | Pressure Switch, (SPDT) | ACT | $103.58 | $97.55 | 1 | |||
| 33 | 8M0068784 | SENDER ASSEMBLY | 815425T | SS | | $88.49 | $85.12 | 1 | |
| 34 | 26996 | LOCKWASHER, (#10) Stainless Steel | ACT | $1.20 | $1.18 | 1 | |||
| 35 | 68219 | NUT, (#10-32) Stainless Steel | ACT | $2.90 | $2.83 | 1 | |||
| 36 | 34271 | EXPANSION PLUG, (2.00) | ACT | $21.58 | $21.20 | 2 | |||
| - | 810846A05 | GASKET SET, Overhaul | ACT | $599.93 | $564.42 | 1 | |||
| - | 8M0187364 | MARINE LONG BLOCK ENGINE | 864626A01 | NLA | | $5,400.00 | $5,097.61 | 1 | |
| - | 809825 | RTV SILICONE, (3 Ounce Tube) Metallic Blue | ACT | $21.99 | $21.59 | 1 | |||
| - | 8M0170149 | SEALING COMPOUND, (16 Ounce) | 342271 | SS | | $41.00 | $39.98 | 1 |
