| Ref # | Current Part Nbr |
Description | Superceded From |
Status | Notes | List Price |
Online Price |
Quan Used |
Order Quan |
|---|---|---|---|---|---|---|---|---|---|

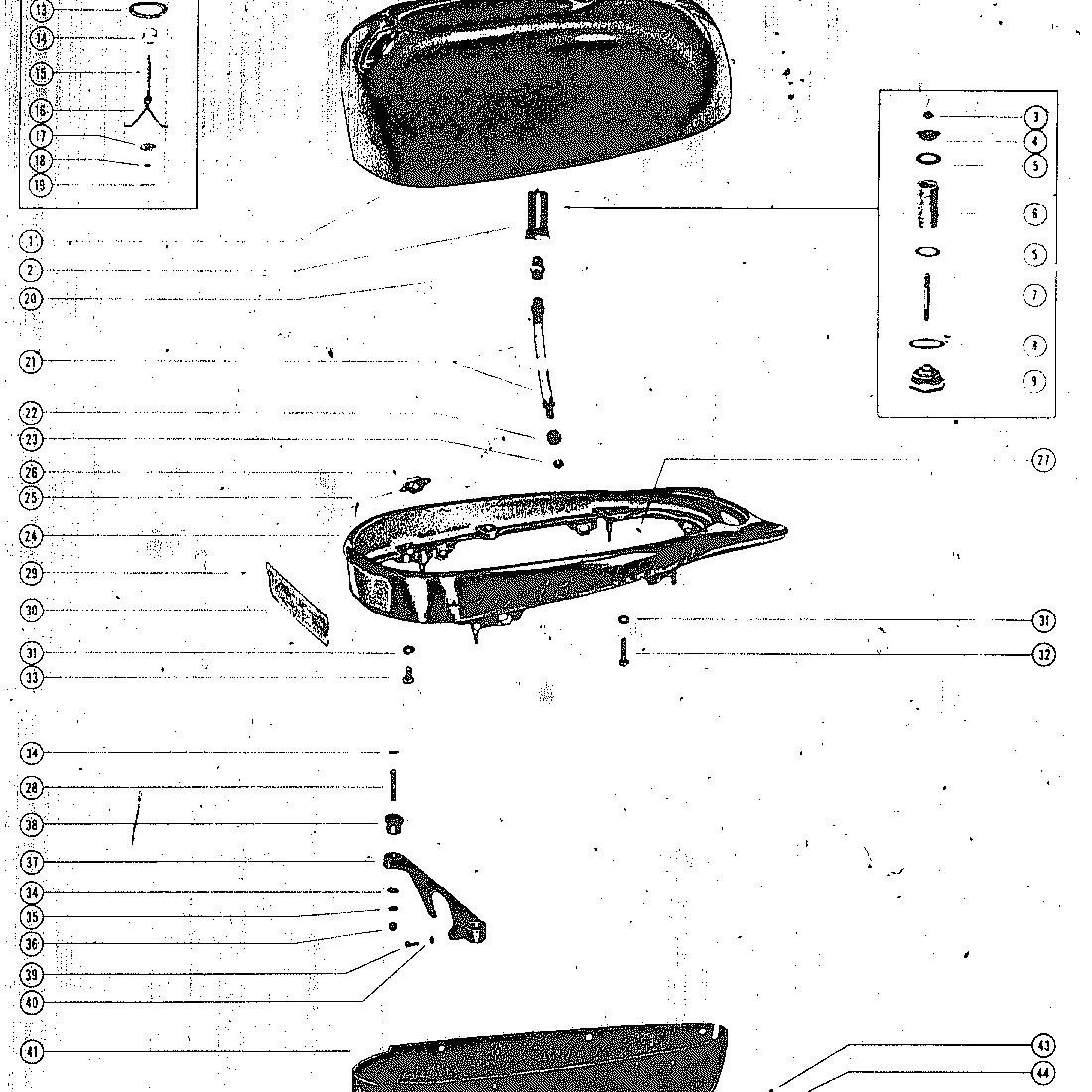

| - | 630A1 | FUEL TANK ASSEMBLY, COMPLETE | NLA |
|
$0.00 | $0.00 | 1,1 | ||
| 1 | 630 | --FUEL TANK | NLA |
|
$0.00 | $0.00 | 1,1 | ||
| 2 | 23342 | --FUEL FILTER ASSEMBLY | 23342A1 | SS |
|
$0.00 | $0.00 | 1,1 | |
| 3 | 8267086 | ----NUT, FUEL FILTER STUD | 20190 | SS |
|
$1.70 | $1.66 | 1,1 | |
| 4 | 21460 | ----END CAP, FUEL FILTER | NLA |
|
$0.00 | $0.00 | 1,1 | ||
| 5 | 21464 | ----WASHER, FUEL FILTER STUD | NLA |
|
$0.00 | $0.00 | 2,2 | ||
| 6 | 23342 | ----ELEMENT, FILTER | NLA |
|
$0.00 | $0.00 | 1,1 | ||
| 7 | 21451 | ----STUD, FUEL FILTER | NLA |
|
$0.00 | $0.00 | 1,1 | ||
| 8 | 23211 | ----GASKET,FUEL FILTER TO FUEL TANK | NLA |
|
$0.00 | $0.00 | 1,1 | ||
| 9 | 23263 | ----NUT, ADAPTOR-FUELFILTER | NLA |
|
$0.00 | $0.00 | 1,1 | ||
| 10 | 23338A1 | --FUEL TANK CAP ASSEMBLY (1 3/16") | NLA |
|
$0.00 | $0.00 | 1,1 | ||
| 11 | 23339 | ----SCREW, VENT-FUEL TANK CAP | NLA |
|
$0.00 | $0.00 | 1,1 | ||
| 12 | 8M0204663 | ----GASKET, FUEL TANK CAP VENT SCREW | 23245 | SS |
|
$1.20 | $1.18 | 1,1 | |
| 13 | 23331 | ----GASKET, FUEL TANK CAP TO FUEL TANK | NLA |
|
$0.00 | $0.00 | 1,1 | ||
| 14 | NSS | ----SPRING, FUEL TANK CAP |
|
$0.00 | $0.00 | 1,1 | |||
| 15 | 23589A1 | ----CHAIN AND SPRING ASSEMBLY | NLA |
|
$0.00 | $0.00 | 1,1 | ||
| 16 | 23244 | ------SPRING, FUEL TANK CAP RETAINING | NLA |
|
$0.00 | $0.00 | 1,1 | ||
| 17 | NSS | ----WASHER, CHAIN AND SPRING RETAINING |
|
$0.00 | $0.00 | 1,1 | |||
| 18 | 21273 | ----WASHER, FUEL TANK CAP VENT SCREW | 20286 | SS |
|
$9.00 | $8.78 | 1,1 | |
| 19 | 210711 | ----COTTER PIN, FUEL TANK CAP RETAINER | 20180 | SS |
|
$3.70 | $3.61 | 1,1 | |
| 10 | 21317A2 | FUEL TANK CAP ASSEMBLY (1 1/8") | NLA |
|
$0.00 | $0.00 | 1, | ||
| 11 | 23339 | --SCREW, VENT--FUEL TANK CAP | NLA |
|
$0.00 | $0.00 | 1, | ||
| 12 | 8M0204663 | --GASKET, FUEL TANK CAP VENT SCREW | 23245 | SS |
|
$1.20 | $1.18 | 1, | |
| 13 | 21544 | --GASKET, FUEL TANK CAP TO FUEL TANK | NLA |
|
$0.00 | $0.00 | 1, | ||
| 14 | NSS | --SPRING, FUEL TANK CAP |
|
$0.00 | $0.00 | 1, | |||
| 15 | 23589A1 | --CHAIN AND SPRING ASSEMBLY | NLA |
|
$0.00 | $0.00 | 1, | ||
| 16 | 23244 | ----SPRING, FUEL TANK CAP RETAINING | NLA |
|
$0.00 | $0.00 | 1, | ||
| 17 | NSS | --WASHER, CHAIN AND SPRING RETAINING |
|
$0.00 | $0.00 | 1, | |||
| 18 | 26014 | --WASHER, FUEL TANK VENT SCREW | NLA |
|
$0.00 | $0.00 | 1, | ||
| 19 | 210711 | --COTTER PIN, FUEL TANK CAP RETAINER | 20180 | SS |
|
$3.70 | $3.61 | 1, | |
| 20 | 23386 | CONNECTOR, FUEL FILTER TO FUEL LINE (5/16") | NLA |
|
$0.00 | $0.00 | 1,1 | ||
| 21 | 23439A1 | FUEL LINE ASSMBLY (5/16") | NLA |
|
$0.00 | $0.00 | 1,1 | ||
| 22 | 21113 | --NUT, COMPRESSION-FUEL LINE (5/16") | NLA |
|
$0.00 | $0.00 | 1,1 | ||
| 23 | 20395 | --SLEEVE, COMPRESSION-FUEL LINE (5/16") | 21685 | SS |
|
$0.00 | $0.00 | 1,1 | |
| 24 | 23344A1 | PROTECTORRIM ASSEMBLY | NLA |
|
$0.00 | $0.00 | 1, | ||
| 24 | 23413A2 | PROTECTOR RIM ASSEMBLY | NLA |
|
$0.00 | $0.00 | ,1 | ||
| 25 | 22684 | --NUT SPRING UNIT | NLA |
|
$0.00 | $0.00 | 6,6 | ||
| 26 | 23336 | --RIVET, SPRING UNIT NUT TO PROTECTOR RIM | NLA |
|
$0.00 | $0.00 | 12,12 | ||
| 27 | 20314 | --SCREW, DRIVE-INSIGNIA TO PROTECTOR RIM | NLA |
|
$0.00 | $0.00 | ,2 | ||
| 28 | 23345 | --STUD, PROTECTOR RIM TO FUEL TANK BRACKET (FRONT) | NLA |
|
$0.00 | $0.00 | 2, | ||
| 28 | 23346 | --ST6UD, PROTECTOR RIM TO CYLINDER BLOCK COVER (REAR) | NLA |
|
$0.00 | $0.00 | 2, | ||
| 28 | 728091 | --STUD, PROTECTOR RIM TO FUEL TANK BRACKET AND CYLINDER BLOCK | 20761 | SS |
|
$9.50 | $9.27 | ,4 | |
| 29 | 20314 | SCREW, DRIVE-SERIAL PLATE TO PROTECTOR RIM | NLA |
|
$0.00 | $0.00 | 4,4 | ||
| 30 | 23348 | SERIAL PLATE | NLA |
|
$0.00 | $0.00 | 1, | ||
| 30 | 23414 | SERIAL PLATE | NLA |
|
$0.00 | $0.00 | ,1 | ||
| 31 | 26992 | LOCKWASHER, FUEL TANK TO PROTECTOR RIM SCREW | ACT | $1.20 | $1.18 | 6,6 | |||
| 32 | 69028 | SCREW, FUEL TANK TO PROTECTOR RIM (REAR) | 21625 | SS |
|
$2.90 | $2.83 | 4,4 | |
| 33 | 20653 | SCREW, FUEL TANK TO PROTECTOR RIM (FRONT) | NLA |
|
$0.00 | $0.00 | 2,2 | ||
| - | 21717 | BISHING, PROTECTOR RIM TO FUEL TANK BRACKET | NLA |
|
$0.00 | $0.00 | 2, | ||
| - | 23326 | BISHING, PROTECTOR RIM TO CYLINDER BLOCK COVER | NLA |
|
$0.00 | $0.00 | 2, | ||
| 34 | 23327 | WASHER, PROTECTOR RIM TO FUEL TANK BRACKET AND CYLINDER BLOC | NLA |
|
$0.00 | $0.00 | 8, | ||
| 34 | 20028 | WASHER, PROTECTOR RIM TO FUEL TANK BRACKET AND CYLINDER BLO | ACT | $1.80 | $1.76 | ,8 | |||
| 35 | 24664 | WASHER, PROTECTOR RIM TO FUEL TANK BRACKET AND CYLINDER BLOC | ACT | $1.40 | $1.37 | 4, | |||
| 35 | 69057 | WASHER, PROTECTOR RIM TO FUEL TANK BRACKET AND CYLINDER BLO | 20346 | SS |
|
$1.80 | $1.76 | ,4 | |
| 36 | 8267089 | NUT, PROTECTOR RIM TO FUEL TANK BRACKET AND CYLINDER BLOCK C | 20361 | SS |
|
$1.50 | $1.47 | 4,4 | |
| 37 | 21726 | BRACKET, FUEL TANK | NLA |
|
$0.00 | $0.00 | 1,1 | ||
| - | 21870A3 | FUEL TANK BRACKET ASSEMBLY | NLA |
|
$0.00 | $0.00 | ,1 | ||
| 37 | 21870A1 | --FUEL TANK BRACKET ASSEMBLY | NLA |
|
$0.00 | $0.00 | ,1 | ||
| 38 | 26348 | --BRUSHING, FUEL TANK BRACKET | NLA |
|
$0.00 | $0.00 | ,2 | ||
| 39 | 32417 | SCREW, FUEL TANK BRACKET TO CYLINDER BLOCK | 21548 | SS |
|
$1.10 | $1.08 | 4,4 | |
| 40 | 26992 | LOCKWASHER, FUEL TANK BRACKET TO CYLINDER BLOCK SCREW | ACT | $1.20 | $1.18 | 4,4 | |||
| 41 | 632A1 | COWL ASSEMBLY | NLA |
|
$0.00 | $0.00 | 1, | ||
| 41 | 635A1 | COWL ASSEMBLY | NLA |
|
$0.00 | $0.00 | ,1 | ||
| 42 | 22683 | --GROMMET, CHOKE ROD | NLA |
|
$0.00 | $0.00 | 1,1 | ||
| 43 | 23333 | --PIN, CROSS | NLA |
|
$0.00 | $0.00 | 7,7 | ||
| 44 | 23335 | --STUD, SLIDES-COWL TO PROTECTOR RIM | NLA |
|
$0.00 | $0.00 | 6,6 | ||
| 45 | 22684 | ,FASTENER, SPRING UNIT | 23347 | SS |
|
$0.00 | $0.00 | 1,1 | |
| 46 | 23334 | --STUD, REAR-COWL TO COWL | NLA |
|
$0.00 | $0.00 | 1,1 | ||
| 47 | 22685 | --RIVET, SPRING UNIT FASTENER TO COWL | NLA |
|
$0.00 | $0.00 | 2,2 |
