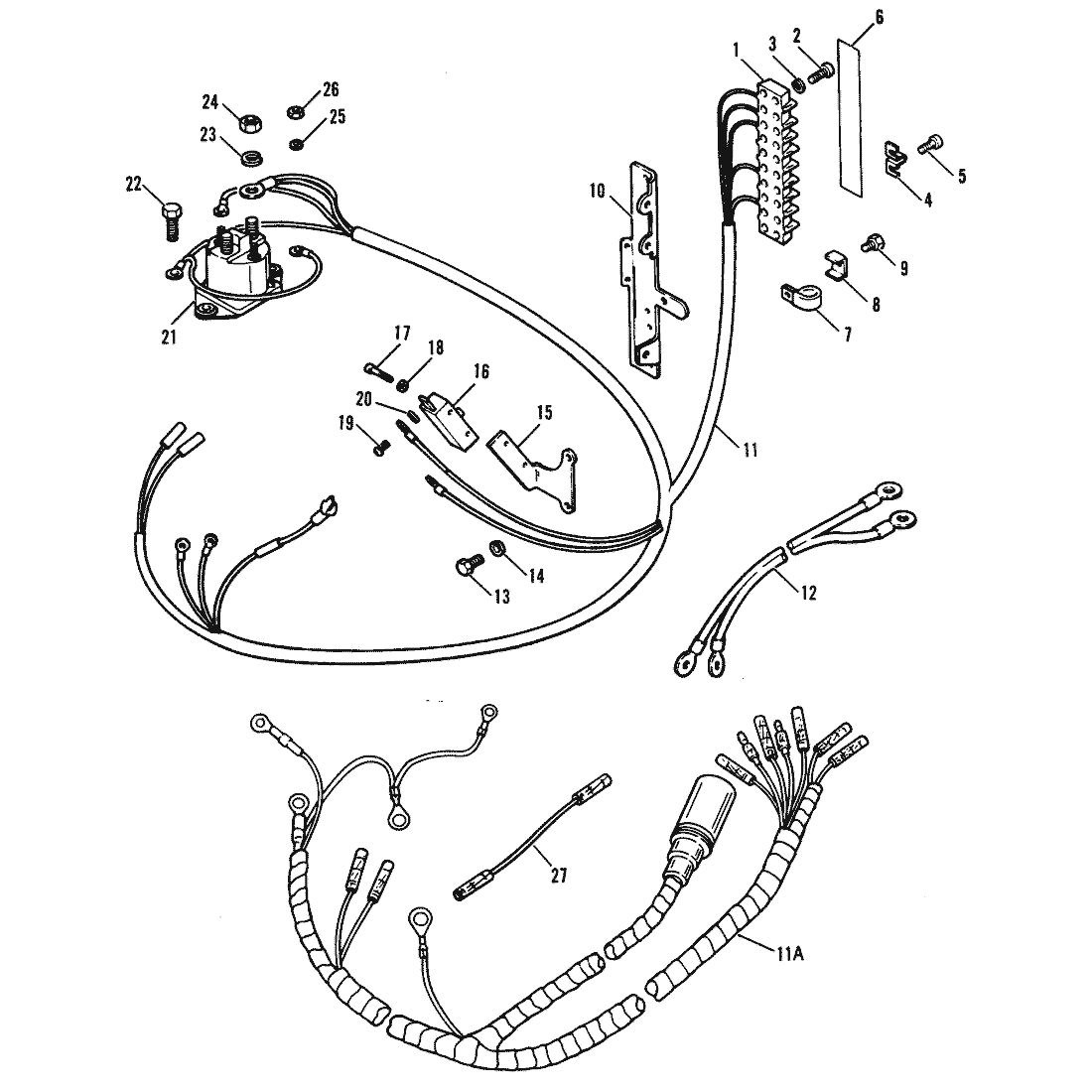

| Ref # | Current Part Nbr |
Description | Superceded From |
Status | Notes | List Price |
Online Price |
Quan Used |
Order Quan |
|---|---|---|---|---|---|---|---|---|---|
| 1 | FA616497 | BLOCK KIT, Terminal | NLA |
|
$0.00 | $0.00 | 1 | ||
| 2 | 41069 | --SCREW (10-24 x 3/4") | ACT |
|
$2.00 | $1.96 | 2 | ||
| 3 | 26996 | --LOCKWASHER (#10) | ACT |
|
$1.20 | $1.18 | 2 | ||
| 4 | F307317 | --CLIP, Ground | NLA |
|
$0.00 | $0.00 | 2 | ||
| 5 | 41069 | SCREW (10-24 x 3/4") | ACT |
|
$2.00 | $1.96 | 2 | ||
| 6 | F529398-1 | DECAL, Wiring | NLA |
|
$0.00 | $0.00 | 1 | ||
| 7 | F289446-1 | CLAMP | NLA |
|
$0.00 | $0.00 | 1 | ||
| 8 | F438668 | RETAINER, Cable Clamp | NLA |
|
$0.00 | $0.00 | 1 | ||
| 9 | 34939 | SCREW (1/4-20 x 1/2") | NLA |
|
$0.00 | $0.00 | 1 | ||
| 10 | F438493 | BRACKET, Terminal Block | NLA |
|
$0.00 | $0.00 | 1 | ||
| 11 | 817459A1 | HARNESS ASSEMBLY, Wiring | NLA |
|
$0.00 | $0.00 | 1 | ||
| 11A | 827244A1 | HARNESS ASSEMBLY, Wiring | 823392A1 | SS |
|
$177.17 | $166.84 | 1 | |
| 11A | 827244A1 | HARNESS ASSEMBLY, Wiring | ACT |
|
$177.17 | $166.84 | 1 | ||
| 12 | 8M0210761 | CABLE, Battery | F381896-4 | SS |
|
$129.92 | $122.35 | 1 | |
| 13 | 819110100 | SCREW (1/4-20 x 1") | F1532 | SS |
|
$0.50 | $0.49 | 2 | |
| 14 | 26996 | LOCKWASHER (#10) | ACT |
|
$1.20 | $1.18 | 2 | ||
| 15 | F749551-1 | BRACKET, Interlock Switch | NLA |
|
$0.00 | $0.00 | 1 | ||
| 16 | F84449 | SWITCH, Starter Interlock | NLA |
|
$0.00 | $0.00 | 1 | ||
| 17 | F2193 | SCREW (6-32 x 7/8") | NLA |
|
$0.00 | $0.00 | 2 | ||
| 18 | 27882 | WASHER (1991B Thru 1992C) | ACT |
|
$1.21 | $1.19 | 2 | ||
| 19 | 69080 | SCREW (6-32 x 1/4") | NLA |
|
$0.00 | $0.00 | 2 | ||
| 20 | F1704 | LOCKWASHER (#6) | NLA |
|
$0.00 | $0.00 | 2 | ||
| 21 | 817109A3 | RELAY, Starter | F460917-1 | SS |
|
$82.83 | $79.67 | 1 | |
| 22 | 820628 | SCREW (1/4-20 x 5/8") | NLA |
|
$0.00 | $0.00 | 2 | ||
| 23 | 53166 | LOCKWASHER (5/16") | ACT | $1.80 | $1.76 | 2 | |||
| 24 | 8M0204668 | NUT (5/16-18) | 68292 | SS |
|
$3.80 | $3.71 | 2 | |
| 25 | 26996 | LOCKWASHER (#10) | ACT | $1.20 | $1.18 | 2 | |||
| 26 | 68219 | NUT (10-32) | ACT | $3.00 | $2.93 | 2 | |||
| 27 | 825275A1 | CABLE ASSEMBLY (Black/Yellow) | NLA |
|
$0.00 | $0.00 | 1 | ||
| -- | 823461 | CABLE TIE (8-1/2") | NLA |
|
$0.00 | $0.00 | AR |
