| Ref # | Current Part Nbr |
Description | Superceded From |
Status | Notes | List Price |
Online Price |
Quan Used |
Order Quan |
|---|---|---|---|---|---|---|---|---|---|

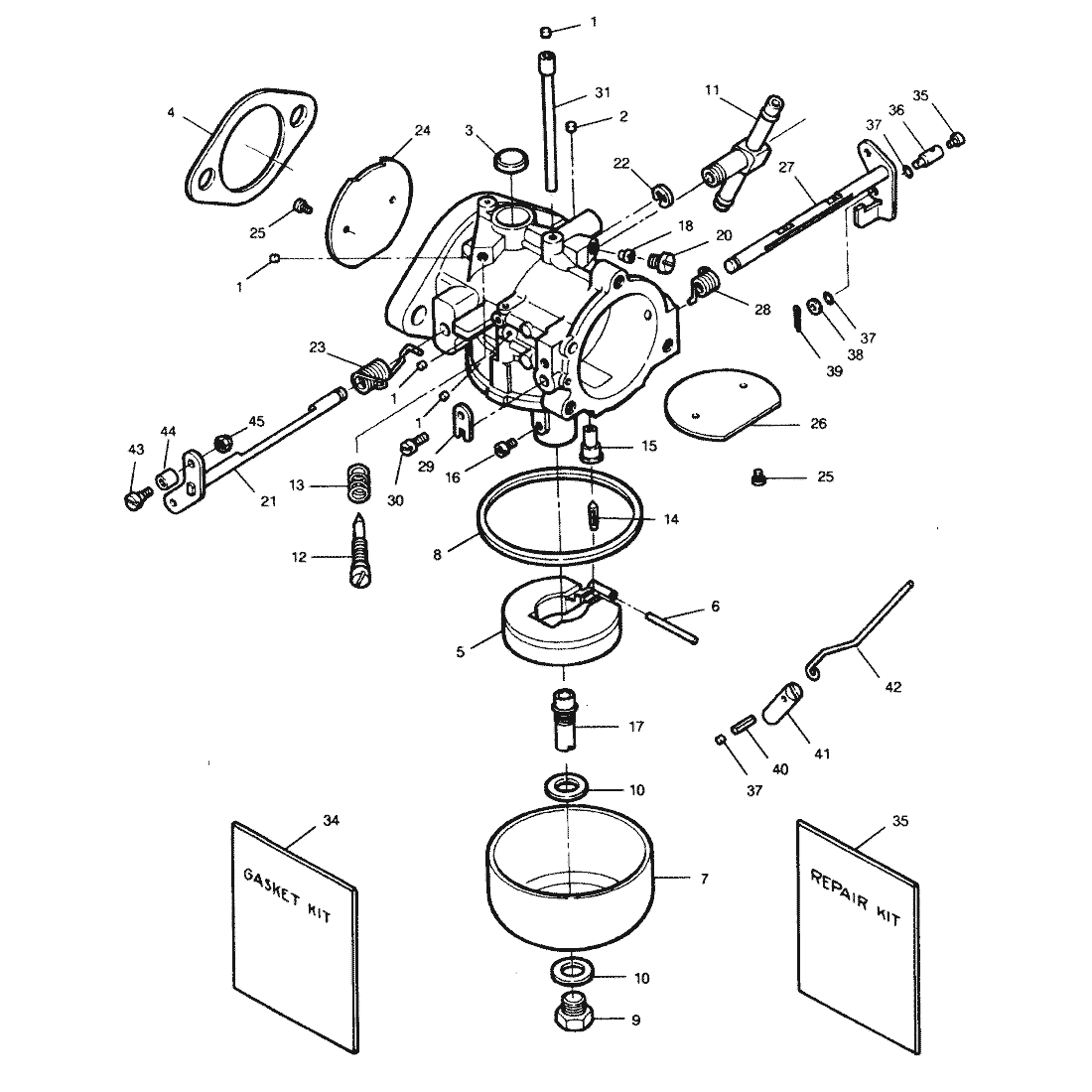

| -- | 819671 | CARBURETOR, COMPLETE (TC-102A) | F718061 | SS |
|
$0.00 | $0.00 | 1 | |
| 1 | NSS | PLUG |
|
$0.00 | $0.00 | 6 | |||
| 2 | F10263 | PLUG | NLA |
|
$0.00 | $0.00 | 1 | ||
| 3 | NSS | PLUG |
|
$0.00 | $0.00 | 1 | |||
| 4 | F440906 | GASKET | ACT | $3.09 | $3.01 | 1 | |||
| 5 | NSS | FLOAT |
|
$0.00 | $0.00 | 1 | |||
| 6 | NSS | PIN, FLOAT LEVER |
|
$0.00 | $0.00 | 1 | |||
| 7 | NSS | BOWL, FUEL |
|
$0.00 | $0.00 | 1 | |||
| 8 | NSS | GASKET, FUEL BOWL |
|
$0.00 | $0.00 | 1 | |||
| 9 | NSS | SCREW, FUEL BOWL RETAINING |
|
$0.00 | $0.00 | 1 | |||
| 10 | NSS | GASKET |
|
$0.00 | $0.00 | 2 | |||
| 11 | F84314-2 | ELBOW | NLA |
|
$0.00 | $0.00 | 1 | ||
| 12 | F10268 | SCREW, IDLE MIXTURE | ACT | $21.59 | $21.20 | 1 | |||
| 13 | NSS | SPRING |
|
$0.00 | $0.00 | 1 | |||
| 14 | F10265 | INLET NEEDLE & SEAT | F10264 | SS |
|
$16.79 | $16.45 | 1 | |
| 16 | 7335 | MAIN FUEL JET (.098) SEA LEVEL - 1500 FT. | F10269 | SS |
|
$3.79 | $3.69 | 1 | |
| - | 6249 | MAIN FUEL JET ( .096) 1500- 3000 FT. | F10271 | SS |
|
$15.99 | $15.61 | 1 | |
| - | NSS | MAIN FUEL JET ( .094) 3000 - 4500 FT. |
|
$0.00 | $0.00 | 1 | |||
| - | NSS | MAIN FUEL JET ( .092) 4500 - 6000 FT. |
|
$0.00 | $0.00 | 1 | |||
| - | NSS | MAIN FUEL JET ( .090) 6000 - UP |
|
$0.00 | $0.00 | 1 | |||
| 17 | NSS | NOZZLE |
|
$0.00 | $0.00 | 1 | |||
| 18 | F10273 | JET, MID RANGE | ACT | $18.39 | $18.01 | 1 | |||
| 20 | F10275 | SCREW | ACT | $3.79 | $3.69 | 1 | |||
| 21 | NSS | SHAFT, THROTTLE |
|
$0.00 | $0.00 | 1 | |||
| 22 | NSS | E- RING |
|
$0.00 | $0.00 | 1 | |||
| 23 | NSS | SPRING, THROTTLE RETURN |
|
$0.00 | $0.00 | 1 | |||
| 24 | F10335 | SHUTTER, THROTTLE | NLA |
|
$0.00 | $0.00 | 1 | ||
| 25 | 803176 | SCREW | F10328 | SS |
|
$3.59 | $3.50 | 4 | |
| 26 | NSS | SHUTTER, CHOKE |
|
$0.00 | $0.00 | 1 | |||
| 27 | F10336 | SHAFT, CHOKE | NLA |
|
$0.00 | $0.00 | 1 | ||
| 28 | F10285 | SPRING | NLA |
|
$0.00 | $0.00 | 1 | ||
| 29 | NSS | CLIP |
|
$0.00 | $0.00 | 1 | |||
| 30 | F10284 | SCREW | NLA |
|
$0.00 | $0.00 | 1 | ||
| 31 | NSS | TUBE, IDLE BY-PASS |
|
$0.00 | $0.00 | 1 | |||
| 32 | F84314-2 | ELBOW | NLA |
|
$0.00 | $0.00 | 1 | ||
| 33 | 820576A1 | REPAIR KIT | FK10288 | SS |
|
$0.00 | $0.00 | 1 | |
| 34 | FK10023 | GASKET SET | F10023 | SS |
|
$11.09 | $10.83 | 1 | |
| 35 | F1059 | SCREW, 6 - 32 X 1/4 | NLA |
|
$0.00 | $0.00 | 1 | ||
| 36 | F184033-1 | SWIVEL | F184033 | SS |
|
$0.00 | $0.00 | 1 | |
| 37 | 68211 | SEAL | F184579 | SS |
|
$1.40 | $1.37 | 3 | |
| 38 | 27882 | WASHER | F8088 | SS |
|
$1.23 | $1.21 | 1 | |
| 39 | 26953 | COTTER PIN | F1014 | SS |
|
$4.19 | $4.10 | 1 | |
| 40 | F2033 | GROOVE PIN | F2023 | SS |
|
$0.00 | $0.00 | 1 | |
| 41 | F391926-1 | PLUNGER, CHOKE | NLA |
|
$29.23 | $28.73 | 1 | ||
| 42 | F718925 | ROD, CHOKE | NLA |
|
$0.00 | $0.00 | 1 | ||
| 43 | 830110 | SHAFT, THROTTEL ROLLER | F333316 | SS |
|
$0.00 | $0.00 | 1 | |
| 44 | 819225 | ROLLER | F92759 | SS |
|
$0.00 | $0.00 | 1 | |
| 45 | 8267094 | NUT 1 | F1997 | SS |
|
$1.64 | $1.62 |
