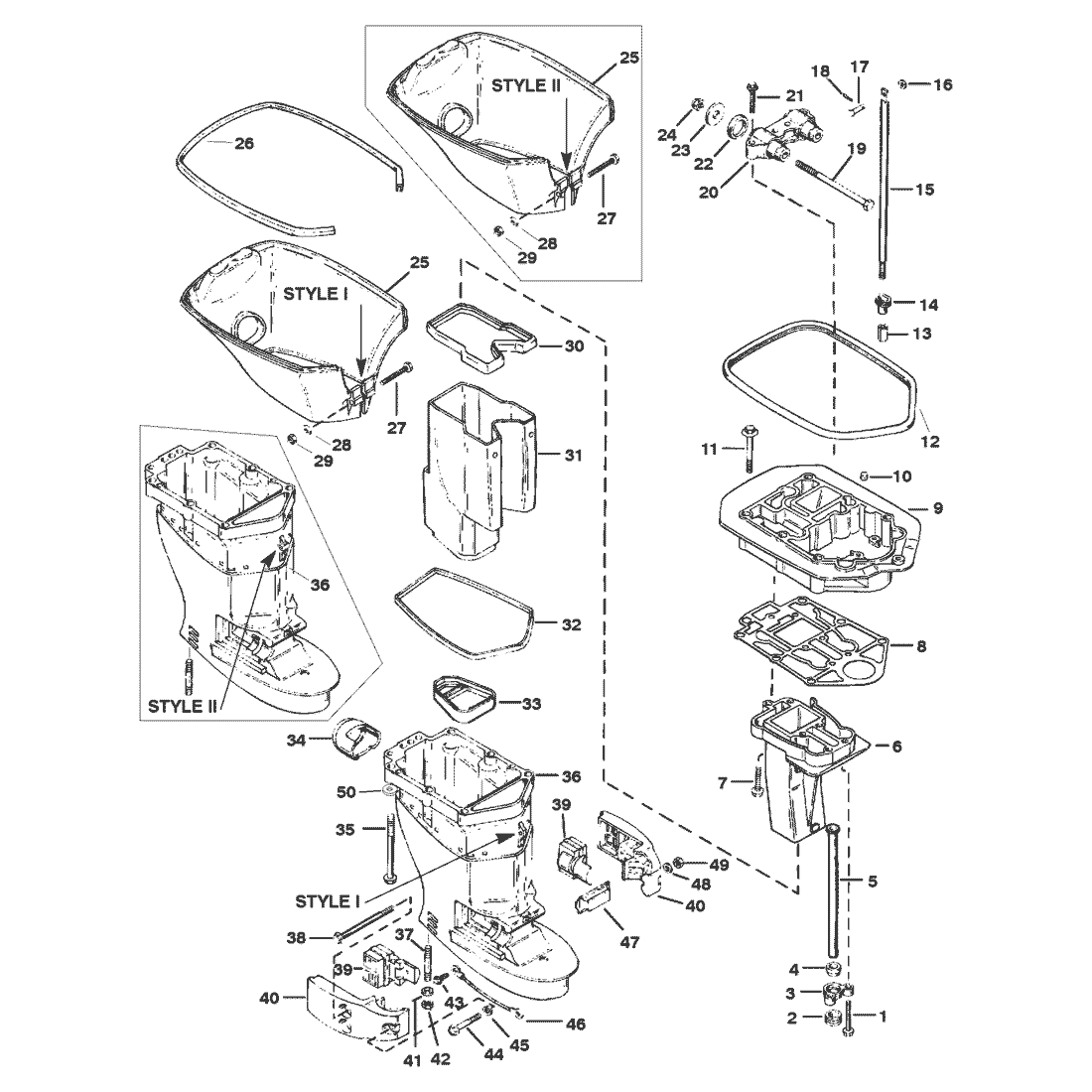

| Ref # | Current Part Nbr | Description | Superceded From | Status | Notes | List Price | Online Price | Quan Used | Order Quan |
|---|---|---|---|---|---|---|---|---|---|
| 1 | 40011155 | SCREW (M8 x 55) | ACT | $5.90 | $5.76 | 2 | |||
| 2 | 93221002 | GROMMET-Water Tube | 93221 | SS |  | $3.60 | $3.52 | 1 | |
| 3 | 99019 | CLAMP-Water Tube | ACT | $3.60 | $3.52 | 1 | |||
| 4 | 42941001 | SEAL-Water Tube | 42941 | SS | | $5.00 | $4.88 | 1 | |
| 5 | 8M0042794 | TUBE-Water | 430143 | SS | | $37.75 | $37.07 | 1 | |
| 6 | 8200691 | TUBE-Exhaust | NLA | | $73.00 | $70.22 | 1 | ||
| 7 | 40011153 | SCREW (M8 x 45) | ACT | | $5.20 | $5.08 | 3 | ||
| 8 | 826739 | GASKET-Exhaust Tube/Adaptor Plate | ACT | | $22.33 | $21.93 | 1 | ||
| 9 | 820268A1 | PLATE ASSEMBLY-Adaptor-Lower | ACT | | $80.33 | $77.27 | 1 | ||
| 10 | 23784 | --PIN-Dowel | ACT | | $5.00 | $4.88 | 4 | ||
| 11 | 4010875 | SCREW (M10 x 75) | ACT | | $14.60 | $14.24 | 1 | ||
| 12 | 8M0043148 | SEAL-Bottom Cowl | 821510 | SS | | $116.58 | $109.79 | 1 | |
| 13 | 822419 | COUPLER | ACT | $26.83 | $26.35 | 1 | |||
| 14 | 822408001 | GROMMET-Shift Shaft | 822408 | SS | | $5.60 | $5.47 | 1 | |
| 15 | 880042 | SHAFT-Shift Upper | 822418 | SS | | $88.42 | $85.04 | 1 | |
| 16 | 89302 | WASHER | ACT | $1.70 | $1.66 | 1 | |||
| 17 | 822417 | PIN-Shift Link | ACT | $3.90 | $3.81 | 1 | |||
| 18 | 210711 | PIN-Cotter | 269531 | SS | | $3.60 | $3.52 | 1 | |
| 19 | 8M0000520 | SCREW (M12 x 162) | 822396 | SS | | $13.20 | $12.88 | 2 | |
| 20 | 8M4501491 | MOUNT | 812893 | SS | | $83.08 | $79.91 | 1 | |
| 21 | 40011153 | SCREW (M8 x 45) | ACT | | $5.20 | $5.08 | 4 | ||
| 22 | 32834 | WASHER | 93416 | SS | | $5.50 | $5.37 | 2 | |
| 23 | 8M0204648 | WASHER | 28421 | SS | | $3.80 | $3.71 | 2 | |
| 24 | 896963 | NUT (M12) | 90099 | SS | | $5.90 | $5.76 | 2 | |
| 25 | 821512A4 | TRIM COVER ASSY (Painted) | 821512A3 | SS | | $229.95 | $216.55 | 1 | |
| 25 | 821512A4 | TRIM COVER ASSY (Painted) | 821512A6 | SS | | $229.95 | $216.55 | 1 | |
| 26 | 8M0043155 | --BUMPER-Trim Cover | 822421 | SS | | $33.25 | $32.65 | 1 | |
| 27 | 826173 | SCREW (M5 x 60) | ACT | $1.10 | $1.08 | 1 | |||
| 28 | 73288 | WASHER | ACT | $1.40 | $1.37 | 1 | |||
| 29 | 400263 | NUT (M5) | NLA | | $2.02 | $1.97 | 1 | ||
| 30 | 8249423 | SEAL-Exhaust Bucket | ACT | $28.33 | $27.83 | 1 | |||
| 31 | 8M0036863 | BUCKET-Exhaust | 824795 | SS | | $100.00 | $94.18 | 1 | |
| 32 | 8M0043170 | BUMPER-Trim Cover | 8270231 | SS | | $6.60 | $6.44 | 1 | |
| 33 | 822395001 | SEAL-Exhaust Tube | 822395 | SS | | $12.90 | $12.58 | 1 | |
| 34 | 822422001 | SEAL-Idle Relief | 822422 | SS | | $20.25 | $19.89 | 1 | |
| 35 | 4000386 | SCREW (M10 x 100) | NLA | | $11.20 | $10.93 | 6 | ||
| 36 | 821447A9 | DRIVESHAFT HOUSING ASSY (Painted) | 821447A3 | SS | | $596.28 | $549.54 | 1 | |
| 36 | 821447T12 | DRIVESHAFT HOUSING ASSY (Painted) | 821447A6 | SS | | $548.85 | $505.81 | 1 | |
| 37 | 823984 | --STUD (M10 x 50) | ACT | $31.50 | $30.93 | 1 | |||
| 38 | 824459120 | SCREW (M8 x 120) | ACT | $13.20 | $12.88 | 2 | |||
| 39 | 821781003 | MOUNT (LOWER) | 8217812 | SS | | $14.80 | $14.44 | 2 | |
| 40 | 821780T5 | COVER-Mount (Painted) | 821780F3 | SS | | $57.33 | $55.15 | 2 | |
| 41 | 8M0214963 | WASHER | 45175 | SS | | $2.50 | $2.44 | 1 | |
| 42 | 40140 | NUT (M10) | 13914 | SS | | $3.29 | $3.21 | 1 | |
| 43 | 878607 | SCREW (#10-16 x .375) | 817626 | SS | | $1.10 | $1.08 | 1 | |
| 44 | 82445965 | SCREW (M8 x 65) | ACT | $8.40 | $8.20 | 1 | |||
| 45 | 72521 | LOCKWASHER (.312 Internal) | ACT | $1.40 | $1.37 | 1 | |||
| 46 | 88238A11 | CABLE ASSEMBLY | ACT | $11.30 | $11.02 | 1 | |||
| 47 | 821782002 | BUMPER (FRONT) | 8217821 | SS | | $9.40 | $9.17 | 1 | |
| 48 | 36001 | WASHER | ACT | $1.40 | $1.37 | 3 | |||
| 49 | 401378 | NUT (M8 x 1.25) | 401198 | SS | | $10.00 | $9.76 | 3 | |
| 50 | 8M0214963 | WASHER | 45175 | SS | | $2.50 | $2.44 | 6 | |
| - | 820751A2 | GASKET SET-Powerhead | ACT | $109.58 | $103.20 | 1 |
