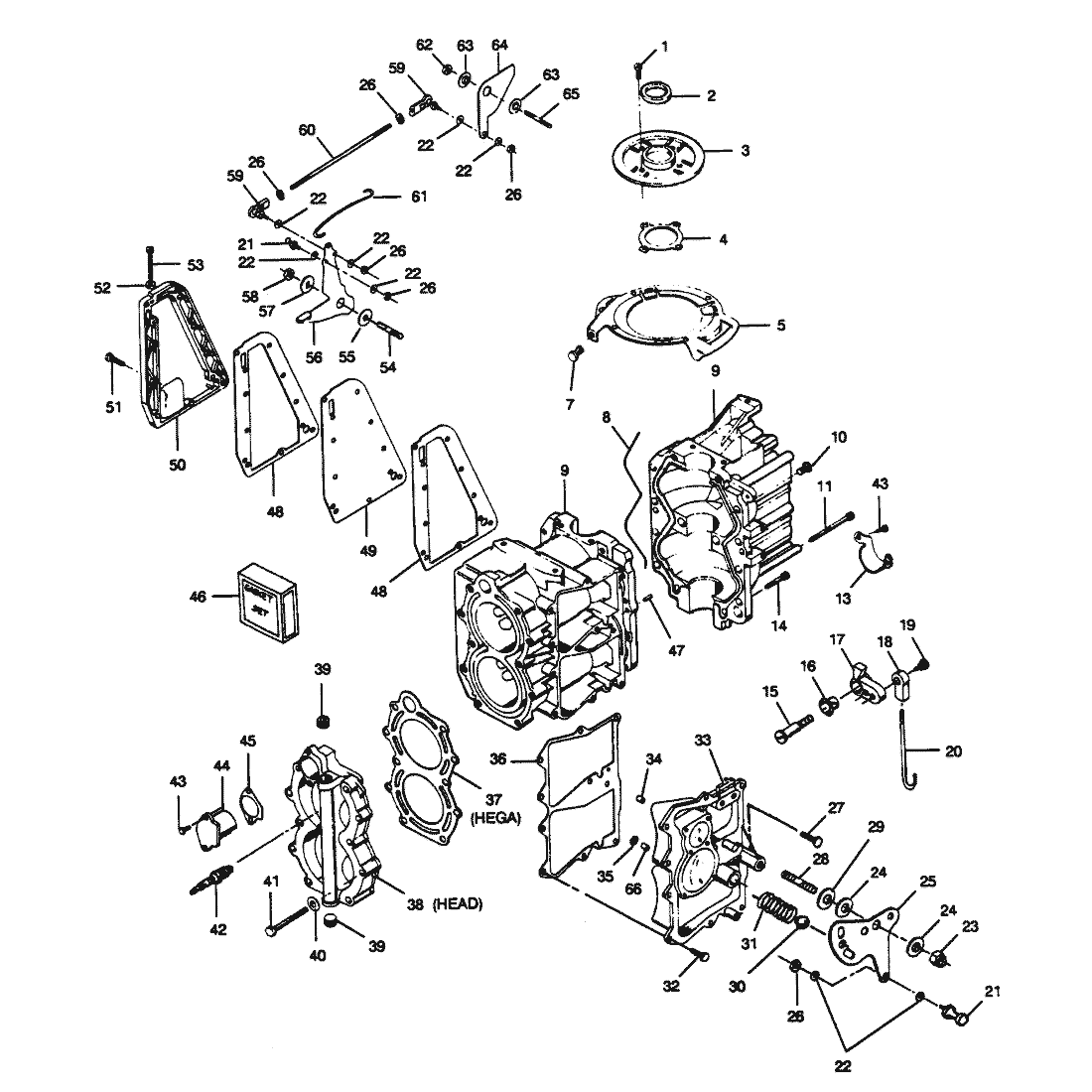

| Ref # | Current Part Nbr |
Description | Superceded From |
Status | Notes | List Price |
Online Price |
Quan Used |
Order Quan |
|---|---|---|---|---|---|---|---|---|---|
| 1 | F1107 | FILL, HEAD SCREW, 1/4 - 20 X 3/4 | NLA |
|
$0.00 | $0.00 | 4 | ||
| 2 | F458146 | SEAL, CRANKSHAFT UPPER MAIN | NLA |
|
$0.00 | $0.00 | 1 | ||
| 3 | FA458144 | CAGE, CRANKSHAFT BEARING | NLA |
|
$0.00 | $0.00 | 1 | ||
| 4 | F458277 | GASKET, CRANKSHAFT BEARING CAGE | NLA |
|
$0.00 | $0.00 | 1 | ||
| 5 | 817833A1 | MAGNETO STATOR RING | NLA |
|
$0.00 | $0.00 | 1 | ||
| 7 | F1727 | PLASTI-RIVET | NLA |
|
$0.00 | $0.00 | 1 | ||
| 8 | F184122-1 | SEAL, CRANKCASE PARTING LINE | ACT | $20.70 | $20.19 | 1 | |||
| 9 | 819466A2 | CYLINDER W/CRANKCASE COVER | FA683010 | SS |
|
$0.00 | $0.00 | 1 | |
| - | 817920A2 | SHORT BLOCK | NLA |
|
$0.00 | $0.00 | 1 | ||
| 10 | 28636 | HEX HEAD SCREW, 1/4 - 20 X 3/4 | F1864 | SS |
|
$1.80 | $1.76 | 8 | |
| 11 | F2005 | HEX SOCKET HEAD CAP SCREW, 5/16 - 18 X 2-3/4 | NLA |
|
$0.00 | $0.00 | 2 | ||
| 13 | F460317-2 | CLAMP, SOLENOID FOR ELECTRIC START | NLA |
|
$0.00 | $0.00 | 1 | ||
| 14 | 47819 | HEX SOCKET HEAD CAP SCREW, 5/16 - 18 X 1-1/4 | F2013 | SS |
|
$0.00 | $0.00 | 4 | |
| 15 | F85026 | SWIVEL, SHIFT INTERLOCK LEVER | NLA |
|
$0.00 | $0.00 | 1 | ||
| 16 | 26841 | BEARING | F307818 | SS |
|
$7.59 | $7.42 | 1 | |
| 17 | F458977-3 | LEVER, SHIFT INTERLOCK | NLA |
|
$0.00 | $0.00 | 1 | ||
| 18 | 816514 | BEARING, SHIFT INTERLOCK ROD | F84035-2 | SS |
|
$0.00 | $0.00 | 1 | |
| 19 | 819625 | SWIVEL, SHIFT INTERLOCK BEARING | F84026 | SS |
|
$0.00 | $0.00 | 1 | |
| 20 | 817805A1 | ROD, SHIFT INTERLOCK | NLA |
|
$0.00 | $0.00 | 1 | ||
| 21 | F98273 | STUD, ROD END CONNECTOR | NLA |
|
$11.21 | $10.93 | 2 | ||
| 22 | F8058 | INTERNAL TOOTH LOCKWASHER | NLA |
|
$0.00 | $0.00 | 8 | ||
| 23 | 82670912 | LOCK NUT, 3/8 - 16 | F7004 | SS |
|
$6.80 | $6.64 | 1 | |
| 24 | F269052 | BEARING SHIFT LEVER | NLA |
|
$0.00 | $0.00 | 2 | ||
| 25 | 817808A2 | LEVER, GEAR SHIFT | NLA |
|
$0.00 | $0.00 | 1 | ||
| 26 | 68219 | HEX NUT, 10 - 32 | F1513 | SS |
|
$3.00 | $2.93 | 2 | |
| 27 | 20540 | HEX HEAD SCREW, 1/4 - 20 X 5/8 | F1110 | SS |
|
$0.00 | $0.00 | 1 | |
| 28 | 8263872 | STUD, GEAR SHIFT LEVER | F440209 | SS |
|
$0.00 | $0.00 | 1 | |
| 29 | 34931 | PLAIN WASHER | F2014 | SS |
|
$2.60 | $2.54 | 1 | |
| 30 | F458727 | BALL, SHIFT LEVER DETENT | NLA |
|
$0.00 | $0.00 | 1 | ||
| 31 | F183300 | SPRING, SHIFT DETENT | NLA |
|
$0.00 | $0.00 | 1 | ||
| 32 | F1922 | HEX CAP SCREW, 1/4 - 20 X 5/8 | NLA |
|
$0.00 | $0.00 | 9 | ||
| 33 | FA683222 | COVER, TRANSFER PORT W/VALVES, SCREENS & STUD | NLA |
|
$0.00 | $0.00 | 1 | ||
| 34 | 817741A1 | VALVE CHECK | NLA |
|
$0.00 | $0.00 | 2 | ||
| 35 | F429811 | SCREEN, CYLINDER DRAIN | ACT | $1.10 | $1.08 | 2 | |||
| 36 | 819413 | GASKET, TRANSFER PORT COVER | F458223 | SS |
|
$0.00 | $0.00 | 1 | |
| 37 | F513529 | GASKET, CYLINDER HEAD | NLA |
|
$0.00 | $0.00 | 1 | ||
| 38 | 817843A2 | CYLINDER HEAD | 817843A1 | SS |
|
$0.00 | $0.00 | 1 | |
| 39 | F458109 | PLUG, CYLINDER HEAD | NLA |
|
$0.00 | $0.00 | 2 | ||
| 40 | 8M0204690 | PLAIN WASHER | F1739 | SS |
|
$1.80 | $1.76 | 7 | |
| 41 | F1882 | SCREW, 5/16 - 18 X 2-1/8 | NLA |
|
$0.00 | $0.00 | 10 | ||
| 42 | 813472 | SPARK PLUG (L82C) | 82370M | SS |
|
$9.29 | $9.07 | 2 | |
| 43 | 28635 | HEX CAP SCREW, 1/4 - 20 X 5/8 | F1854 | SS |
|
$1.80 | $1.76 | 4 | |
| 44 | F458066 | THERMOSTAT COVER | NLA |
|
$0.00 | $0.00 | 1 | ||
| 45 | F458067 | GASKET, THERMOSTAT COVER | NLA |
|
$0.00 | $0.00 | 1 | ||
| 46 | FG1014-2 | GASKET SET - | FG1014-1 | SS |
|
$0.00 | $0.00 | 1 | |
| - | F84792 | *GASKET, FUEL PUMP VALVE | ACT | $3.40 | $3.32 | 3 | |||
| - | F433168 | *GASKET, CARBURETOR ADAPTER | ACT | $2.70 | $2.64 | 1 | |||
| - | F433406 | *GASKET, DEFLECTOR PLATE | ACT | $5.10 | $4.98 | 1 | |||
| - | 823606 | *GASKET, FUEL PUMP BOWL | F438617 | SS |
|
$14.90 | $14.53 | 1 | |
| - | 820490 | *GASKET, FUEL PUMP | F438760 | SS |
|
$4.60 | $4.49 | 1 | |
| - | F458067 | *GASKET, THERMOSTAT COVER | NLA |
|
$0.00 | $0.00 | 1 | ||
| - | 819478 | *GASKET, EXHAUST PORT PLATE | F458154 | SS |
|
$0.00 | $0.00 | 2 | |
| - | 819413 | *GASKET, TRANSER PORT COVER | F458223 | SS |
|
$0.00 | $0.00 | 1 | |
| - | F458277 | *GASKET, CRANKSHAFT BEARING CAGE | NLA |
|
$0.00 | $0.00 | 1 | ||
| - | F458279 | *GASKET, CYLINDER EXHAUST | NLA |
|
$0.00 | $0.00 | 1 | ||
| - | F458453 | *GASKET, LEG EXHAUST | NLA |
|
$0.00 | $0.00 | 1 | ||
| - | F513529 | *GASKET, CYLINDER HEAD | NLA |
|
$0.00 | $0.00 | 1 | ||
| - | 828925 | *GASKET, CARBURETOR | F85906 | SS |
|
$2.39 | $2.33 | 1 | |
| - | F683279 | *GASKET, CYLINDER EXHAUST | NLA |
|
$0.00 | $0.00 | 1 | ||
| 47 | F8559 | DOWEL PIN | NLA |
|
$0.00 | $0.00 | 2 | ||
| 48 | 819478 | GASKET, EXHAUST PORT PLATE | F458154 | SS |
|
$0.00 | $0.00 | 2 | |
| 49 | F458151 | EXHAUST PORT PLATE | NLA |
|
$0.00 | $0.00 | 1 | ||
| 50 | F458152-1 | EXHAUST PORT COVER | NLA |
|
$0.00 | $0.00 | 1 | ||
| 51 | 819110100 | HEX HEAD SCREW, 1/4 - 20 X 1 | F1532 | SS |
|
$0.50 | $0.49 | 10 | |
| 52 | 64015 | HEX NUT | F1341 | SS |
|
$2.81 | $2.75 | 1 | |
| 53 | F1072 | ---------- HEAD SCREW, 1/4 - 20 X 1-3/4 | NLA |
|
$0.00 | $0.00 | 1 | ||
| 54 | F286440 | STUD, MAGNETO CONTROL LEVER | NLA |
|
$0.00 | $0.00 | 1 | ||
| 55 | F183813 | BEARING | NLA |
|
$0.00 | $0.00 | 1 | ||
| 56 | F2A458081 | MAGNETO CONTROL LEVER | NLA |
|
$0.00 | $0.00 | 1 | ||
| 57 | F286282 | WASHER | NLA |
|
$0.00 | $0.00 | 1 | ||
| 58 | F1803 | STOP NUT | NLA |
|
$0.00 | $0.00 | 1 | ||
| 59 | 828514A1 | JOINT, BALL ASSEMBLY | 8177471 | SS |
|
$22.08 | $21.69 | 2 | |
| 60 | F458502 | ROD, THROTTLE CAM | NLA |
|
$0.00 | $0.00 | 1 | ||
| 61 | F458509 | LINK, MAGNETO STATOR | NLA |
|
$0.00 | $0.00 | 1 | ||
| 62 | 8267088 | LOCK NUT | F7008 | SS |
|
$1.70 | $1.66 | 1 | |
| 63 | F269319 | BEARING, THROTTLE CAM | NLA |
|
$0.00 | $0.00 | 2 | ||
| 64 | F458192-1 | THROTTLE CAM | F458192 | SS |
|
$0.00 | $0.00 | 1 | |
| 65 | F433209-1 | STUD, THROTTLE CAM | NLA |
|
$0.00 | $0.00 | 1 | ||
| 66 | 817741A1 | VALVE, CYLINDER DRAIN | F213740-1 | SS |
|
$0.00 | $0.00 | 2 |
