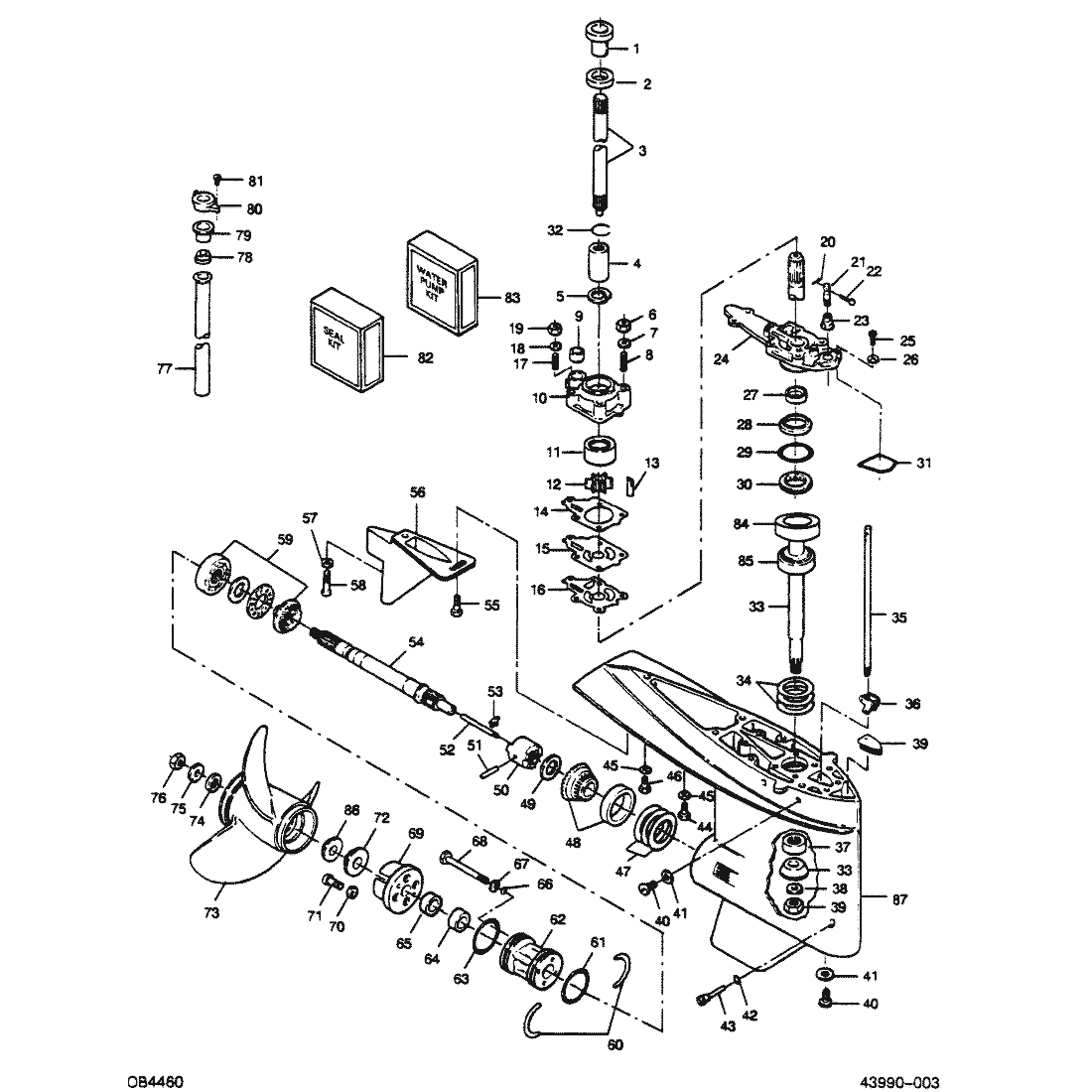

Ref # Current
Part Nbr		 Description Superceded
From		 Status Notes List
Price		 Online
Price		 Quan
Used		 Order
Quan
1 819427 SEAL, DRIVESHAFT SPLINE F438129 SS $3.70 $3.61 1
2 F438271 RETAINER, DRIVESHAFT SPLINE SEAL NLA $0.00 $0.00 1
3 F694128 DRIVESHAFT, UPPER (20 INCH MODELS) NLA $0.00 $0.00 1
- F693128 DRIVESHAFT, UPPER (25 INCH MODELS) NLA $0.00 $0.00 1
4 F694125 COUPLING, DRIVESHAFT NLA $0.00 $0.00 1
5 F694736 SEAL NLA $0.00 $0.00 1
6 826709109 NUT, 1/4 - 28 F7061 SS $3.60 $3.52 4
7 8M0204649 WASHER F2012 SS $1.20 $1.18 4
8 306671 STUD F694210 SS $10.19 $9.95 4
9 F694735-1 SEAL, WATER LINE ACT $8.01 $7.81 1
10 803757T BODY, WATER PUMP F694060-1 SS $41.92 $41.16 1
11 F694564-1 INSERT ACT $30.24 $29.71 1
12 89984T3 IMPELLER F694065 SS $45.99 $45.24 1
13 F694498 KEY ACT $20.70 $20.19 1
14 F694031 GASKET ACT $3.70 $3.61 1
15 F699562 PLATE ACT $22.33 $21.93 1
16 F694830 GASKET ACT $2.70 $2.64 1
17 F694211 STUD NLA $0.00 $0.00 1
18 F8143 WASHER NLA $0.00 $0.00 1
19 8M0204718 NUT, 10 - 32 F7062 SS $4.70 $4.59 1
20 F1015 COTTER PIN ACT $1.20 $1.18 1
21 F694615 ROD, INTERMEDIATE SHIFT NLA $0.00 $0.00 1
22 F85372 PIN ACT $6.40 $6.25 1
23 FK721706 BELLOWS F694618 SS $0.00 $0.00 1
24 FK721706 COVER, GEAR HOUSING W/SEAL F2A694706 SS $0.00 $0.00 1
25 28668 SCREW, 1/4 - 20 X 7/8 F1999 SS $1.70 $1.66 4
26 26992 WASHER F8083 SS $1.20 $1.18 4
27 819740 SEAL F694307 SS $8.80 $8.59 1
28 89238 SEAL F694305 SS $21.17 $20.79 1
29 8M0142854 SEAL F74305 SS $1.10 $1.08 1
30 8245191 RETAINER F694961 SS $7.00 $6.83 1
31 8M0142854 O-RING F74305 SS $1.10 $1.08 1
32 818826 RING, RETAINING F695930 SS $0.00 $0.00 1
33 FS707628 DRIVESHAFT, LOWER W/ PINION GEAR AND BEARING FS694628 SS $0.00 $0.00 1
34 F9280 SHIM, (.002) NLA $0.00 $0.00 A/R
- F9279 SHIM, (.003) NLA $0.00 $0.00 A/R
- F9278 SHIM, (.005) NLA $0.00 $0.00 A/R
- F9277 SHIM, (.010) NLA $0.00 $0.00 A/R
35 F694705 ROD, LOWER SHIFT NLA $0.00 $0.00 1
36 FA84621-1 ARM NLA $0.00 $0.00 1
37 42647A1 BEARING F694057 SS $66.00 $63.48 1
38 92721 WASHER F694186 SS $1.50 $1.47 1
39 892827 PLUG, PITOT F694226 SS $0.00 $0.00 1
40 79953Q04 PLUG F50109 SS $7.49 $7.31 3
41 191833 WASHER F8077 SS $1.45 $1.42 3
42 25007 SEAL F498618 SS $1.50 $1.47 1
43 826374 PIN F498891 SS $0.00 $0.00 1
44 F1491 SCREW, 5/16 - 18 X 3-1/4 NLA $0.00 $0.00 6
45 53166 WASHER F8096 SS $1.80 $1.76 7
46 F1858 SCREW, 5/16 - 18 X 1 NLA $0.00 $0.00 1
47 F9284 SHIM (.002) NLA $0.00 $0.00 A/R
- F9283 SHIM (.003) NLA $0.00 $0.00 A/R
- F9282 SHIM (.005) NLA $0.00 $0.00 A/R
- F9281 SHIM (.010) NLA $0.00 $0.00 A/R
48 816434A5 GEAR, FORWARD W/BEARING AND CUP FS694023 SS $0.00 $0.00 1
49 F2290 SPACER (.060) NLA $6.16 $6.01 A/R
- F2291 SPACER (.070) NLA $6.16 $6.01 A/R
- F2292 SPACER (.080) NLA $6.16 $6.01 A/R
50 816433T CLUTCH F694521 SS $363.08 $341.92 1
51 8M0029889 SPRING PIN F1713 SS $0.00 $0.00 1
52 F84871-1 SHIFT PIN NLA $0.00 $0.00 1
53 F90619-2 YOKE ACT $61.25 $58.92 1
54 FA694098 SHAFT, PROPELLER NLA $0.00 $0.00 1
55 826377 RETAINER SNOUT F438930 SS $30.43 $29.87 1
56 F523116-4 SNOUT, EXHAUST F523116-1 SS $0.00 $0.00 1
57 F1856 WASHER NLA $0.00 $0.00 1
58 90073 SCREW, 5/16 - 18 X 1 F1994 SS $1.82 $1.79 1
59 803843T GEAR, REVERSE W/BEARING F2A694662 SS $0.00 $0.00 1
60 F523411 RETAINING RING NLA $0.00 $0.00 1
61 32507 SEAL F84305 SS $5.20 $5.08 1
62 803940T SPOOL, PROPELLER SHAFT W/BEARING AND SEALS F2A523239 SS $0.00 $0.00 1
63 F24278 SEAL NLA $0.00 $0.00 1
64 30956T BEARING F523058 SS $19.23 $18.85 1
65 F506118-1 SEAL ACT $29.58 $29.05 1
66 627021 SEAL F50342-1 SS $1.69 $1.65 4
67 8M0207778 WASHER F1907 SS $10.10 $9.85 4
68 F1885 SCREW, 5/16 - 18 X 4-1/4 NLA $0.00 $0.00 4
69 FA523485 ANODE, ANTI-CORROSION NLA $0.00 $0.00 1
70 26992 LOCKWASHER F8083 SS $1.20 $1.18 2
71 F1112 SCREW, 1/4 - 20 X 7/8 NLA $0.00 $0.00 2
72 F523099-1 SPACER, PROPELLER NLA $0.00 $0.00 1
74 F523282 WASHER, PROP SPLINE NLA $0.00 $0.00 1
75 F8167 WASHER NLA $0.00 $0.00 1
76 F7048 STOP NUT ACT $13.01 $12.77 1
77 F523244 INLET WATER LINE (20 INCH MODELS) NLA $0.00 $0.00 1
- F500244 INLET WATER LINE (25 INCH MODELS) NLA $0.00 $0.00 1
78 817491 GROMMET, WATER LINE F523899 SS $4.60 $4.49 1
79 F84342 SEAL, WATER LINE NLA $0.00 $0.00 1
80 F692117 BRACKET, WATER LINE F85117 SS $0.00 $0.00 1
81 28636 SCREW, 1/4 - 20 X 3/4 S.S. F1705 SS $1.80 $1.76 2
82 FK1203-1 SEAL KIT FK1203 SS $114.00 $107.36 1
83 FK1202-1 WATER PUMP KIT FK1202 SS $118.25 $111.36 1
84 35924T1 CUP, BEARING F694056 NLA $27.47 $27.21 1
85 35924T1 BEARING (CONE) F694058 SS $27.47 $27.21 1
86 F694099 SPACER F694299 SS $0.00 $0.00 1
87 817925A5 GEAR HOUSING FA694054 SS $0.00 $0.00 1
- 817925A5 GEAR HOUSING COMPLETE FC694054 SS $0.00 $0.00 1
