Ref # Current
Part Nbr		 Description Superceded
From		 Status Notes List
Price		 Online
Price		 Quan
Used		 Order
Quan

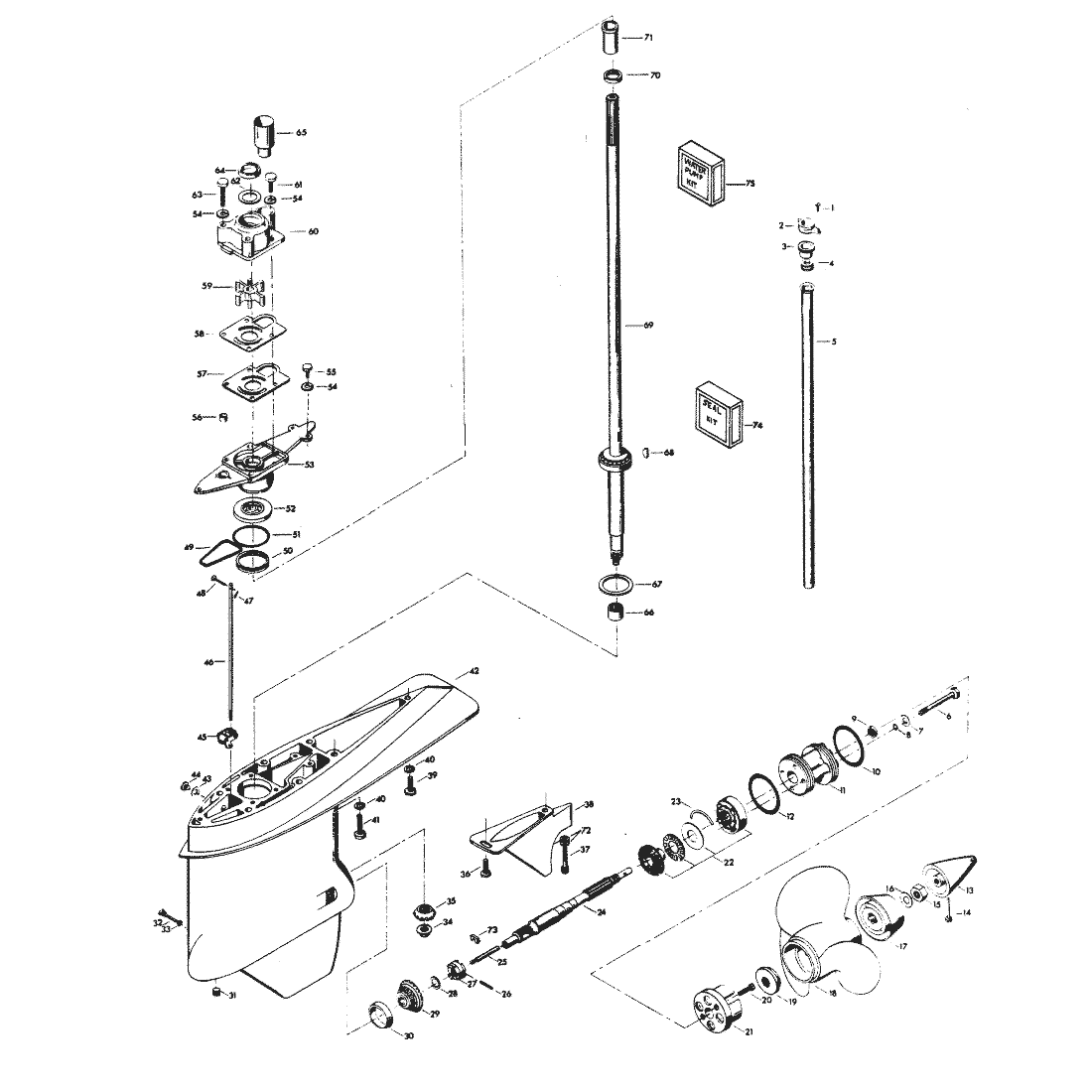

1 28636 HEX CAP SCREW, 1/4 - 20 X 3/4 F1705 SS $1.80 $1.76 2
2 F692117 BRACKET, WATER LINE F85117 SS $0.00 $0.00 1
3 F84342 SEAL, INLET WATER LINE UPPER NLA $0.00 $0.00 1
4 817491 GROMMET, WATER LINE F523899 SS $4.60 $4.49 1
5 F523244 INLET WATER LINE NLA $0.00 $0.00 1
6 F1885 HEX CAP SCREW, 5/16 - 18 X 4 1/4 NLA $0.00 $0.00 4
7 8M0207778 PLAIN WASHER F1907 SS $10.10 $9.85 4
8 627021 SEAL, BEARING CAGE BOLTS F50342-1 SS $1.69 $1.65 4
9 F506118-1 SEAL, PROPELLER SHAFT F506118 SS $29.58 $29.05 1
10 F24278 SEAL, "O" RING PROPELLER SHAFT SPOOL NLA $0.00 $0.00 1
11 803940T SPOOL, PROPELLER SHAFT BEARING W/SEALS F2A523239 SS $0.00 $0.00 1
12 32507 SEAL, PROPELLER SHAFT BEARING SPOOL F84304 SS $5.20 $5.08 1
13 F523094-2 PROPELLER NUT NLA $0.00 $0.00 1
14 826374 PIN, PROPELLER NUT RETAINING F498891 SS $0.00 $0.00 1
15 F7048 STOP NUT F1788 SS $13.01 $12.77 1
16 F1866 PLAIN WASHER ACT $2.82 $2.77 1
17 F532299 WASHER, PROPELLER SPLINE NLA $0.00 $0.00 1
18 FP686-4 PROPELLER (ACCESSORY ITEM) FP524 SS $0.00 $0.00 1
19 F523099-1 SPACER, PROPELLER NLA $0.00 $0.00 1
20 F1577 FILL HD SCREW, 1/4 - 20 X 3/4 NLA $0.00 $0.00 2
21 FA523485 ANTI-CORROSION ANODE NLA $0.00 $0.00 1
22 F2A498662 BEVEL GEAR, REAR W/BEARING CAGE, SPACER AND BEARING NLA $0.00 $0.00 1
23 F523411 RETAINING RING NLA $0.00 $0.00 2
24 817962A2 PROPELLER SHAFT FA523098 SS $0.00 $0.00 1
25 F84871-1 PIN, GEAR SHIFT NLA $0.00 $0.00 1
26 8M0029889 SPRING PIN F1713 SS $0.00 $0.00 1
27 816433T CLUTCH F84521-1 SS $363.08 $341.92 1
28 F1936 SPACER, BEVEL GEAR FRONT .059 NLA $0.00 $0.00 A/R
- F1937 SPACER, BEVEL GEAR FRONT .062 NLA $0.00 $0.00 A/R
- F1938 SPACER, BEVEL GEAR FRONT .065 NLA $0.00 $0.00 A/R
- F1939 SPACER, BEVEL GEAR FRONT .068 NLA $0.00 $0.00 A/R
- F1940 SPACER, BEVEL GEAR FRONT .071 NLA $0.00 $0.00 A/R
- F1941 SPACER, BEVEL GEAR FRONT .074 NLA $0.00 $0.00 A/R
- F1942 SPACER, BEVEL GEAR FRONT .077 NLA $0.00 $0.00 A/R
- F2113 SPACER, BEVEL GEAR FRONT .080 NLA $0.00 $0.00 A/R
- F2114 SPACER, BEVEL GEAR FRONT .083 NLA $0.00 $0.00 A/R
- F2115 SPACER, BEVEL GEAR FRONT .086 NLA $0.00 $0.00 A/R
- F2116 SPACER, BEVEL GEAR FRONT .089 NLA $0.00 $0.00 A/R
- F2121 SPACER, BEVEL GEAR FRONT .057 NLA $0.00 $0.00 A/R
- F2122 SPACER, BEVEL GEAR FRONT .054 NLA $0.00 $0.00 A/R
29 818062A3 BEVEL GEAR FRONT W/BEARING F2A498023 SS $0.00 $0.00 1
30 820456A1 BEARING CUP F523813 NLA $0.00 $0.00 1
31 47945 PLUG, GEAR HOUSING F19109 SS $1.94 $1.90 1
32 826374 PIN, GEAR SHIFT ARM F498891 SS $0.00 $0.00 1
33 25007 SEAL F498618 SS $1.50 $1.47 1
34 F523188-1 NUT, BEVEL PINION RETAINING F523188 SS $22.54 $22.00 1
35 817830A2 BEVEL PINION GEAR W/CRUSH RING AND SHIMS FA498266 SS $0.00 $0.00 1
36 826377 RETAINER, SNOUT F438930 SS $30.43 $29.87 1
37 90073 HEX SOCKET HD CAP SCREW, 5/16 - 18 X 1 F1994 SS $1.82 $1.79 1
38 F523116-4 EXHAUST SNOUT F523116 SS $0.00 $0.00 1
39 F1858 HEX CAP SCREW, 5/16 - 18 X 1 NLA $0.00 $0.00 1
40 53166 SPRING LOCKWASHER F8096 SS $1.80 $1.76 7
41 F1491 HEX CAP SCREW, 5/16 - 18 X 3 1/4 NLA $0.00 $0.00 6
42 FA523054 GEAR HOUSING NLA $0.00 $0.00 1
- 819196A3 GEAR HOUSING COMPLETE FC550054 SS $0.00 $0.00 1
43 191833 WASHER, GEAR HOUSING PLUG F8077 SS $1.45 $1.42 2
44 79953Q04 PLUG, GEAR HOUSING F50109 SS $7.49 $7.31 2
45 FA84621-1 COUPLING, GEAR SHIFT ARM W/BUSHING NLA $0.00 $0.00 1
46 F523705-1 GEAR SHIFT ROD LOWER F523705 SS $0.00 $0.00 1
47 F1015 COTTER PIN ACT $1.20 $1.18 1
48 F85372 PIN, GEAR SHIFT ROD LOWER ACT $6.40 $6.25 1
49 54030 SEAL, "O" RING - GEAR HOUSING COVER F523555 SS $5.90 $5.76 1
50 F523961 CRUSH RING ACT $58.17 $55.95 1
51 8M0142854 SEAL, DRIVESHAFT BEARING CAGE F74305 SS $1.10 $1.08 1
52 F506118-1 SEAL, DRIVESHAFT F506118 SS $29.58 $29.05 1
53 F2A550706 GEAR HOUSING COVER W/SEAL NLA $0.00 $0.00 1
54 26992 SPRING LOCKWASHER F8083 SS $1.20 $1.18 7
55 F2008 HEX CAP SCREW, 1/4 - 20 X 7/8 F1534 SS $0.00 $0.00 3
56 817472 SEAL, GEAR SHIFT ROD F338618-1 SS $9.00 $8.78 1
57 F523031 GASKET, WATER PUMP ACT $4.20 $4.10 1
58 F523562 WATER PUMP BACK PLATE ACT $18.80 $18.34 1
59 803630T WATER PUMP IMPELLER F523065 SS $0.00 $0.00 1
60 817853T1 WATER PUMP BODY W/DRIVESHAFT SEAL, DISC AND WATER LINE SEAL 817853A1 SS $135.08 $127.21 1
61 8M0149604 HEX CAP SCREW, 1/4 - 20 X 1 5/8 F1990 SS $5.30 $5.17 2
62 F480388 DISC, WATER PUMP LOCATING ACT $5.80 $5.66 1
63 F1425 HEX CAP SCREW, 1/4 - 20 X 2 5/8 ACT $4.20 $4.10 2
64 F351307 SEAL, WATER PUMP ACT $23.58 $23.15 1
65 FA523735 SEAL, INLET WATER LINE LOWER ACT $9.70 $9.46 1
66 F523057 BEARING, DRIVESHAFT LOWER NLA $0.00 $0.00 1
67 F9106 SHIM, DRIVESHAFT BEARING UPPER .003 - BRASS NLA $0.00 $0.00 A/R
- F9095 SHIM, DRIVESHAFT BEARING UPPER .005 - SILVER NLA $0.00 $0.00 A/R
- F9097 SHIM, DRIVESHAFT BEARING UPPER .010 - BLACK NLA $0.00 $0.00 A/R
68 F523498 DRIVE KEY, WATER PUMP ACT $13.90 $13.56 1
69 817967A6 DRIVESHAFT W/BEARING, SHIMS AND CRUSH RING FK550128 SS $0.00 $0.00 1
70 F438271 RETAINER, CRANKSHAFT SPLINE SEAL NLA $0.00 $0.00 1
71 819427 SEAL, DRIVESHAFT SPLINE F438129 SS $3.70 $3.61 1
72 F1836 PLAIN WASHER NLA $0.00 $0.00 2
73 F90619-2 YOKE F90619-1 SS $61.25 $58.92 1
74 FK1063-2 SEAL KIT FK1063-1 SS $91.39 $87.91 1
- 627021 BEARING CAGE BOLT SEAL F50342-1 SS $1.69 $1.65 4
- F506118-1 PROPELLER SHAFT SEAL F506118 SS $29.58 $29.05 2
- F24278 PROPELLER SHAFT SPOOL SEAL NLA $0.00 $0.00 1
- 32507 PROPELLER SHAFT SPOOL SEAL F84305 SS $5.20 $5.08 1
- 25007 GEAR SHIFT ARM PIN SEAL F498618 SS $1.50 $1.47 1
- 191833 WASHER F8077 SS $1.45 $1.42 2
- 54030 GEAR HOUSING COVER SEAL F523555 SS $5.90 $5.76 1
- 8M0142854 GEAR HOUSING COVER SEAL F74305 SS $1.10 $1.08 1
- F84307-1 DRIVESHAFT SEAL NLA $0.00 $0.00 1
- 817472 GEAR SHIFT ROD SEAL F338618-1 SS $9.00 $8.78 1
75 FK1069 WATER PUMP KIT NLA $0.00 $0.00 1
- F1425 HEX CAP SCREW, 1/4 - 20 X 5/8 ACT $4.20 $4.10 2
- 8M0149604 HEX CAP SCREW F1990 SS $5.30 $5.17 2
- 26992 SPRING LOCKWASHER F8083 SS $1.20 $1.18 4
- F523031 GASKET, WATER PUMP ACT $4.20 $4.10 1
- 803630T IMPELLER F523065 SS $0.00 $0.00 1
- F523498 KEY ACT $13.90 $13.56 1
- F523562 PLATE, WATER PUMP ACT $18.80 $18.34 1
- 817853T1 WATER PUMP 817853A1 SS $135.08 $127.21 1
