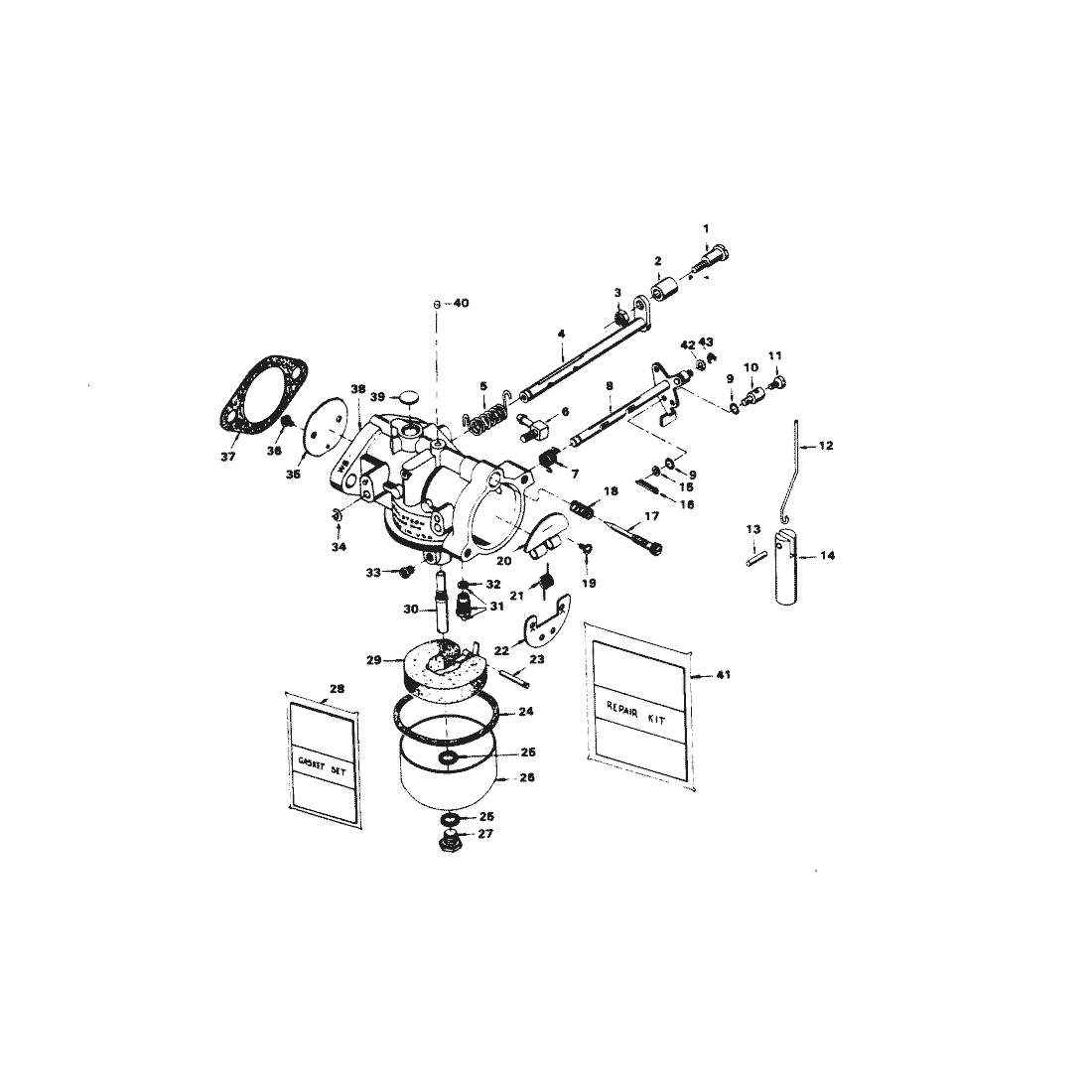

| Ref # | Current Part Nbr | Description | Superceded From | Status | Notes | List Price | Online Price | Quan Used | Order Quan |
|---|---|---|---|---|---|---|---|---|---|
| 1 | 830110 | SHAFT, THROTTLE ROLLER | F333316 | SS |  | $5.49 | $5.37 | 1 | |
| 2 | 819225 | ROLLER, THROTTLE CAM FOLLOWER | F92759 | SS | | $1.16 | $1.14 | 1 | |
| 3 | 8267094 | LOCK NUT | F1997 | SS | | $1.64 | $1.62 | 1 | |
| 4 | FO17907 | THROTTLE SHAFT AND LEVER | NLA | | $12.34 | $12.12 | 1 | ||
| 5 | FO16563 | THROTTLE SHAFT RETURN SPRING | NLA | | $24.15 | $23.52 | 1 | ||
| 6 | F84314-2 | ELBOW | NLA | | $8.06 | $7.86 | 1 | ||
| 7 | FO16397 | CHOKE SHAFT RETURN SPRING | NLA | | $0.74 | $0.73 | 1 | ||
| 8 | FO16562 | CHOKE SHAFT AND LEVER | NLA | | $13.39 | $13.13 | 1 | ||
| 9 | 68211 | SEAL, CHOKE ARM SWIVEL (ALT. START) | F184579 | SS | | $1.30 | $1.27 | 2 | |
| 10 | F184033-1 | SWIVEL, CHOKE ARM (ALT. START) | NLA | | $6.92 | $6.77 | 1 | ||
| 11 | F1059 | FILL HD SCREW 6 - 32 X 1/4 (ALT. START) | NLA | | $0.56 | $0.55 | 1 | ||
| 12 | F460925 | ROD (ALT. START) | NLA | | $6.72 | $6.59 | 1 | ||
| 13 | F2033 | GROOVE PIN (ALT. START) | NLA | | $0.43 | $0.43 | 1 | ||
| 14 | F391926-1 | PLUNGER (ALT. START) | NLA | | $29.23 | $28.73 | 1 | ||
| 15 | 27882 | PLAIN WASHER (ALT. START) | F8088 | SS | | $1.16 | $1.14 | 1 | |
| 16 | 26953 | COTTER PIN (ALT. START) | F1014 | SS | | $4.00 | $3.91 | 1 | |
| 17 | FO14166 | IDLE MIXTURE SCREW | ACT | $12.60 | $12.29 | 1 | |||
| 18 | 27160 | IDLE MIXTURE SCREW SPRING | FO11103 | SS | | $3.90 | $3.81 | 1 | |
| 19 | 803176 | CHOKE SHUTTER RETAINING SCREW AND LOCKWASHER | FO10280 | SS | | $3.50 | $3.42 | 2 | |
| 20 | FO12251 | CHOKE RELIEF VALVE | NLA | | $2.47 | $2.42 | 1 | ||
| 21 | F10296 | CHOKE RELIEF VALVE SPRING | FO10883 | SS | | $4.10 | $4.00 | 1 | |
| 22 | FO12250 | CHOKE SHUTTER | NLA | | $0.00 | $0.00 | 1 | ||
| 23 | FO13944 | FLOAT LEVER PIN | ACT | $5.40 | $5.27 | 1 | |||
| 24 | FO15623 | FUEL BOWL GASKET | ACT | $4.10 | $4.00 | 1 | |||
| 25 | FO2510 | FUEL BOWL RETAINING SCREW GASKET | ACT | $2.30 | $2.25 | 2 | |||
| 26 | F10333 | FUEL BOWL | FO13552 | SS | | $32.33 | $31.75 | 1 | |
| 27 | 5128 | FUEL BOWL RETAINING SCREW | FO13945 | SS | | $5.23 | $5.09 | 1 | |
| 28 | FK10000 | GASKET SET | FK10006 | SS | | $1.75 | $1.71 | 1 | |
| 29 | 891730A01 | FLOAT | FO13554 | SS | | $36.17 | $35.52 | 1 | |
| 30 | FO15213 | MAIN NOZZLE | NLA | | $11.60 | $11.40 | 1 | ||
| 31 | FO10790 | INLET NEEDLE, SEAT AND GASKET | NLA | | $11.19 | $11.00 | 1 | ||
| 32 | FO10165 | INLET SEAT GASKET | NLA | | $1.26 | $1.23 | 1 | ||
| 33 | 4215 | MAIN FUEL JET STD. .066 SEAL LEVEL - 1250 FT. | FO14188 | SS | | $16.50 | $16.09 | 1 | |
| - | 4216 | MAIN FUEL JET OPT. .064 1250-3750 FT. | FO14108 | SS | | $3.90 | $3.81 | - | |
| - | 4217 | MAIN FUEL JET OPT. .062 FT. 3750-6250 FT. | FO14187 | SS | | $3.90 | $3.81 | - | |
| - | 6487 | MAIN FUEL JET OPT. .060 6250-8250 FT. | FO14186 | SS | | $14.80 | $14.44 | - | |
| 34 | FO16620 | E-RING, THROTTLE SHAFT RETAINING | NLA | | $6.93 | $6.77 | 1 | ||
| 35 | FO17639 | THROTTLE SHUTTER | NLA | | $1.42 | $1.40 | 1 | ||
| 36 | 803176 | THROTTLE SHUTTER RETAINING SCREW AND LOCKWASHER | FO8942 | SS | | $3.50 | $3.42 | 2 | |
| 37 | 828925 | FLANGE GASKET | F40906-1 | SS | | $2.30 | $2.25 | 1 | |
| 38 | FK602061 | CARBURETOR COMPLETE (WB19D) | F461061-3 | SS | | $97.97 | $94.23 | 1 | |
| 39 | F10153 | BODY CHANNEL WELCH PLUG | FO4326 | SS | | $2.30 | $2.25 | 1 | |
| 40 | FO10588 | BODY CHANNEL CUP PLUG | ACT | $7.20 | $7.03 | 1 | |||
| 41 | FK10027 | REPAIR PARTS KIT | F10027 | SS | | $37.01 | $36.06 | 1 | |
| 42 | 89302 | PLAIN WASHER | F8011 | SS | | $1.70 | $1.66 | 1 | |
| 43 | 21058 | RETAINER, CHOKE ROD FOR MANUAL START MODELS | F90807 | SS | | $0.82 | $0.81 | 1 |
