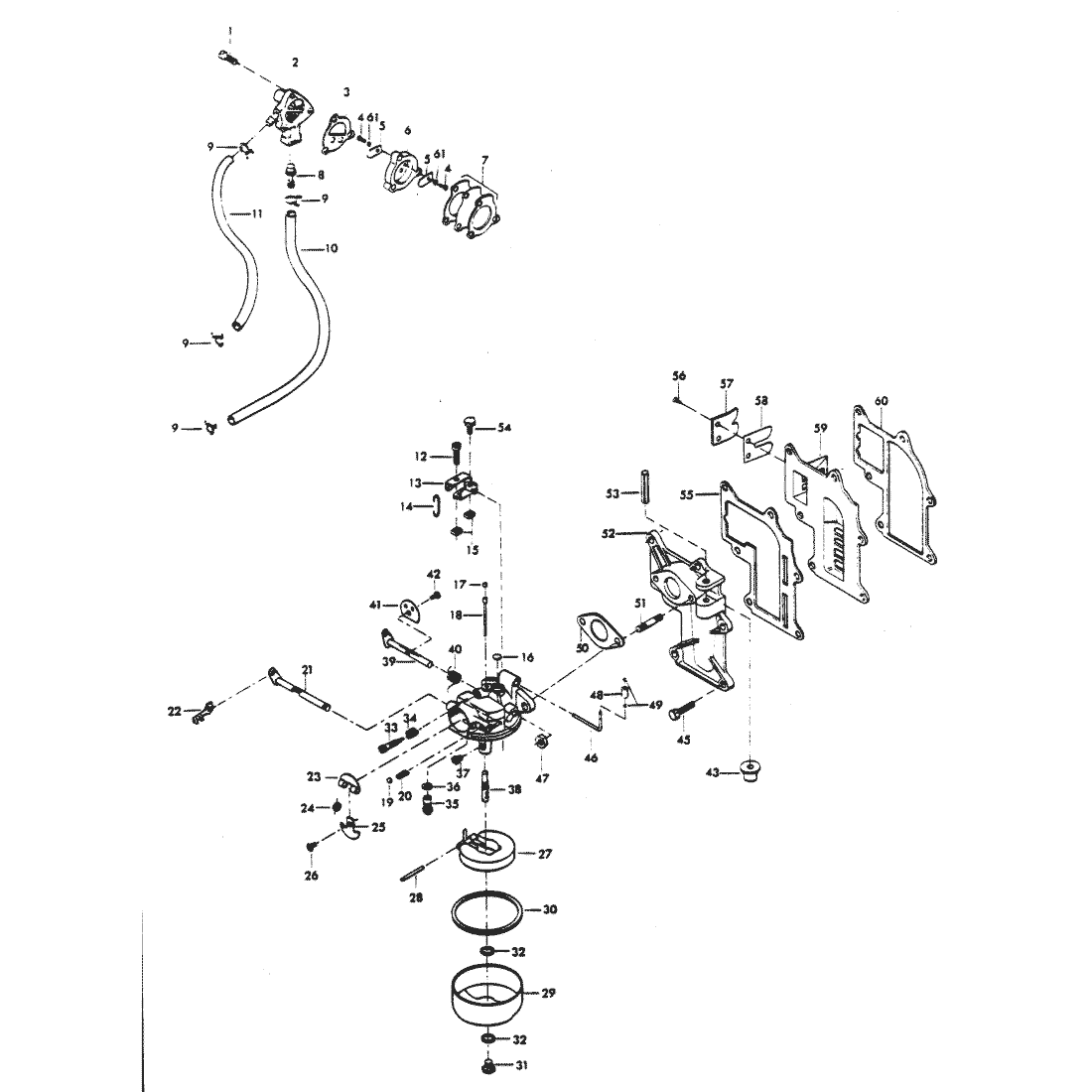

Ref # Current
Part Nbr		 Description Superceded
From		 Status Notes List
Price		 Online
Price		 Quan
Used		 Order
Quan
1 F1069 FILL HD SCREW, 10 - 24 X 1 1/16 NLA $0.71 $0.70 3
2 819993T2 FUEL PUMP COVER F901746-2 SS $0.00 $0.00 1
3 F24748-2 GASKET, FUEL PUMP ACT $4.00 $3.91 1
4 F1286 PAN HD SCREW, 4 - 40 X 3/16 NLA $0.00 $0.00 2
5 F18160-3 REED FUEL PUMP F18160-1 SS $10.19 $9.95 2
6 F2A24757 FUEL PUMP REED PLATE W/REEDS AND SCREWS FA24757-3 SS $0.00 $0.00 1
7 818043A1 FUEL PUMP DIAPHRAGM W/GASKETS ACT $12.50 $12.19 1
8 F901811 FUEL PUMP FILTER ACT $14.40 $14.05 1
9 827255 HOSE CLAMP F2706772 SS $1.93 $1.89 4
10 819398T FUEL LINE F40253 SS $190.08 $179.01 1
11 819398T FUEL LINE W/CLAMPS FA24754-1 SS $190.08 $179.01 1
12 F1834 FILL HD SCREW, 10 - 24 X 7/8 NLA $0.00 $0.00 1
13 817754A1 ARM, CARBURETOR FOLLOWER NLA $0.00 $0.00 1
14 F66193 THROTTLE LINK NLA $0.00 $0.00 1
15 F1365 SQUARE NUT, 10 - 24 NLA $0.00 $0.00 2
16 20011 BODY CHANNEL WELCH PLUG FO2531 SS $5.10 $4.98 1
17 FO10588 BODY CHANNEL CUP PLUG ACT $7.50 $7.32 1
19 FO4784 CHOKE FRICTION BALL NLA $0.00 $0.00 1
20 FO8805 CHOKE FRICTION SPRING NLA $0.00 $0.00 1
21 FO15736 CHOKE SHAFT AND LEVER NLA $0.00 $0.00 1
22 830569 RETAINER, CHOKE ROD F341384 SS $0.00 $0.00 1
23 FO15368 CHOKE RELIEF VALVE NLA $0.00 $0.00 1
24 FO15783 CHOKE RELIEF VALVE SPRING NLA $0.00 $0.00 1
25 FO15367 CHOKE SHUTTER NLA $0.00 $0.00 1
26 803176 CHOKE SHUTTER RETAINER SCREW AND LOCKWASHER FO10280 SS $3.60 $3.52 1
27 891730A01 FLOAT FO13554 SS $37.58 $36.91 1
28 FO13944 FLOAT LEVER PIN ACT $5.60 $5.47 1
29 FO15366 FUEL BOWL ACT $35.58 $34.94 1
30 FO15623 FUEL BOWL GASKET ACT $4.30 $4.20 1
31 5128 FUEL BOWL RETAINING SCREW FO13945 SS $0.00 $0.00 1
32 FO2510 FUEL BOWL RETAINING SCREW GASKET ACT $2.39 $2.33 2
33 FO15520 IDLE MIXTURE SCREW ACT $24.42 $23.98 1
34 27160 IDLE MIXTURE SCREW SPRING FO11103 SS $4.10 $4.00 1
35 FO10790 INLET NEEDLE, SEAT AND GASKET NLA $0.00 $0.00 1
36 FO10165 INLET SEAT GASKET NLA $0.00 $0.00 1
38 FO15525 MAIN NOZZLE NLA $0.00 $0.00 1
40 FO15526 THROTTLE SHAFT RETURN SPRING NLA $0.00 $0.00 1
43 F487435 PULLEY, STARTER ROPE NLA $0.00 $0.00 1
45 F1914 HEX HD SCREW, 1/4 - 20 X 3/4 NLA $0.00 $0.00 6
46 F286316 THROTTLE CAM FOLLOWER NLA $0.00 $0.00 1
47 20890 HEX NUT, 1/4 - 20 F1490 SS $1.70 $1.66 2
48 F78318 ROLLER, THROTTLE CAM FOLLOWER NLA $0.00 $0.00 1
49 F78410 RETAINER NLA $0.00 $0.00 2
50 F18906 CARBURETOR GASKET ACT $4.50 $4.39 1
51 826622 STUD, CARBURETOR F2788004 SS $0.00 $0.00 2
52 FA424167 MANIFOLD W/STUDS AND PULLEY F2A424167 SS $0.00 $0.00 1
53 34353 SPRING PIN F1867 SS $2.60 $2.54 1
54 F1912 HEX HD SCREW, 10 - 24 X 1/2 NLA $0.00 $0.00 1
55 F715168 GASKET, MANIFOLD F424168-1 SS $0.00 $0.00 1
56 819074 ------ HD SCREW W/LOCKWASHER, 6 - 32 X 1/4 F1298 SS $0.00 $0.00 8
57 F424161 REED STOP NLA $0.00 $0.00 4
58 F31160-2 REED F31160-1 SS $0.00 $0.00 4
59 FA424158 REED PLATE W/REEDS, STOPS AND SCREWS NLA $0.00 $0.00 1
60 F286159-1 GASKET, REED PLATE NLA $0.00 $0.00 1
61 18552 PLAIN WASHER F8003 SS $0.00 $0.00 2
- FK10000 GASKET SET, CARBURETOR (NOT SHOWN) F10006 SS $0.00 $0.00 1
- NSS REPAIR PARTS KIT, CARBURETOR (NOT SHOWN) $0.00 $0.00 1
